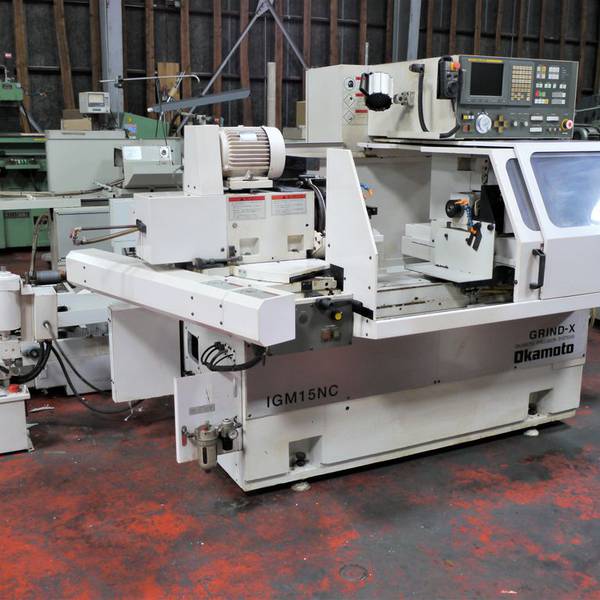

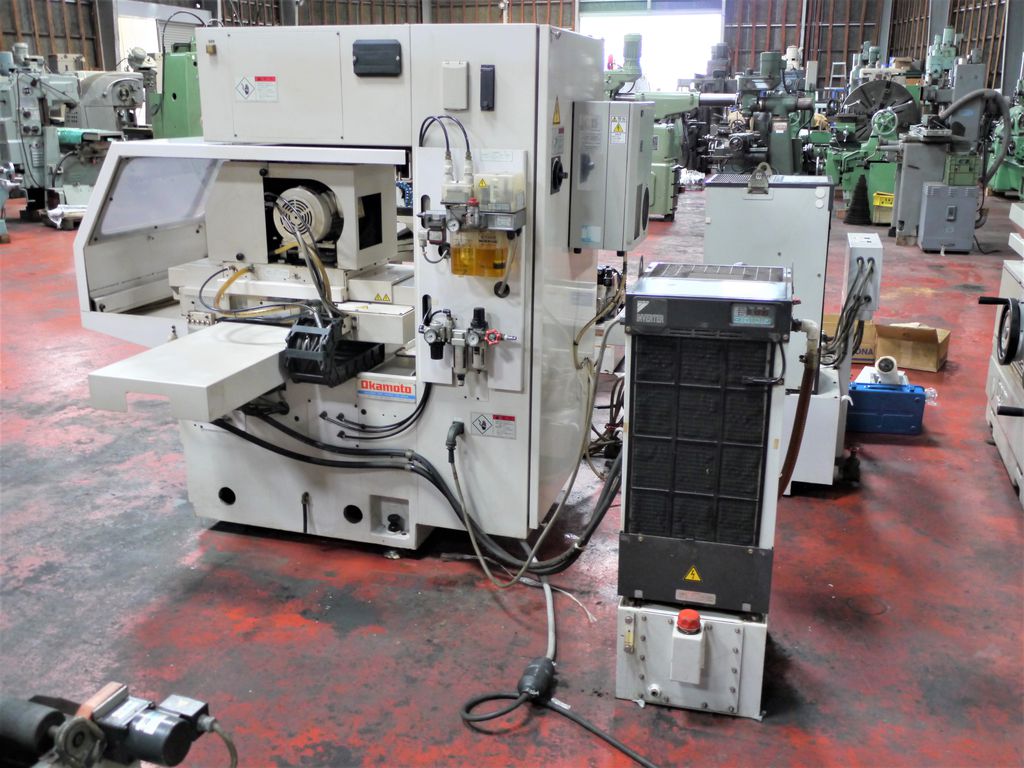

Specification

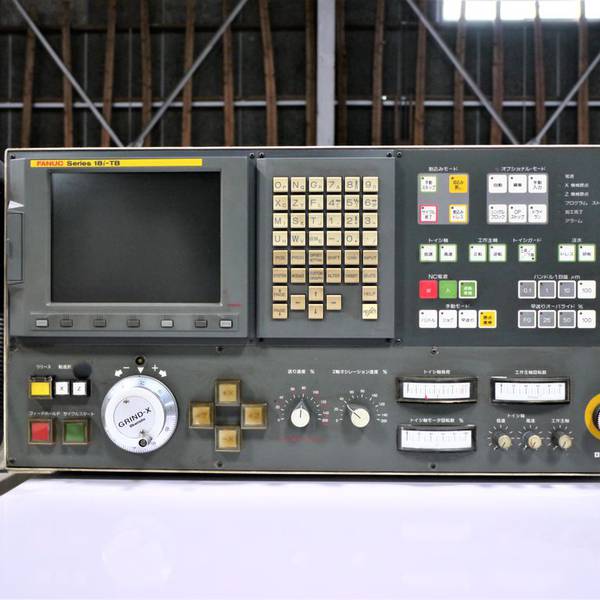

◆FANUC18i-TB
◆Grinding hole diameter: φ6-150
◆Grinding stroke:125
◆Swing on the table:φ600
◆Minimum setting unit:0.0001mm
◆Spindle taper hole:MT No.6
◆Through hole diameter:φ50mm
◆Spindle speed:100～850min-1
◆Distance from the bottom of the frame to the center of the chuck:1000mm
◆Required area:W3215×D1990×H1945mm
◆Body weight:2300kg
✤If there is a discrepancy between the specifications and the actual product, the actual product will prevail.
