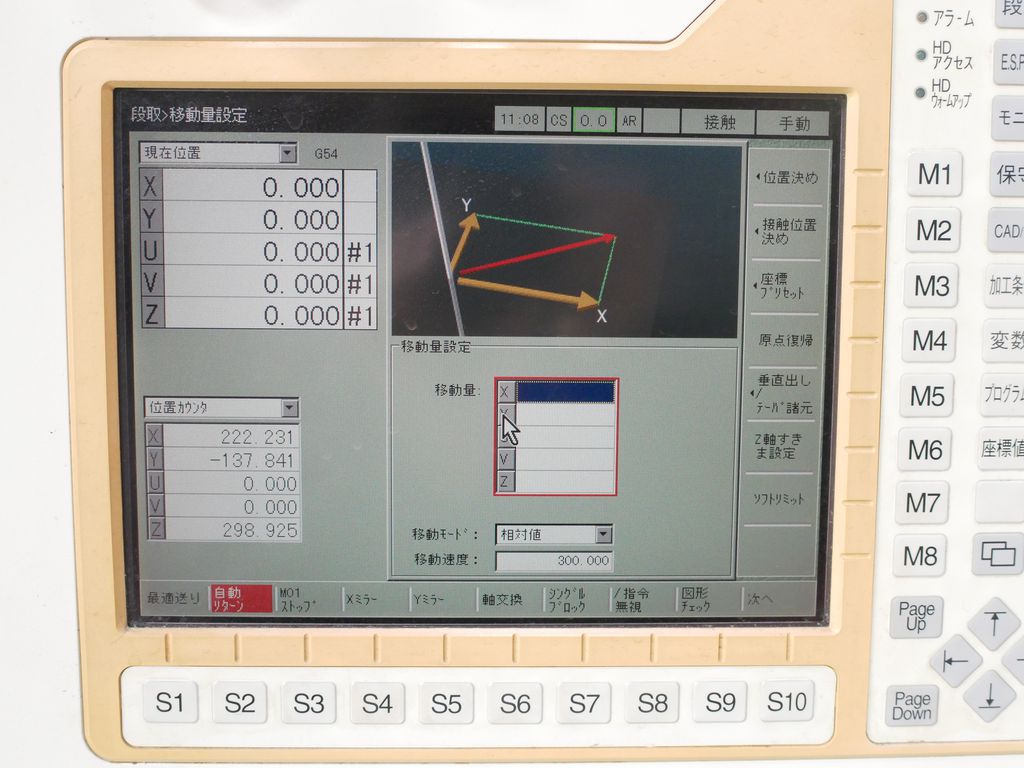

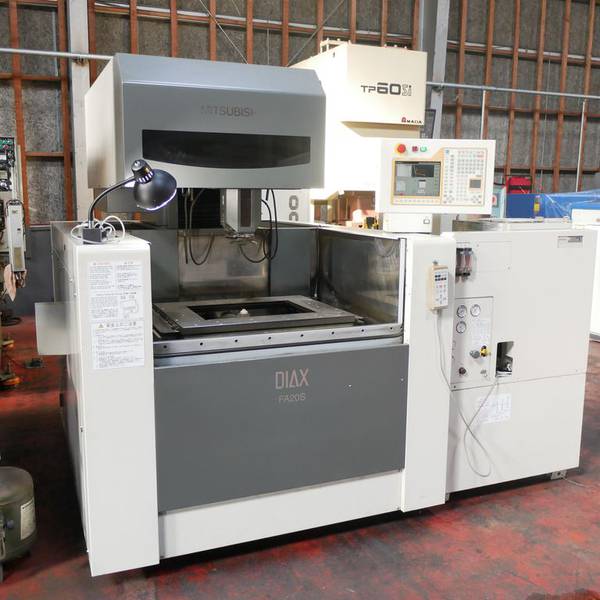

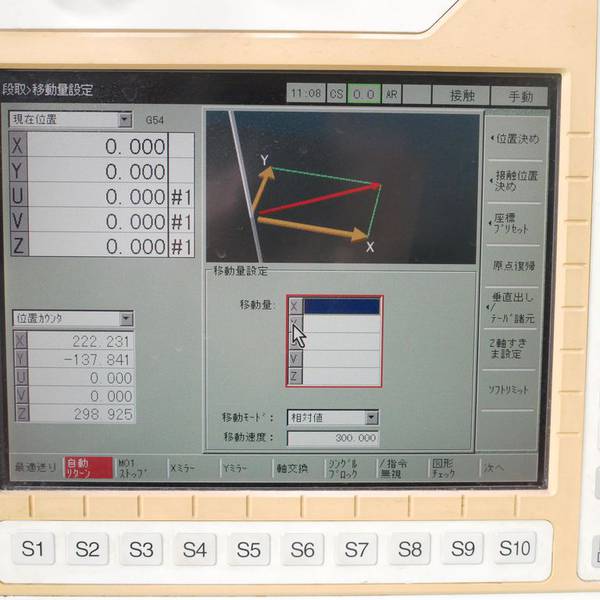

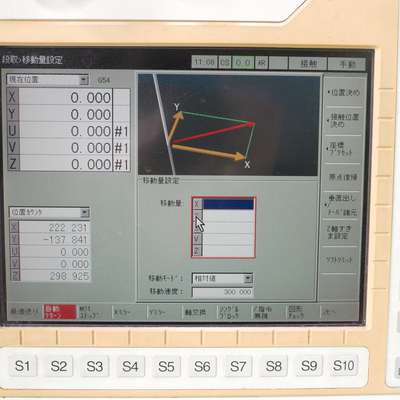

◆Controller: W21FAS-2
◆Maximum workpiece dimensions (W x D x H): 1050 x 800 x 295 mm
◆Maximum workpiece weight: 1500 kg

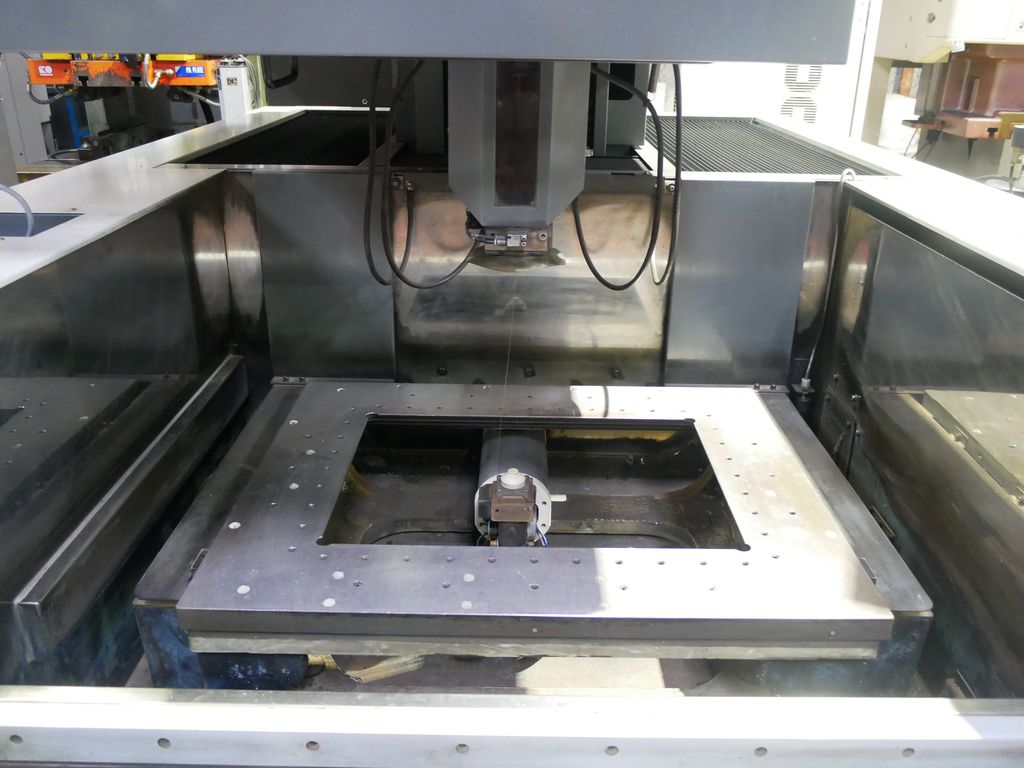

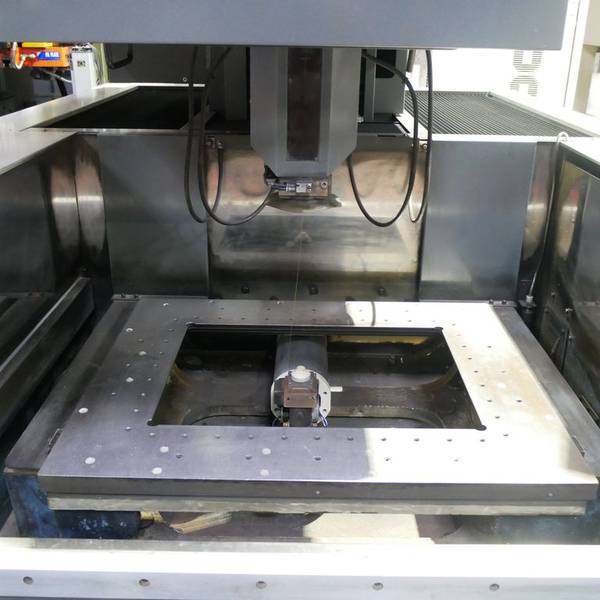

◆Table dimensions: 780 x 630 mm
◆Axis travel (X x Y x Z): 500 x 350 x 300 mm
◆Table rapid traverse speed: 1300 mm/min
◆Wire electrode diameter: 0.1 to 0.3 mm
◆Tapering device: Standard device
◆Axis travel (U x V): ±75 x ±75 mm
◆Maximum taper angle: 15° (for plate thickness of 260 mm) (at)
◆Machine body dimensions (W x D x H): 2013 x 2632 x 2100 mm
◆Weight: 3500 kg

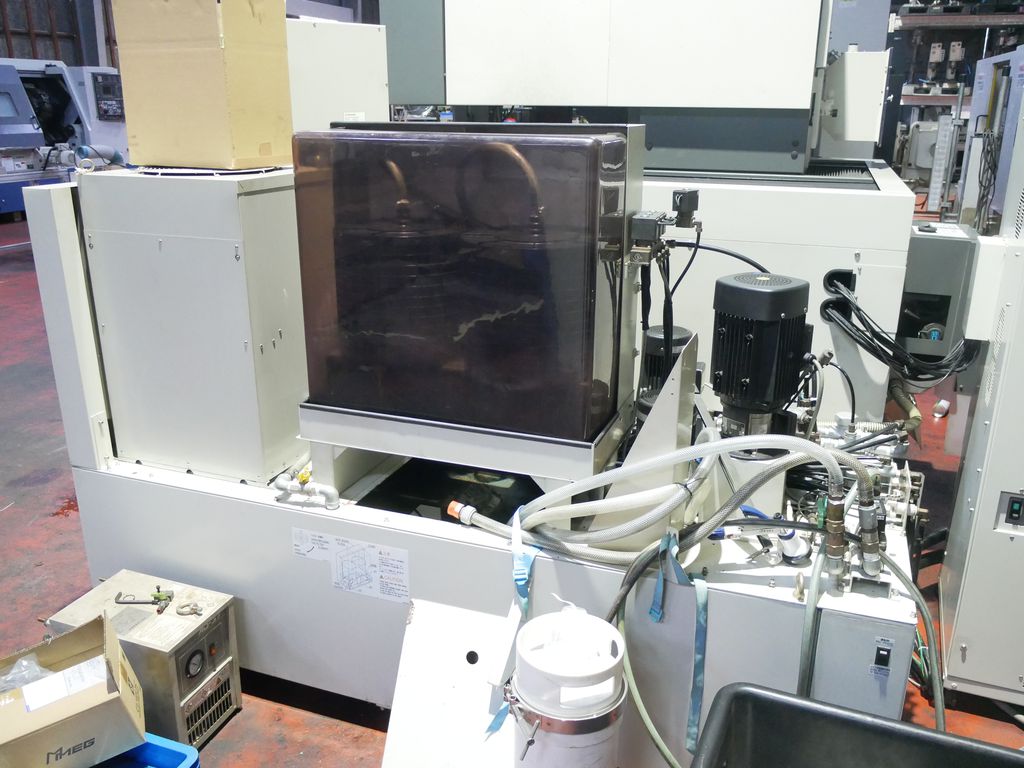

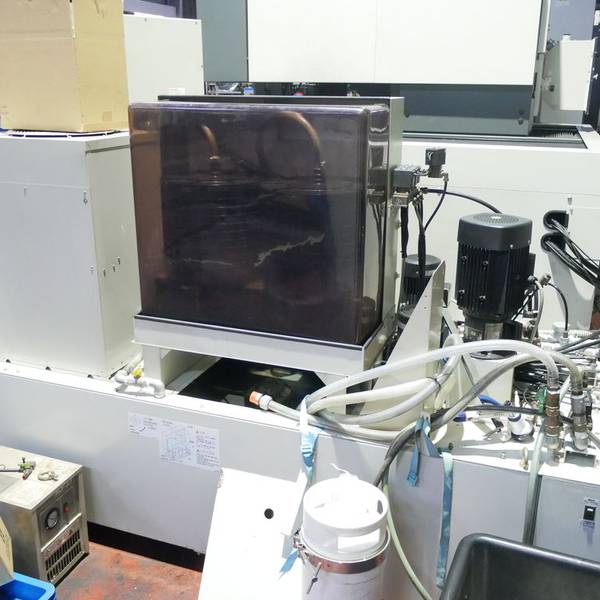

◆Cutting fluid tank capacity: 740 L
◆Cutting fluid tank dimensions (W x D x H): 880 x 2085 x 1490 mm
◆Power supply unit (WFAS)
◆Power supply circuit: Transistor pulse circuit (stabilization circuit, AVR built-in)
◆Power supply unit dimensions (W x D x H): 550 x 600 x 1650 mm

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
