◆Base dimensions (mm): 620 x 970 x 120
◆Column diameter (mm): 160
◆Distance from outer surface of column to spindle (center) (mm) (max): 520
◆Maximum vertical movement of column (mm) (max): 360

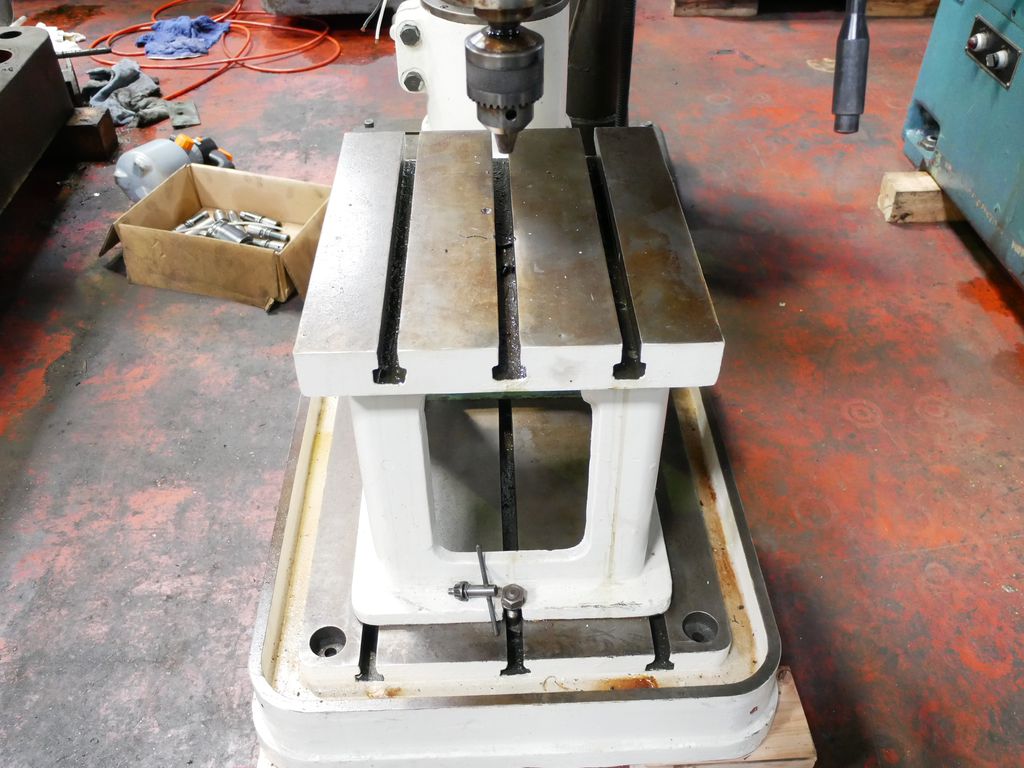

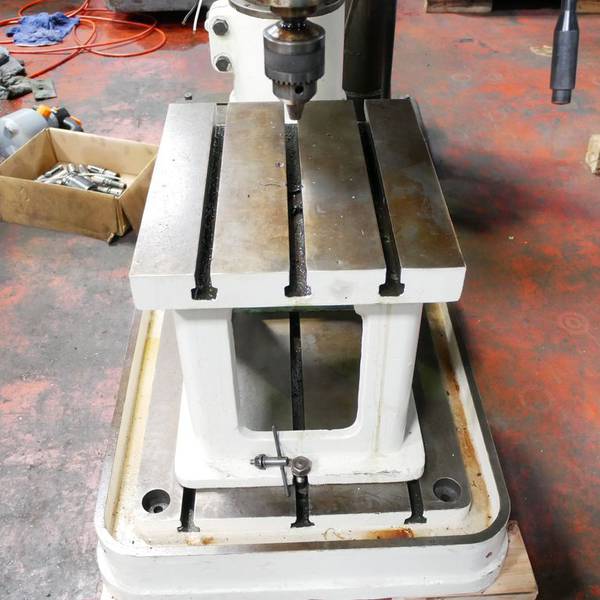

◆Table dimensions (mm): 370 x 420 x 400
◆Spindle hole taper (M.T): No.3
◆Maximum vertical movement of spindle (mm): 150

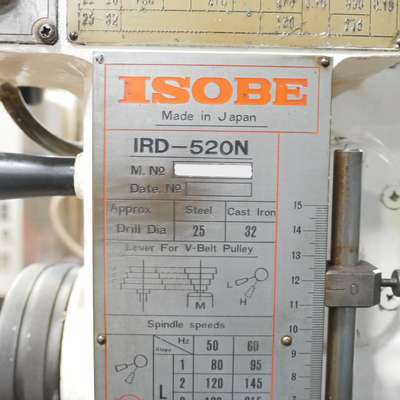

◆Drilling capacity (mm): Cast iron 32, Steel 28Φ
◆Threading capacity (mm): 6-22 6-16
◆Motor (KW): 1.5 (2HP)

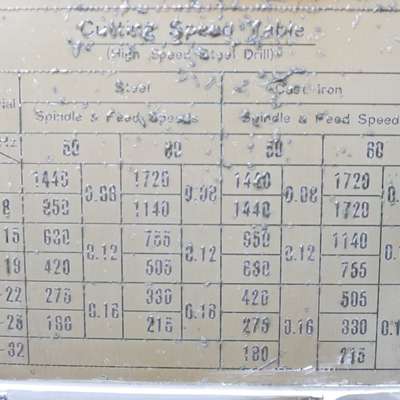

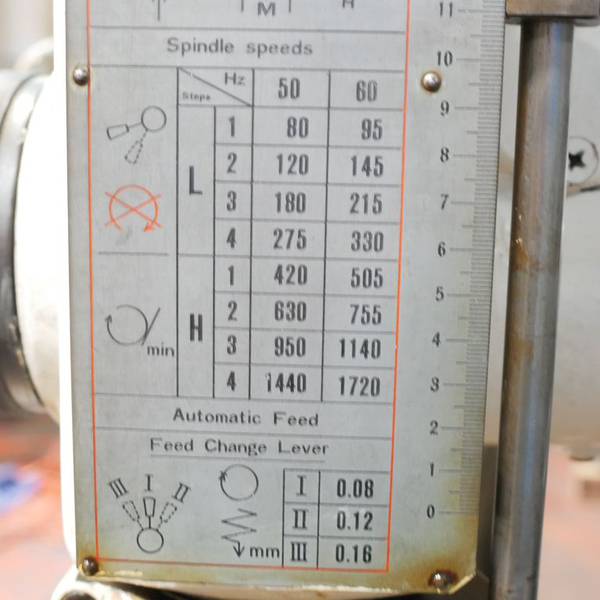

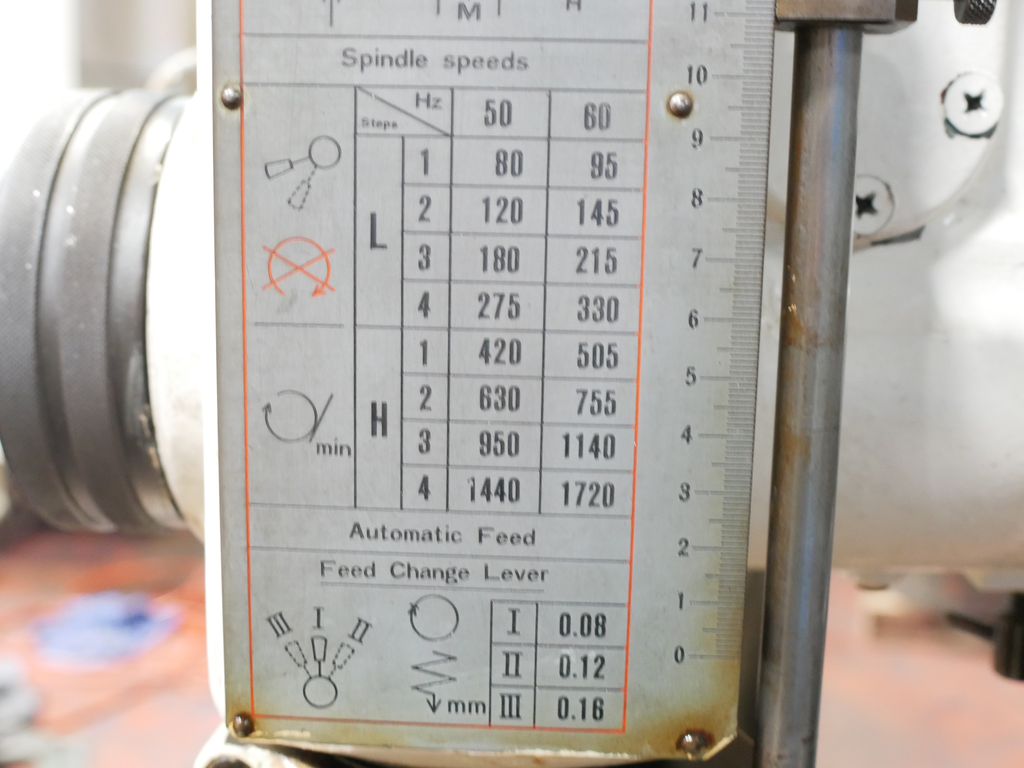

◆Spindle speed control: 8 stages
◆50Hz (rpm): 80, 120, 180, 275, 420, 630, 950, 1440
◆60Hz (rpm): 95, 145, 215, 330, 505, 755, 1140, 1720

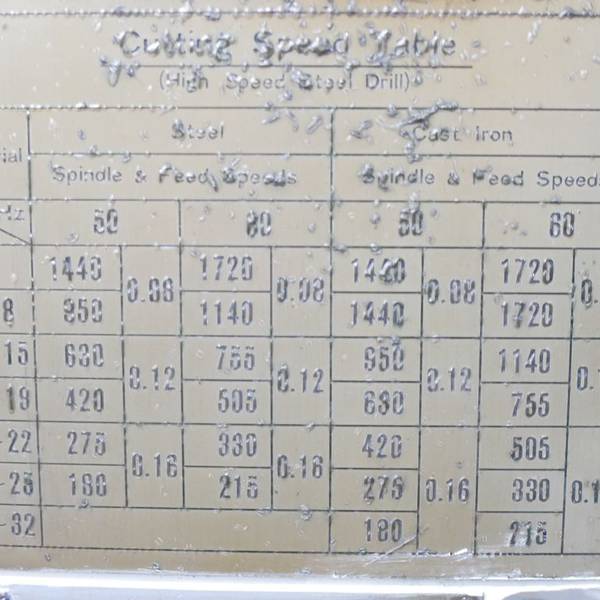

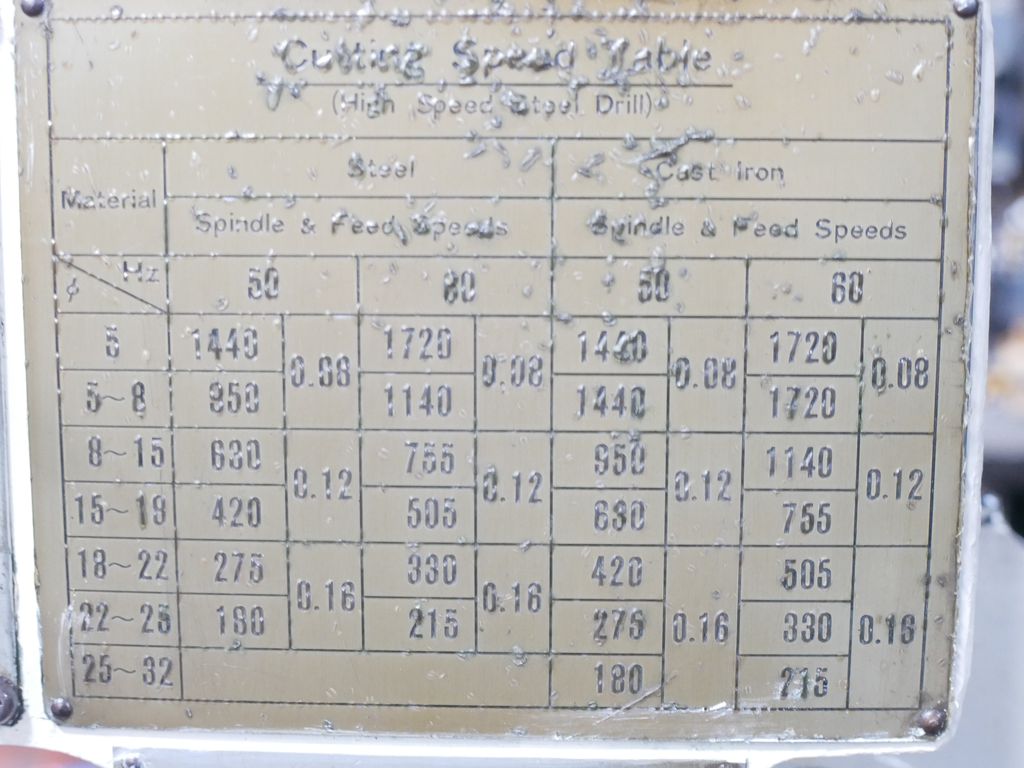

◆Automatic feed speed control: 3 stages (mm): 0.08, 0.12, 0.16
◆Net weight (kg): 550

✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.
