Yamazakigiken | 2012

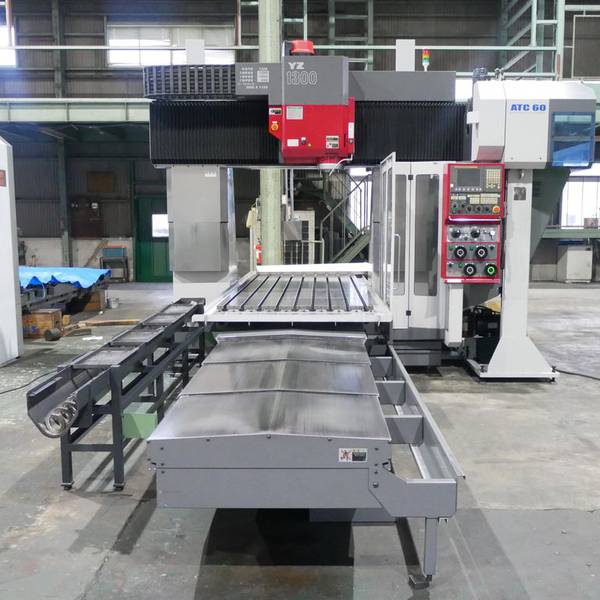

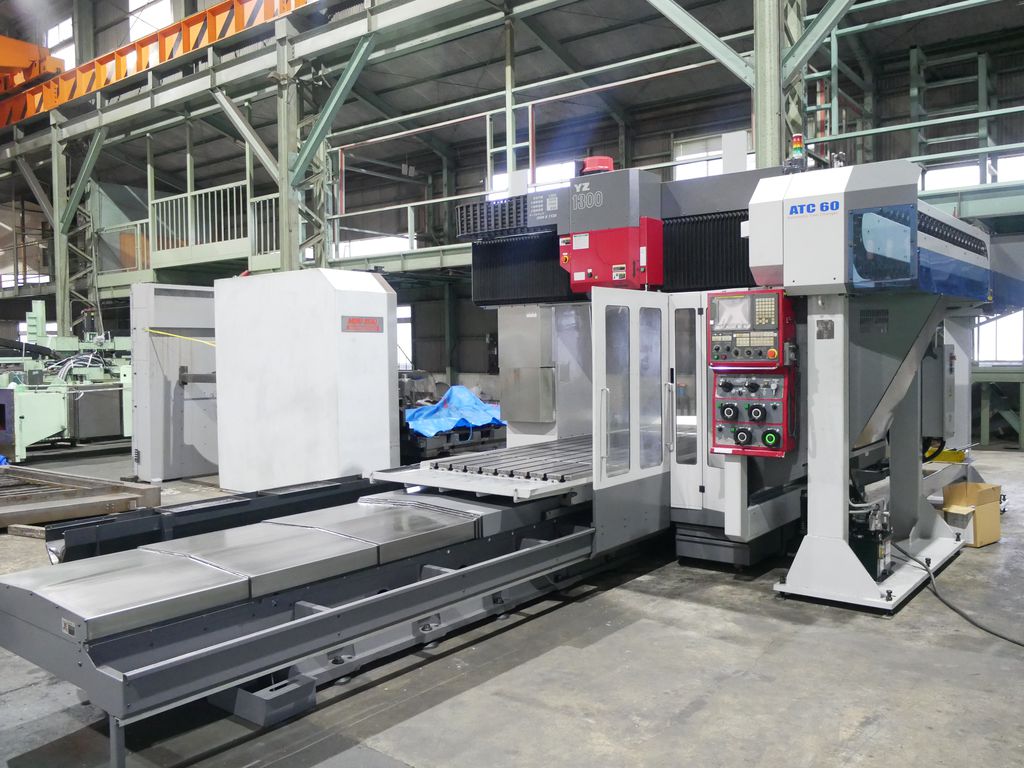

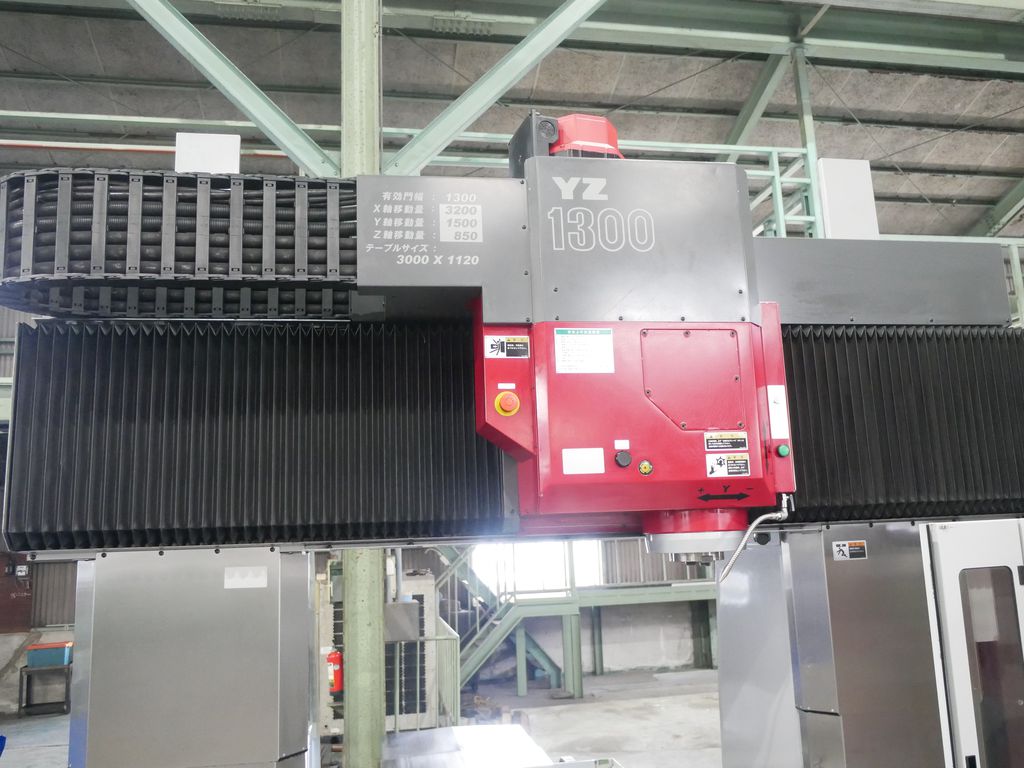

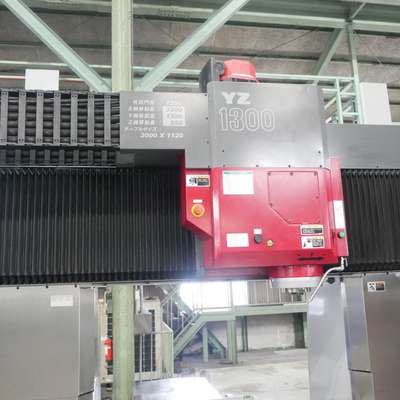

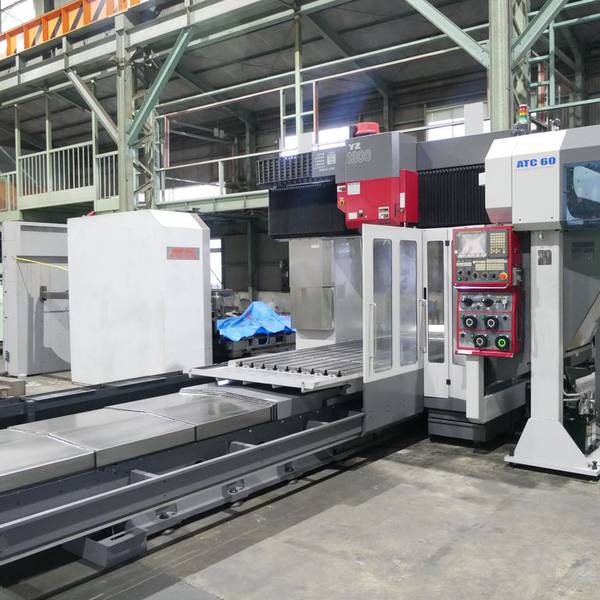

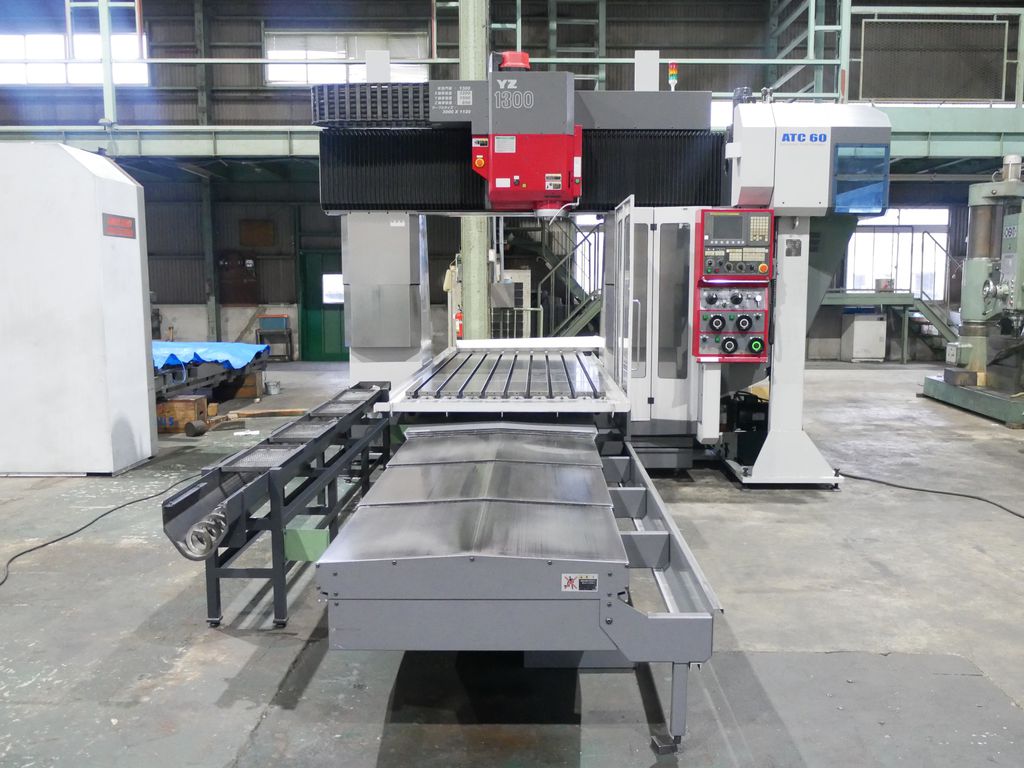

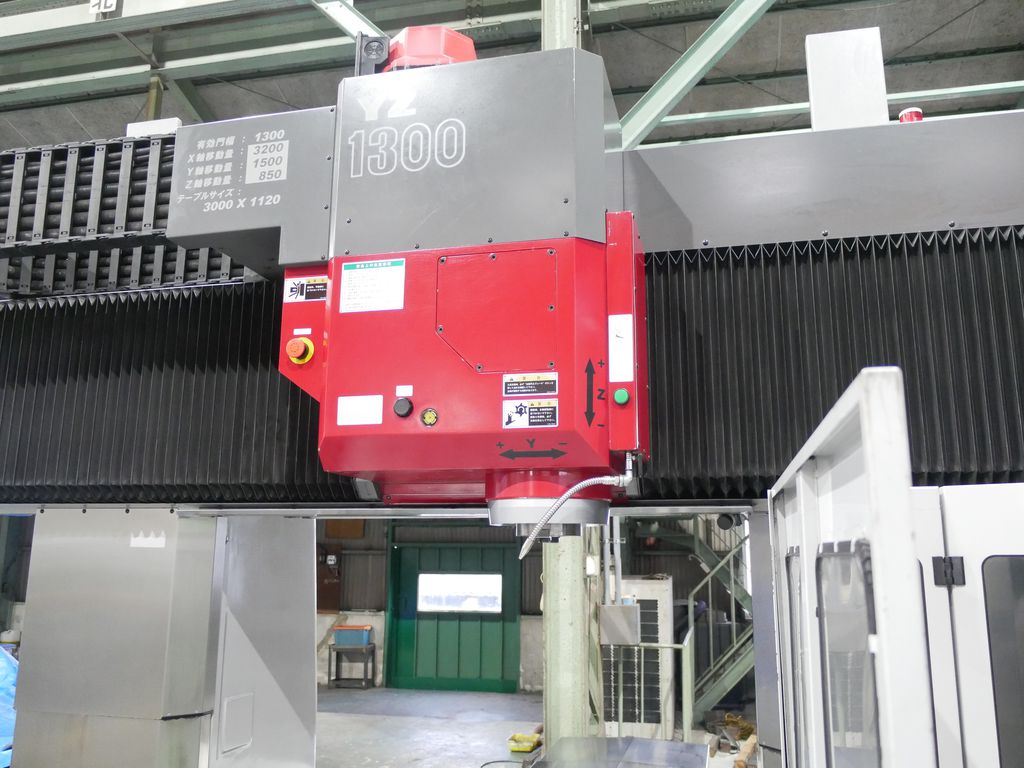

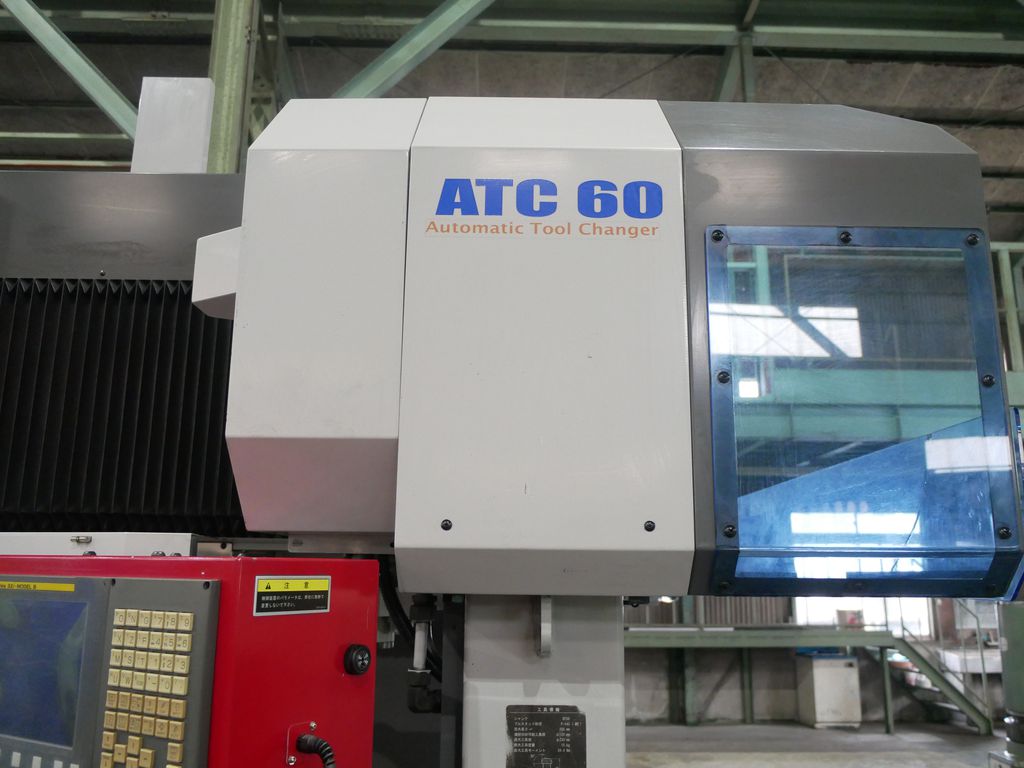

Double-column machining center (YZ-1332ATC)
-
メーカー: Yamazakigiken
-
保管場所: Head office. Machine Plaza型式: YZ-1332ATC
-
年式: 2012管理番号: 20301168
参考資料 ダウンロード (1)
Specification

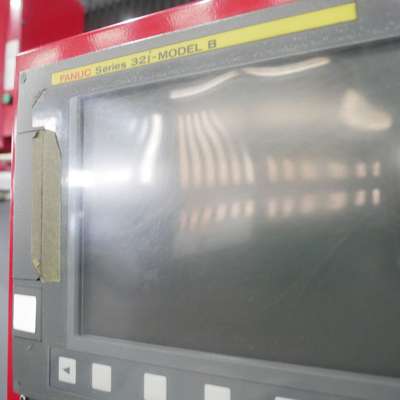

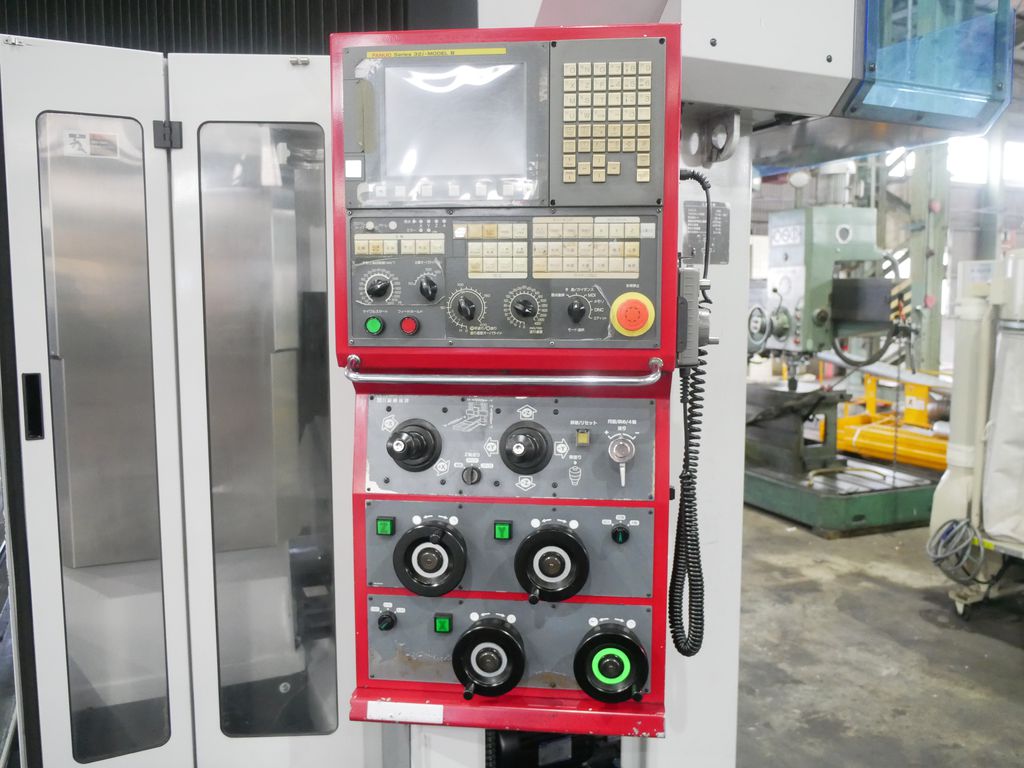

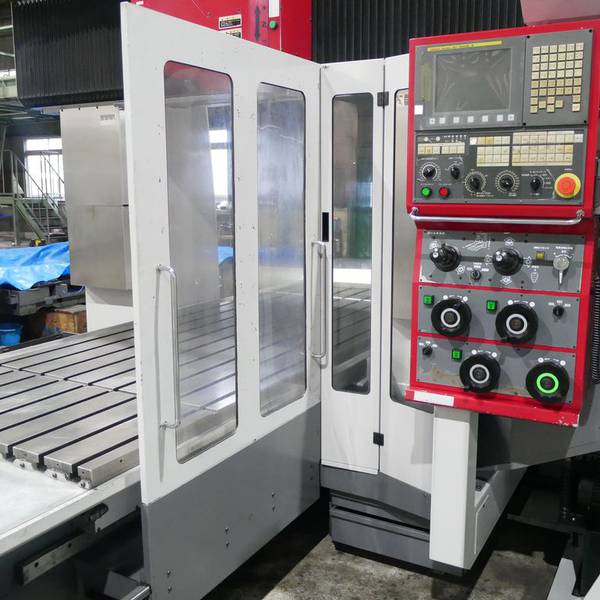

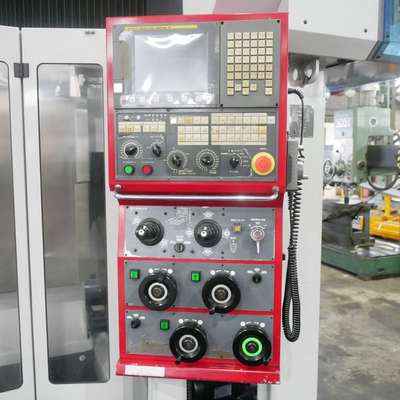

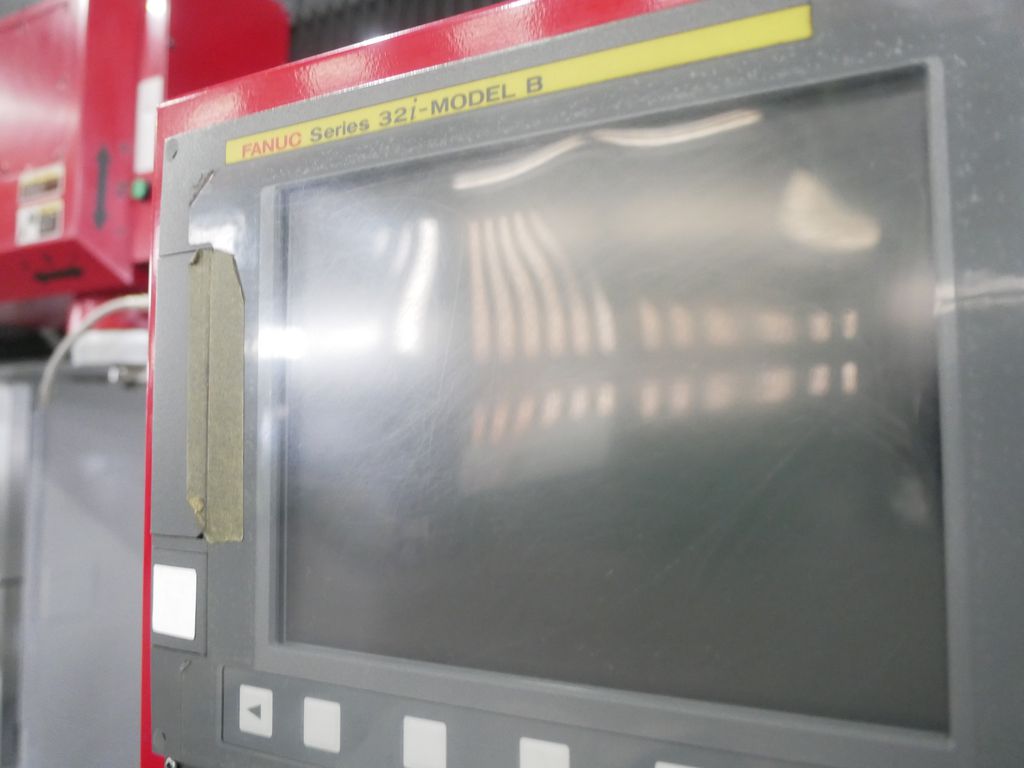

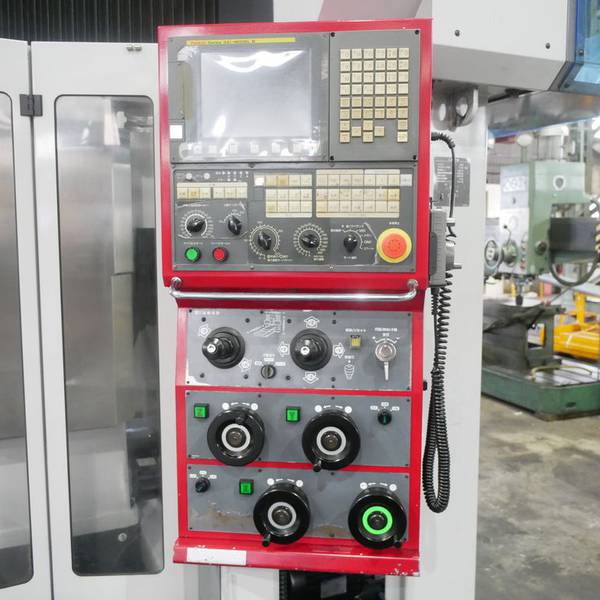

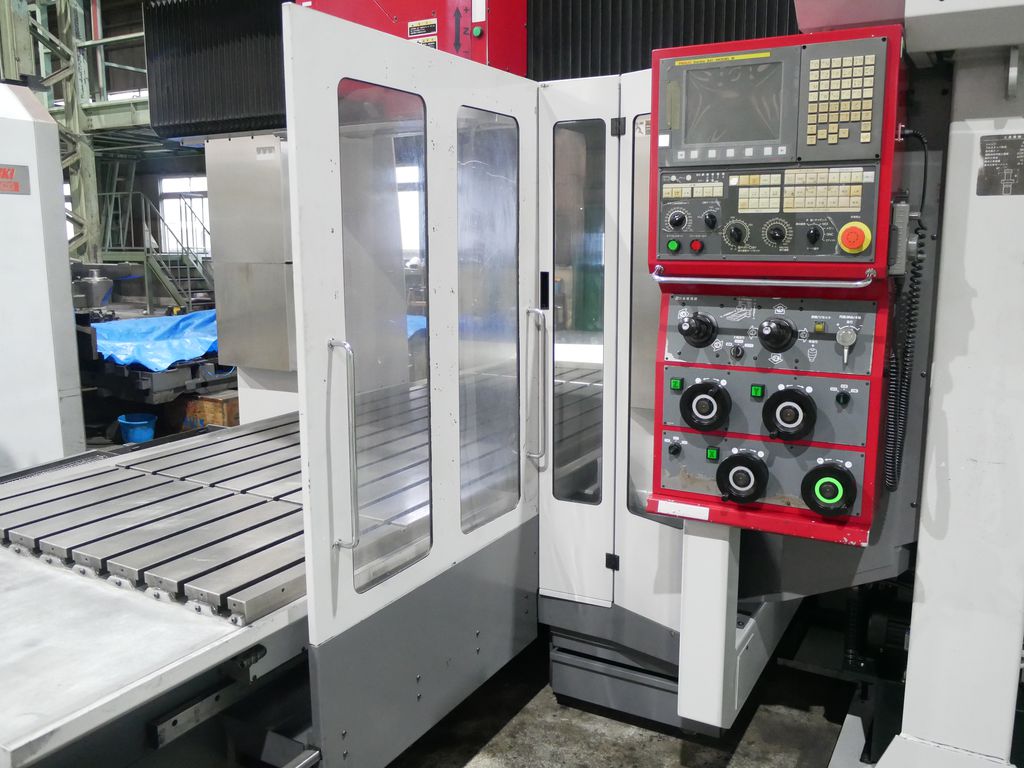

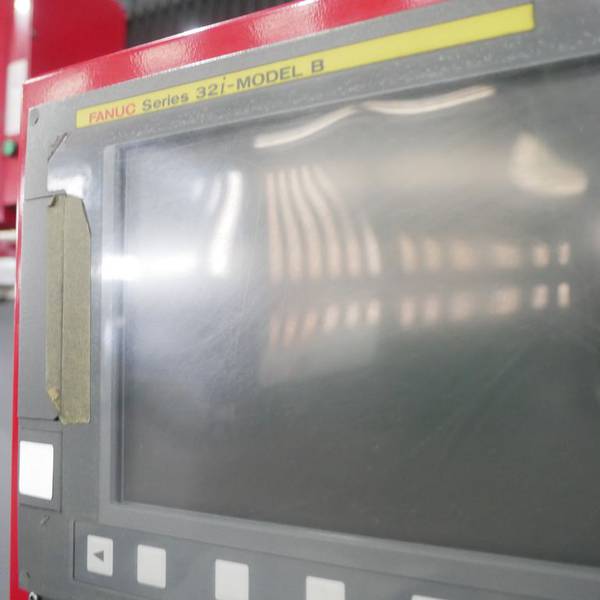

◆Controller: FANUC-32i-B

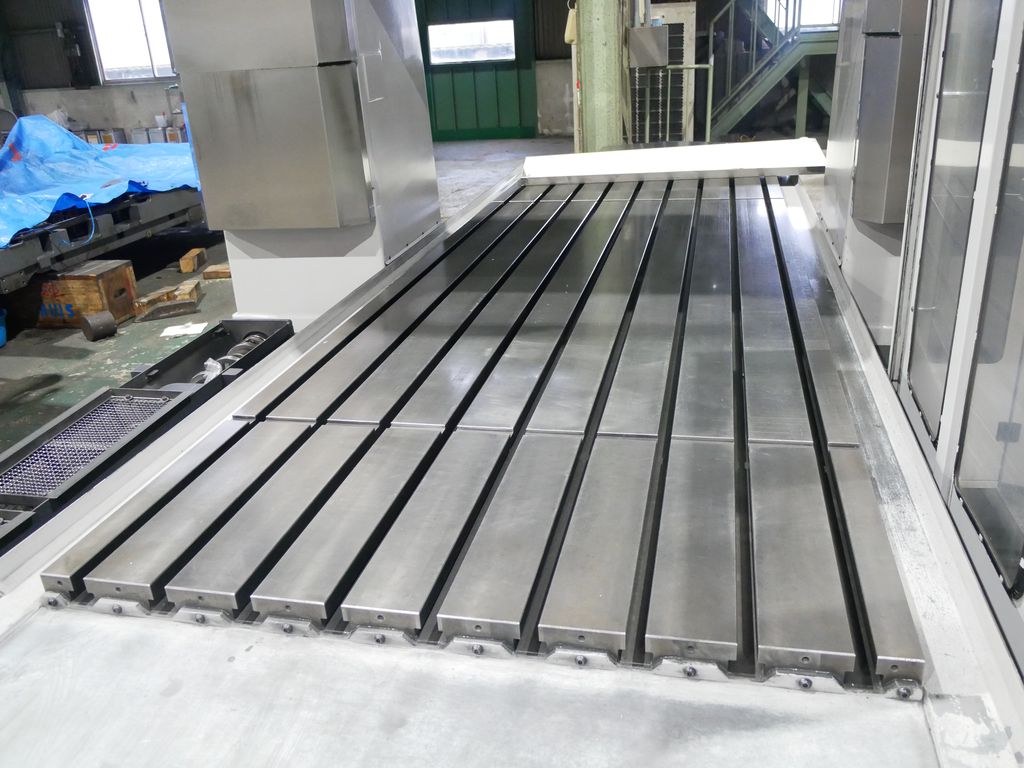

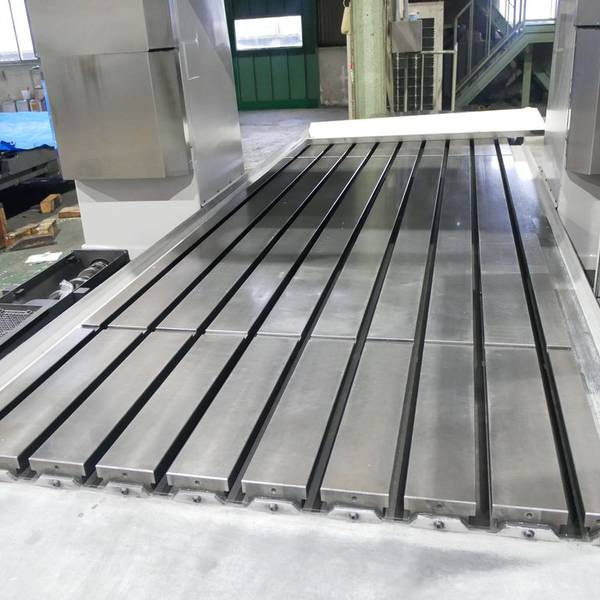

◆Table working area: 3000 x 1120
◆Table load capacity: Approximately 4000
◆Table T-slot width, number, and slot pitch: 18 x 11 P: 100
◆Distance from floor to table top: 720
◆Travel XYZ: 3200 x 1500 x 850
◆Gate width: 1300
◆Distance from spindle end to table top: min. 170, max. 1020
◆Spindle rotation speed: 3000
◆Spindle speed change: Automatic, variable speed
◆Spindle bearing diameter: Φ100
◆Spindle taper hole: 7/24 taper No. 50
◆Tool mounting bracket shape: P50T-II
◆Fast feed rate XYZ: 12000 x 12000 x 8000
◆Cutting speed (automatic): 0-6000 x 10-200% (MAX 6000)
◆Cutting speed (manual): 0-4000 x 10-200% (MAX 6000)
◆Machine dimensions: W7800 x D3500 x H2900
◆Machine weight: Approx. 19000 kg
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
