Mori seiki | 2011

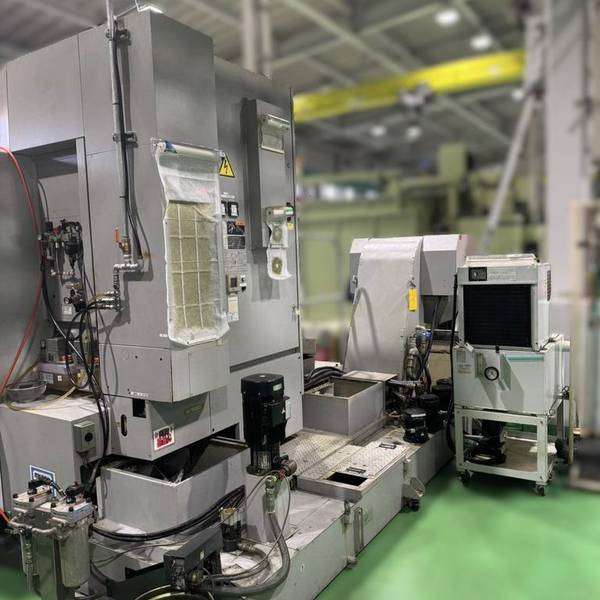

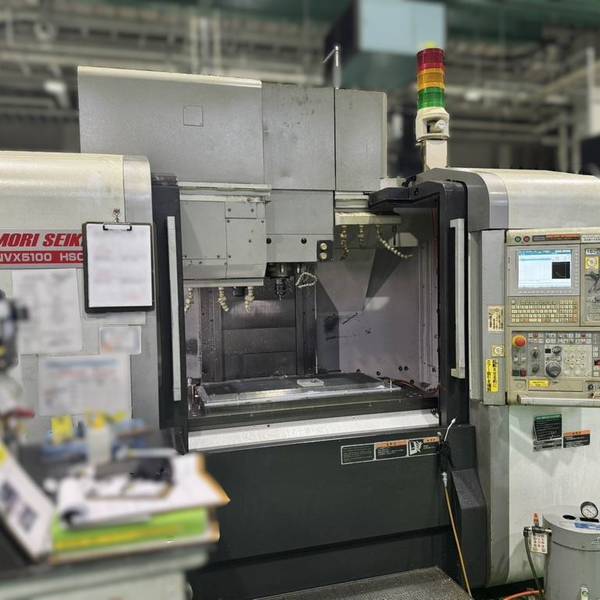

vertical machining center (NVX5100/40)

Specification

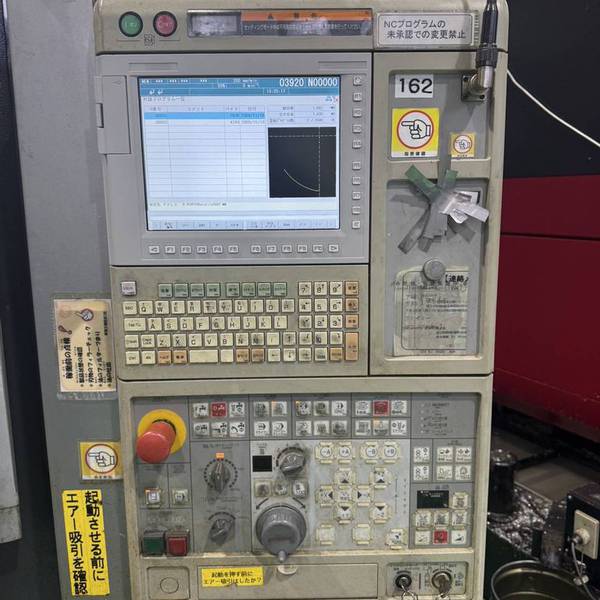

◆Controller: MAPPS
◆Travel range XYZ: 1050 x 530 x 510 mm
◆Distance from table top to spindle nose: 150-660 mm
◆Distance from floor to table top: 900 mm

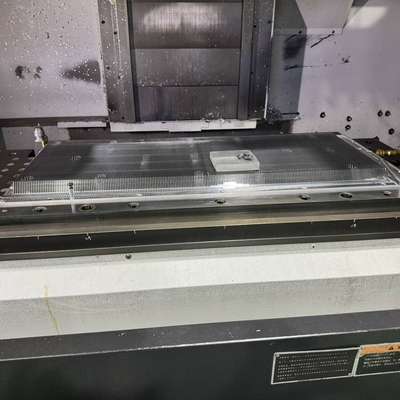

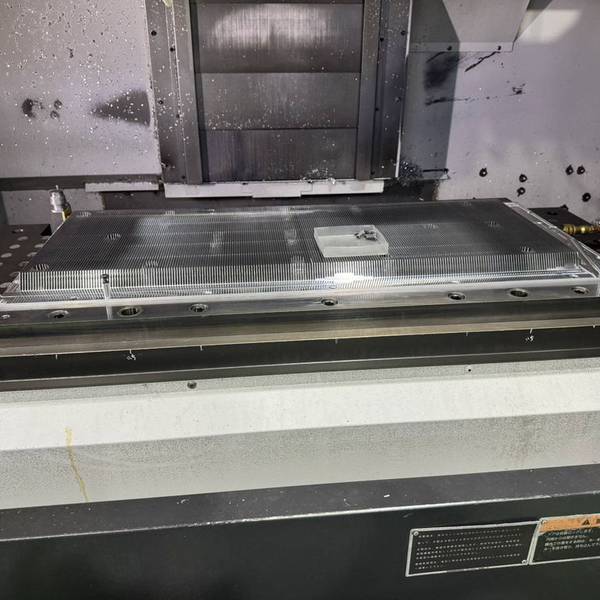

◆Table working surface size: 1350 x 600 mm
◆Maximum table load: 1200 kg
◆Table top shape (T-slot width x pitch x number): 18 mm x 100 mm x 6

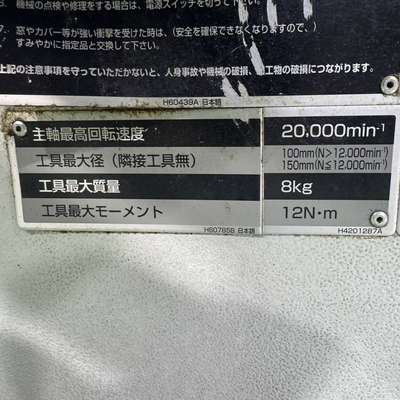

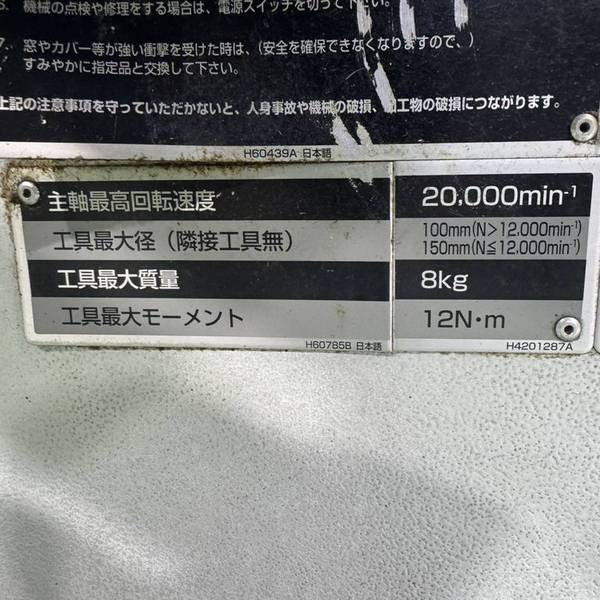

◆Maximum spindle speed: 20,000
◆Number of spindle speed ranges: 1

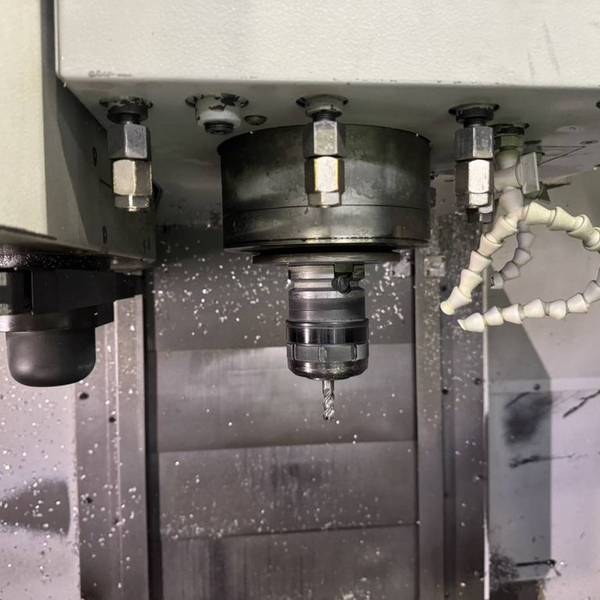

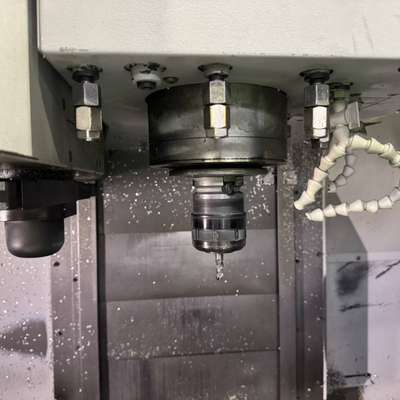

◆Spindle tapered hole: No. 40
◆Spindle bearing inner diameter: Φ80 mm
◆Rapid traverse rate XYZ: 30,000
◆Cutting feedrate: 1-30,000
◆Jog feedrate: 0-5,000
◆Tool storage capacity: 30
◆Maximum tool diameter With adjacent tools: Φ80mm
◆Maximum tool diameter
Without adjacent tools: Φ150mm
◆Maximum tool length: 300
◆Maximum tool weight: 8kg
◆Machine dimensions: 3018×2958×2597mm
◆Machine weight: 7000

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.

Photo (12)
