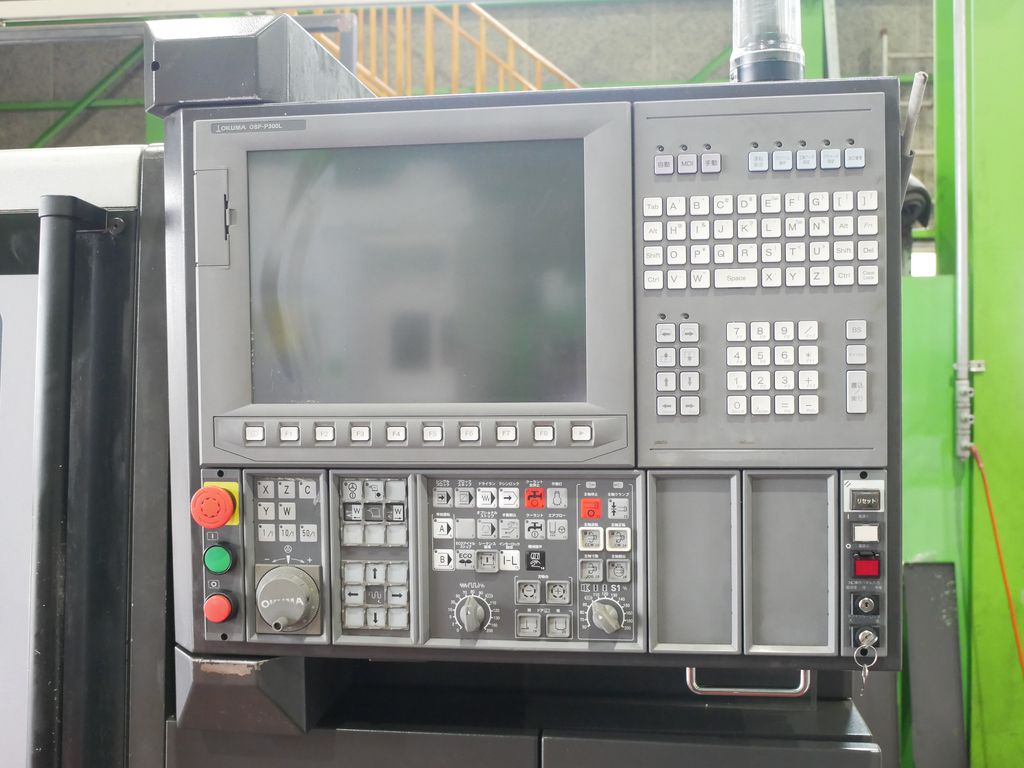

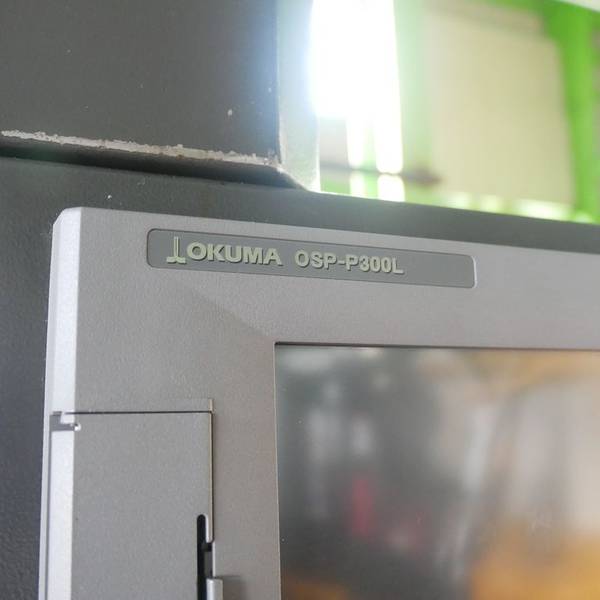

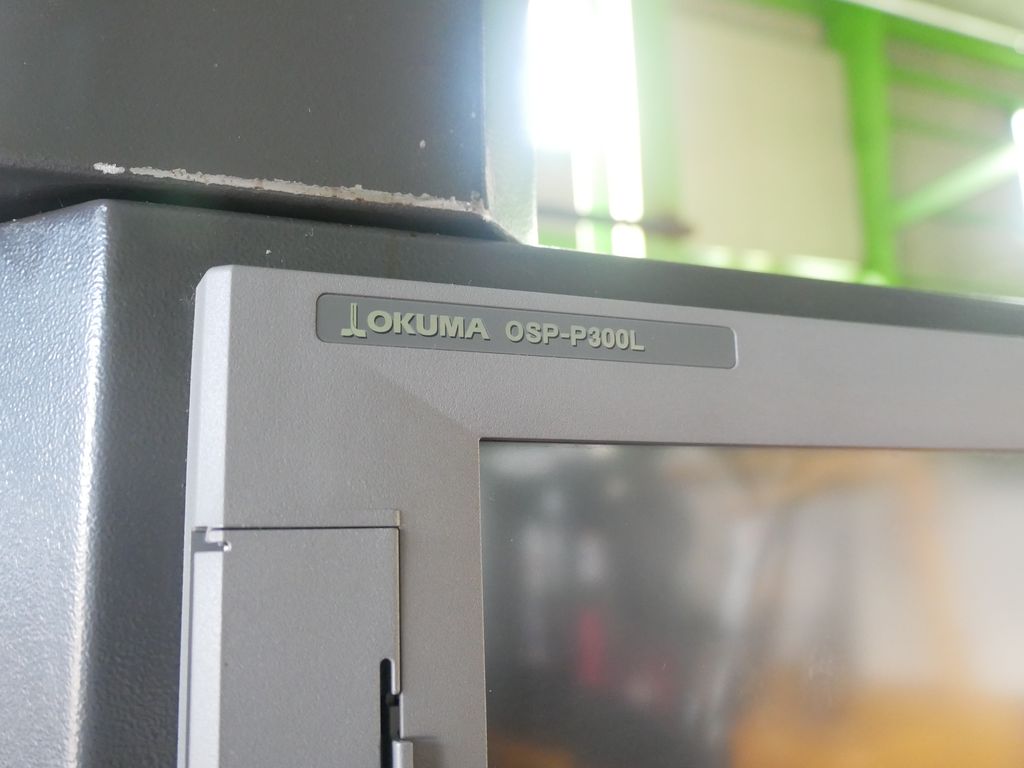

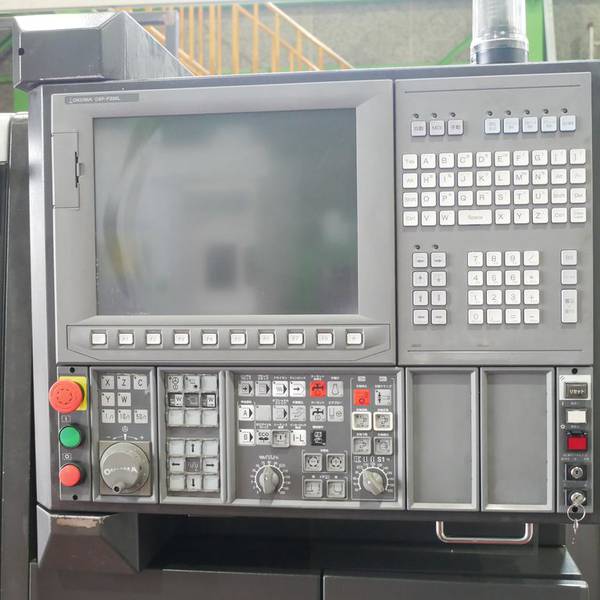

◆Control device: OSP-P300L
◆Swing above bed: Φ580
◆Swing above cross feed table: Φ470
◆Center distance: 520
◆Maximum machining diameter: Φ410
◆Maximum machining length: 500
◆Travel amount XZ: 260×565
◆Spindle rotation speed: 45-5000
◆V12 bolt clamp

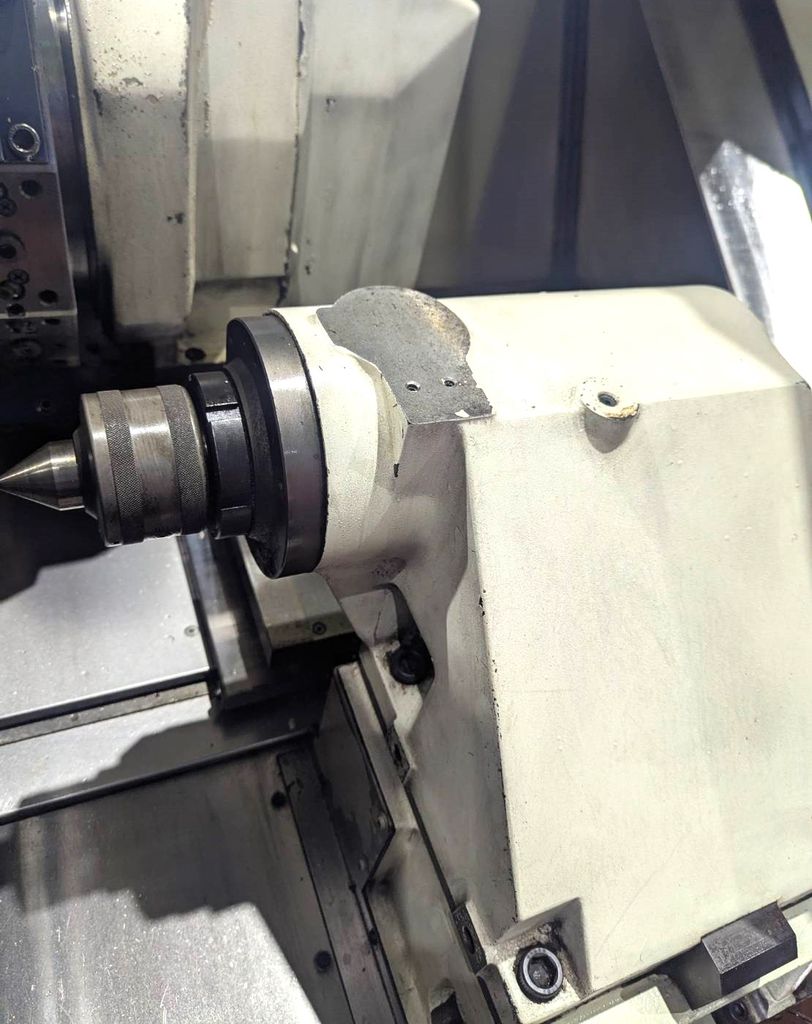

◆Dead type MT No.5

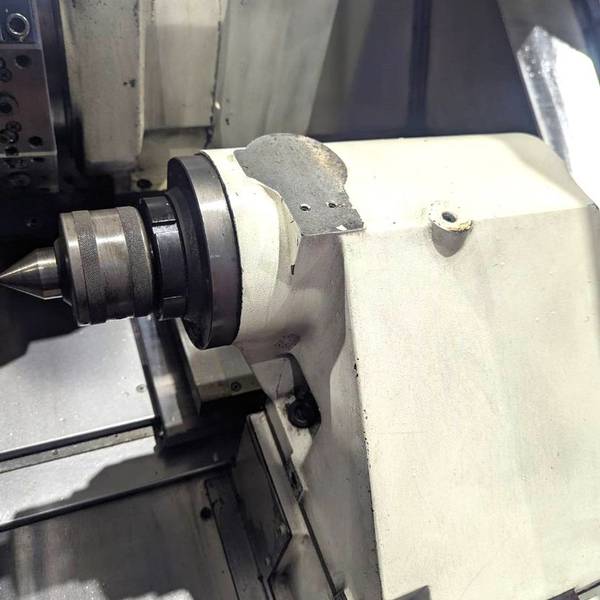

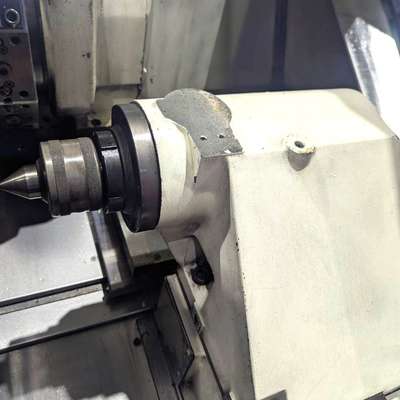

◆NC tailstock (inching specification)

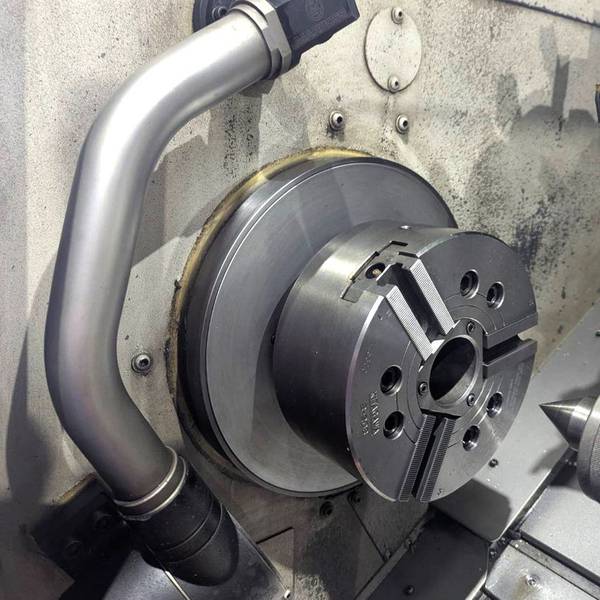

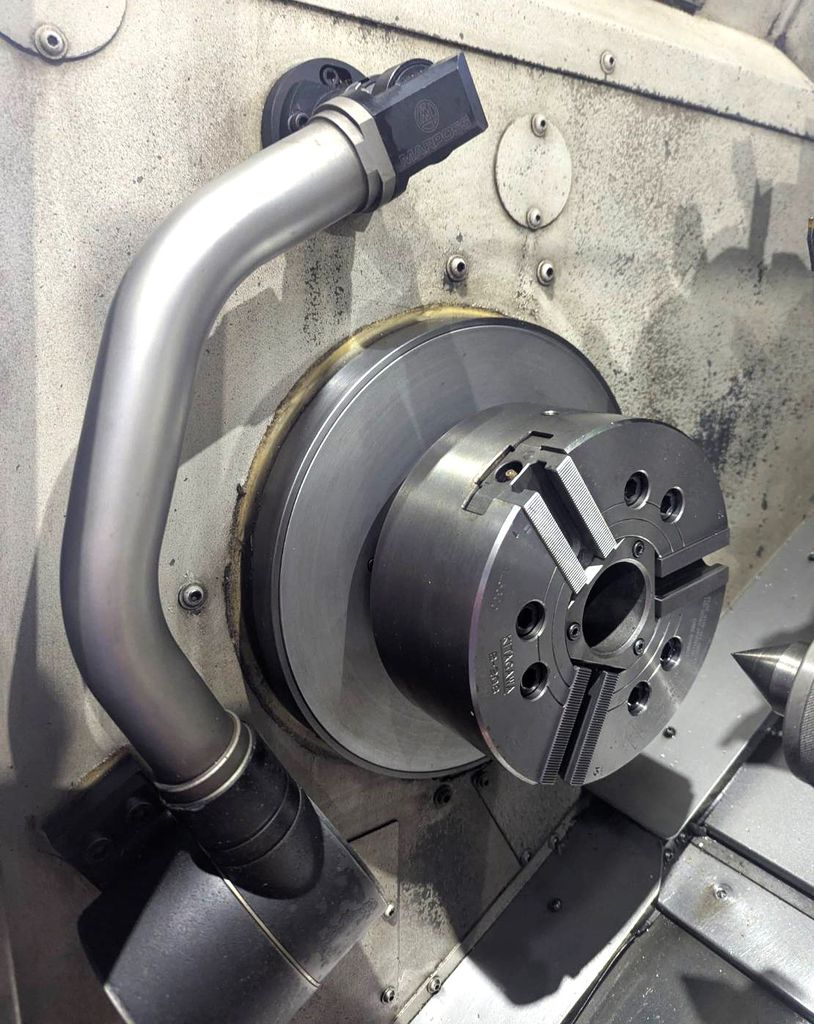

◆Hollow chuck B-208A6

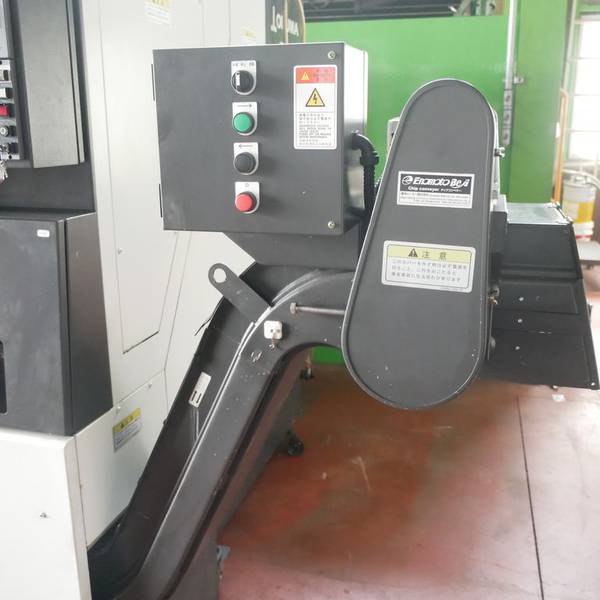

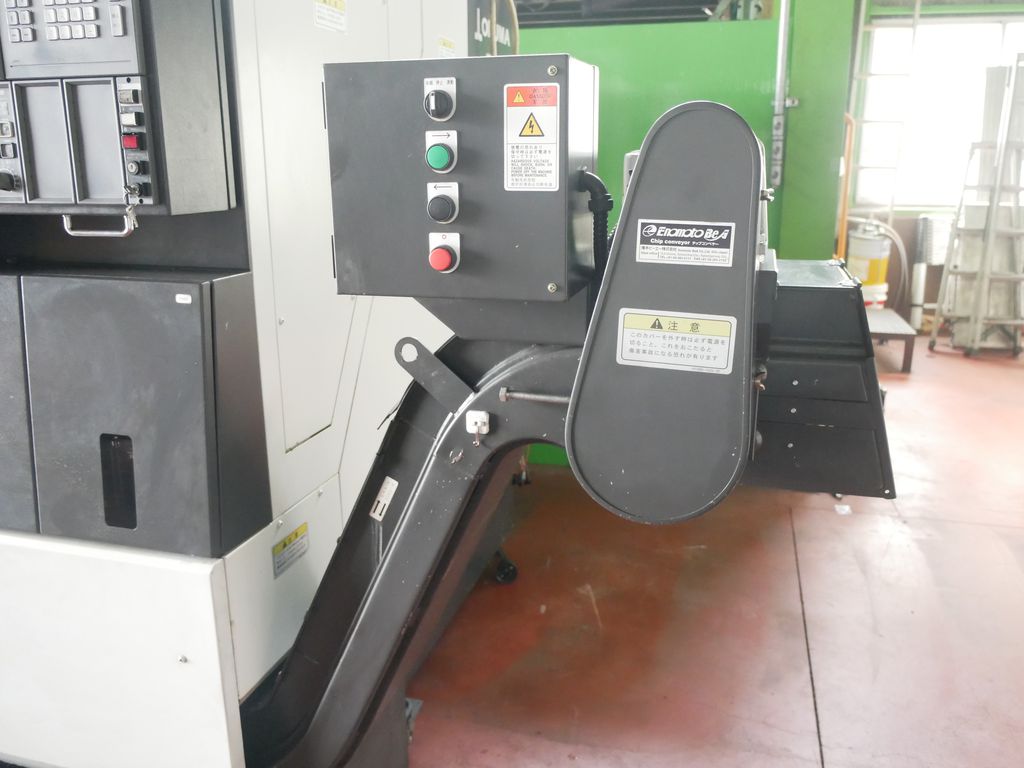

◆Conveyor side hinge type
◆Touch sensor M
◆ Fixed size stopper tip flat type: Adjustment st100mm forward end = check end
◆ OSP Easy Dialogue Advance-E
◆ Status indicator light: 3-stage

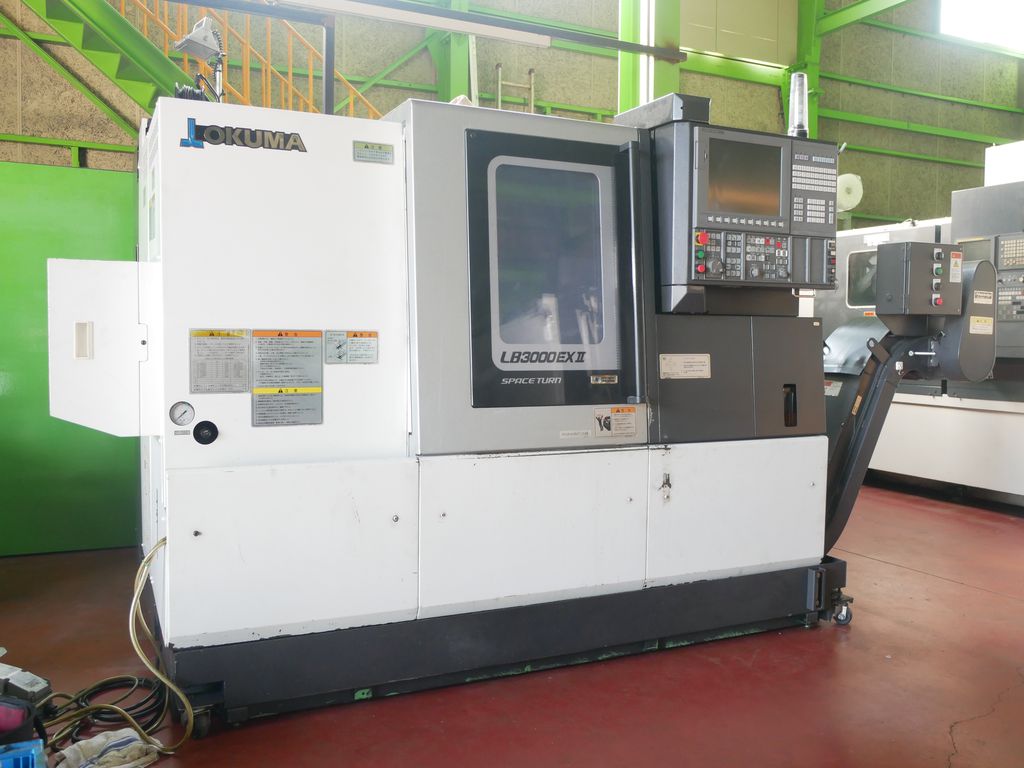

◆ Machine dimensions: W2310 x D1734 x H1839
◆ Machine weight: 4400

✤ If there is a difference between the specifications and the actual product, the actual product will take precedence.
