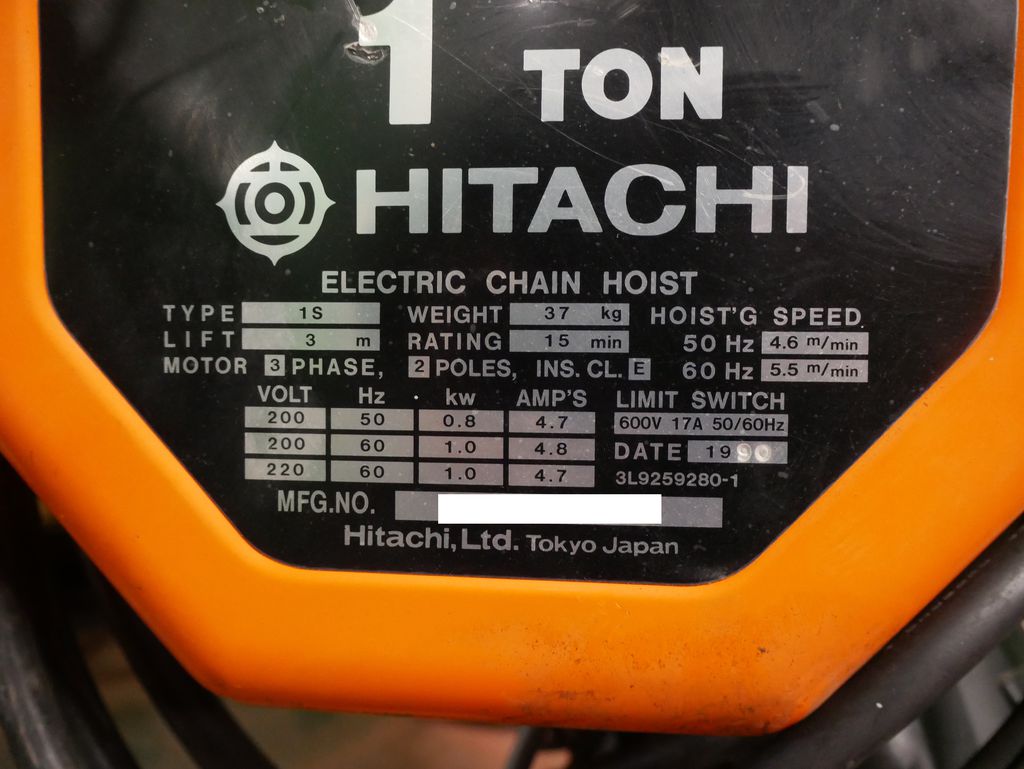

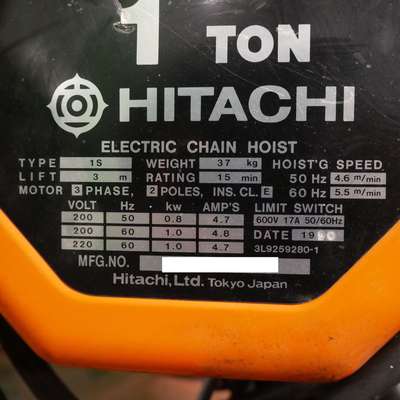

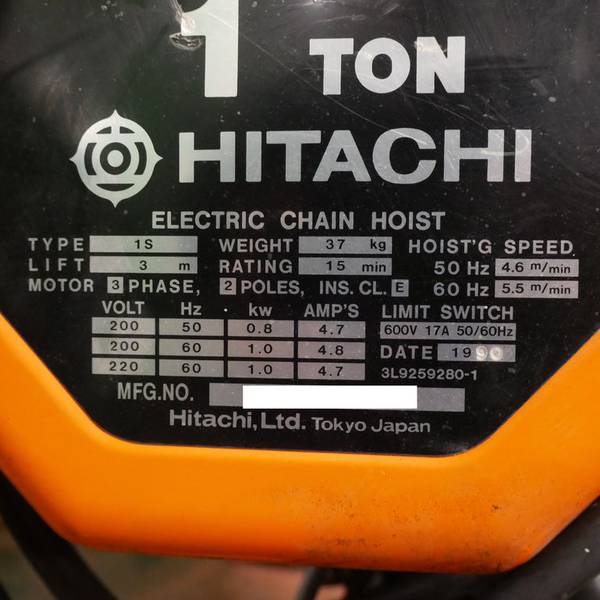

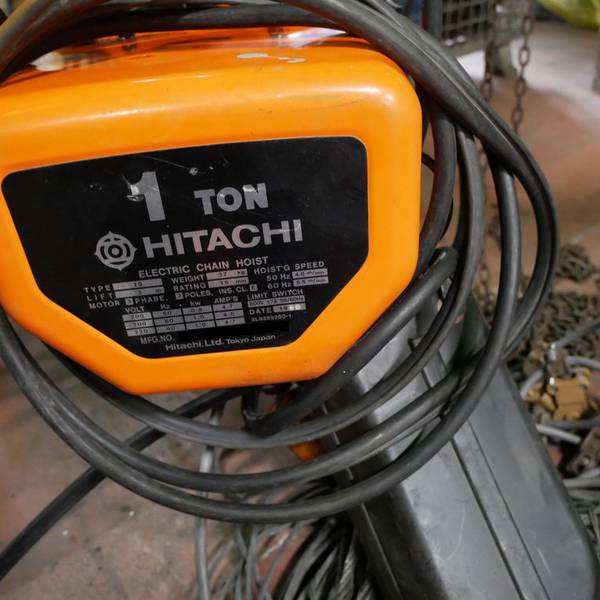

◆Model: 1S (H)
◆Standard lifting height (m): 3
◆Hoisting speed (m/s): 50Hz: 4.6, 60Hz: 5.5
◆Hoisting motor (kW): 50Hz: 0.8, 60Hz: 1.0, Number of poles: 2
◆Power supply: Three-phase 200V 50/60Hz
◆Rated current (approximate) (A): 5.3
◆Link chain (wire diameter): Φ7.1
◆Link chain (number of links): 1

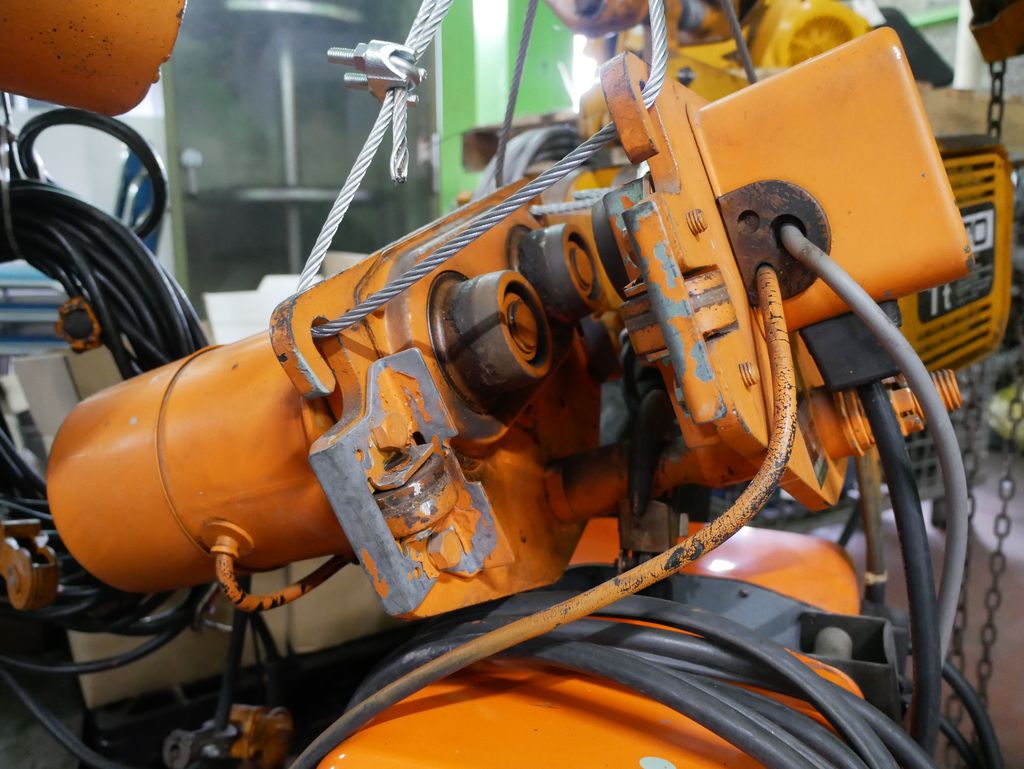

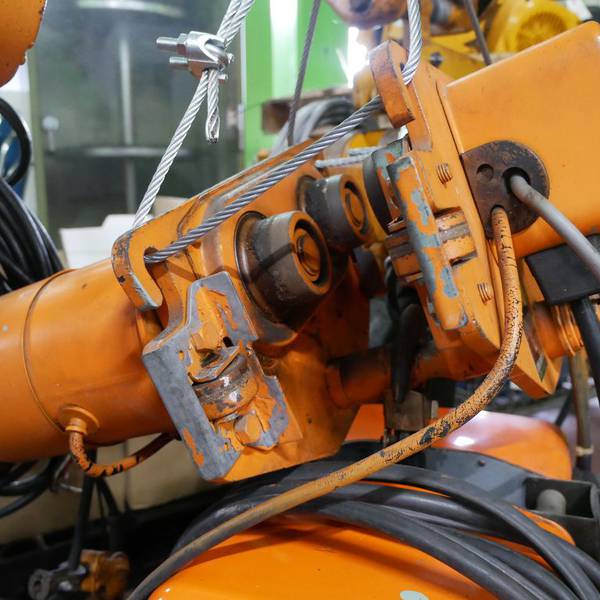

◆Electric trolley specifications
◆Model: 1ET₂
◆Maximum applicable load: 1 t
◆Traverse speed (m/s): 50Hz: 0.35 (21) Half-speed: 0.175 (10.5)
◆Traveling speed (m/s): 60Hz: 0.417 (25) Half-speed: 0.208 (12.5)
◆Traveling motor (kW): 50Hz: 0.27 (0.14) 60Hz: 0.32 (0.16)
◆Power supply: Three-phase 200V 50/60Hz
◆Rated current (approximate) (A): 1.6 (2.2)
◆Applicable beam width (mm): 75, 100, 125

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
