◆Menu: Throttle
◆Pressure Capacity (kN): 1500
◆Stroke Length (mm): 225
◆Power Generation Position (mm): 6.0
◆Strokes per Minute (min-1): 25-45
◆Flyhole Energy (kJ): 21.5-69.6
◆Die Height (mm): 430
◆Slide Adjustment (mm): 100

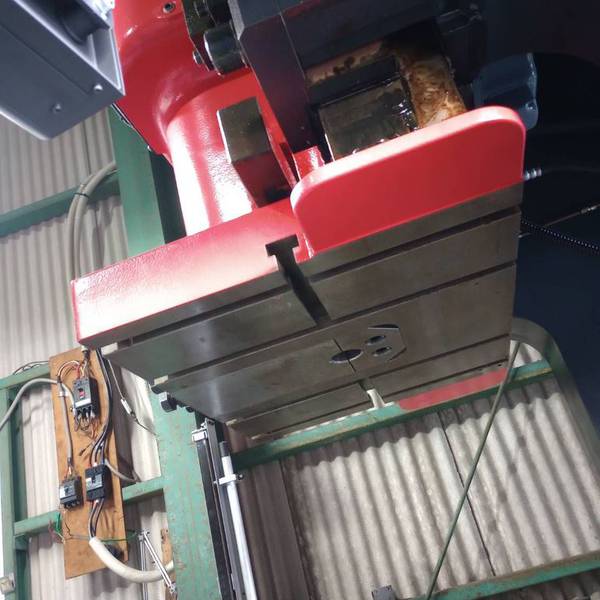

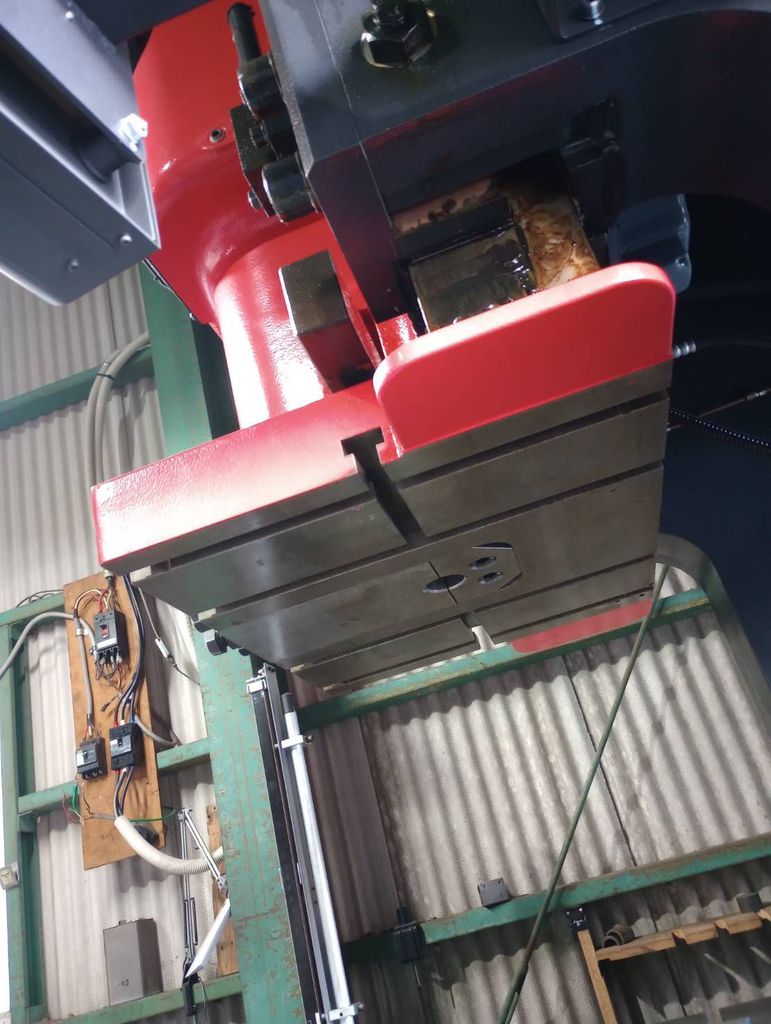

◆Slide Bottom Dimensions (mm): 700 x 550

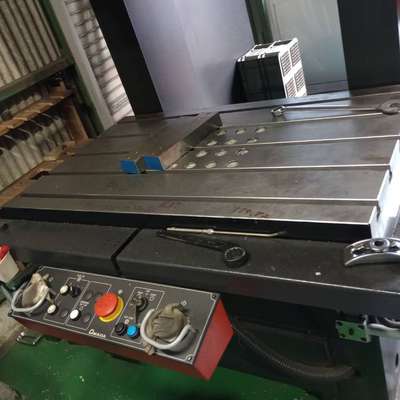

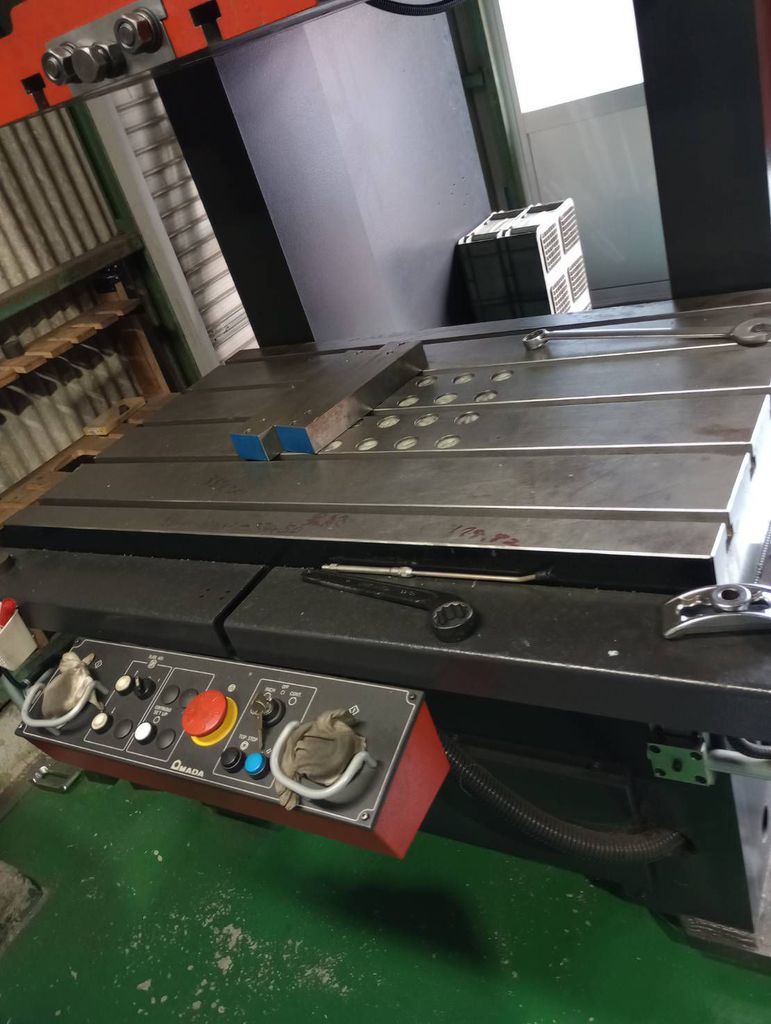

◆Bolster Dimensions (mm): 1250 x 750
◆Bolster Thickness (mm): 160
◆Frame Gap (mm): 390
◆Open Back Height (mm): 810
◆Working surface height (mm): 900
◆Main motor (kW x P): 11 x 4
◆Die cushion capacity (kW): 95
◆Die cushion stroke length (mm): 80
◆Die cushion pad surface dimensions (mm): 510 x 345
◆Total machine height (mm): 3435
◆Machine weight (kg): 16000
◆Slide adjustment: Electric
◆Lubrication method: Manual grease
◆Continuously variable speed: Inverter
◆Includes die cushion

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
