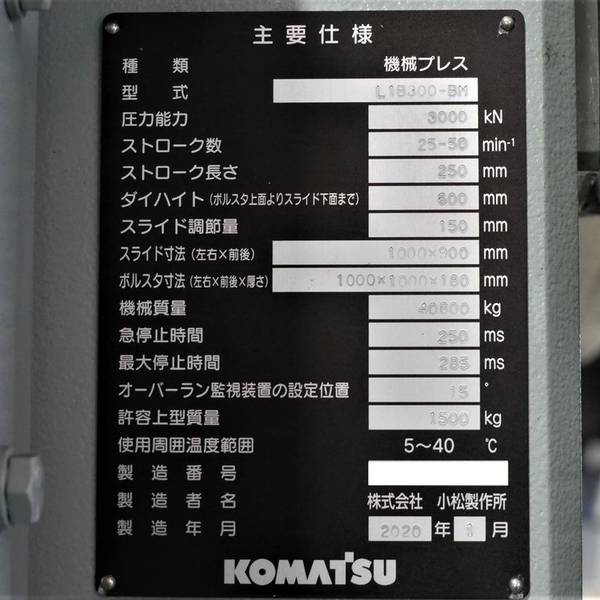

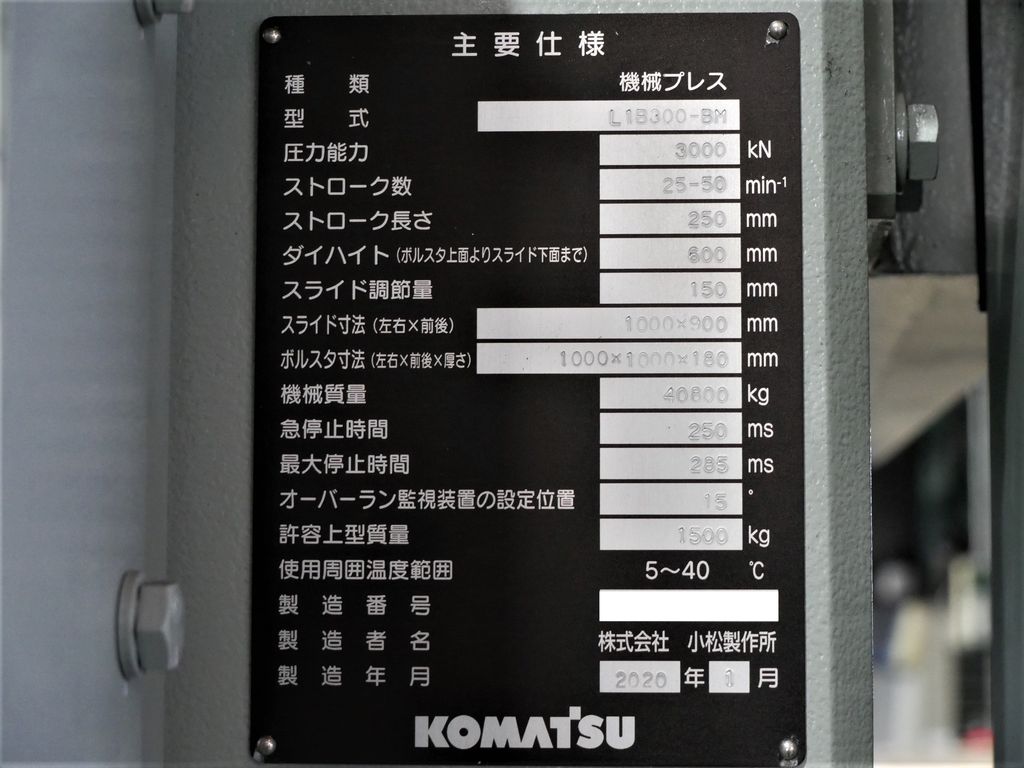

◆Pressure Capacity: 3000kN
◆Stroke Rate: 25-50min-1
◆Stroke Length: 250mm
◆Die Height (from top of bolster to bottom of slide): 600mm
◆Slide Adjustment Range: 150mm
◆Slide Dimensions (Left/Right x Front/Back): 1000 x 900mm

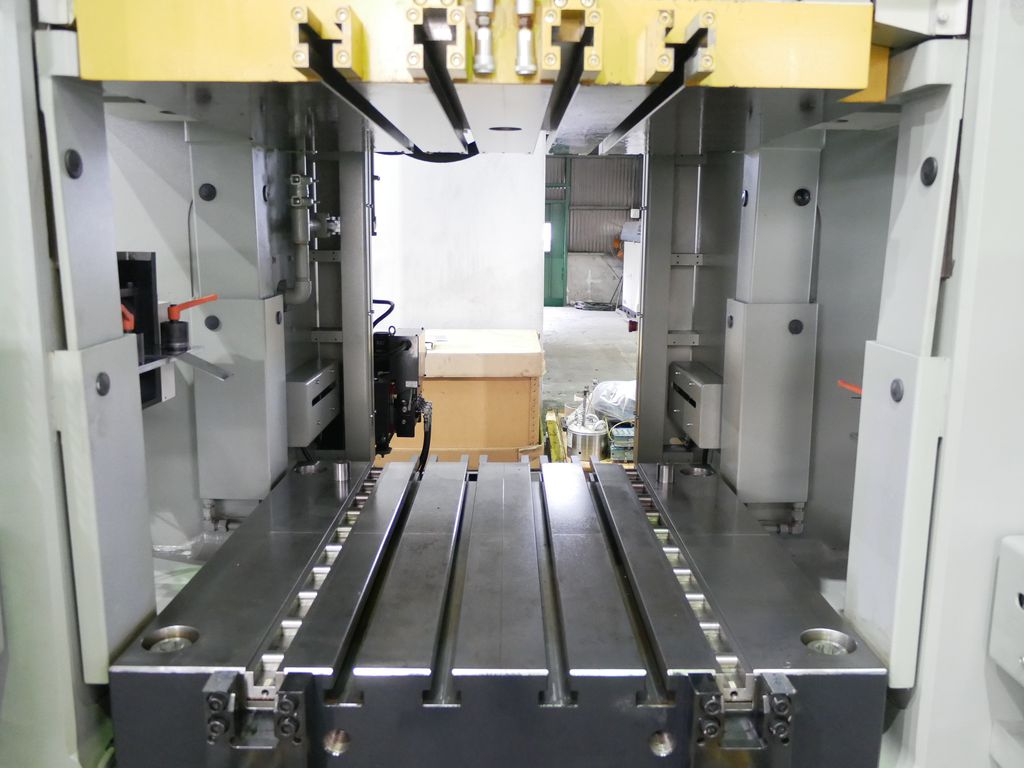

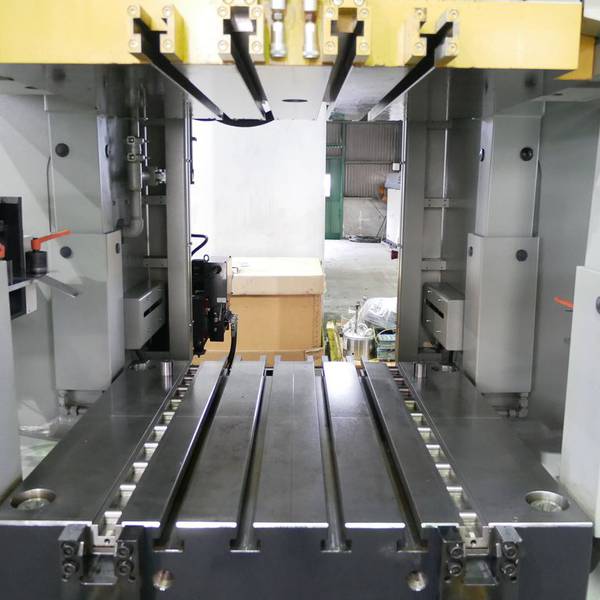

◆Bolster Dimensions (Left/Right x Front/Back x Thickness): 1000 x 1000 x 180mm
◆Machine Weight: 40800kg
◆Emergency Stop Time: 250ms
◆Maximum Stop Time: 285ms
◆Overrun Monitoring Device Setting Position: 15°
◆Allowable Upper Die Weight: 1500kg
◆Operating Ambient Temperature Range: 5-40℃

✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.
