Specification
◆Control device: FANUC 0i-TFPlus
◆Grinding wheel holder, grinding wheel holder feed, automatic cutting related
◆Grinding wheel shaft motor change: 2.2kW 3.7kW
◆Grinding wheel flange standard: Φ305～405×25～50×Φ127mm
◆Swing on table (mm): Φ200
◆Center distance (mm): 250
◆Maximum grinding outer diameter (mm): Φ100
◆Center load mass (kg): 20
◆Grinding wheel size Outer diameter x width x inner diameter (mm): Φ355 x 32 x Φ127
◆Grinding wheel peripheral speed (m/s): 33
◆Grinding fluid tank capacity change: Single layer 80L → 200L
◆Sizing device related: Outer diameter sizing device: 8-60mm / Hydraulic 50mm st.
◆SHIGIYA Plus DANKILESS/AI thermal displacement compensation
◆Included mist collector
✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.

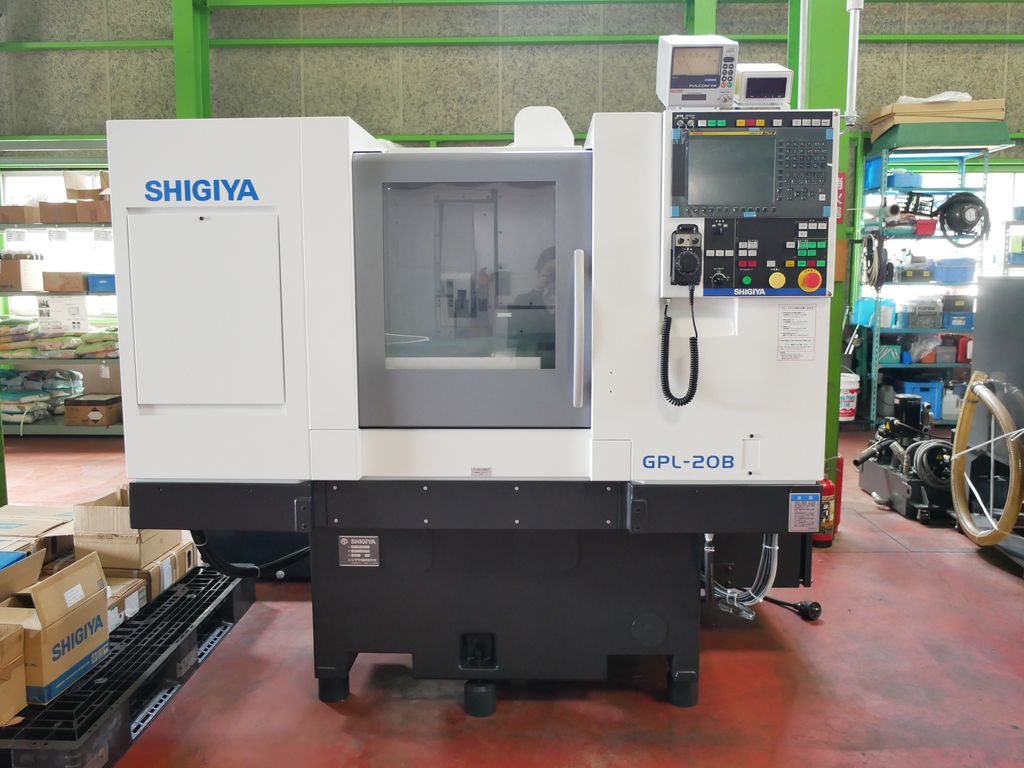

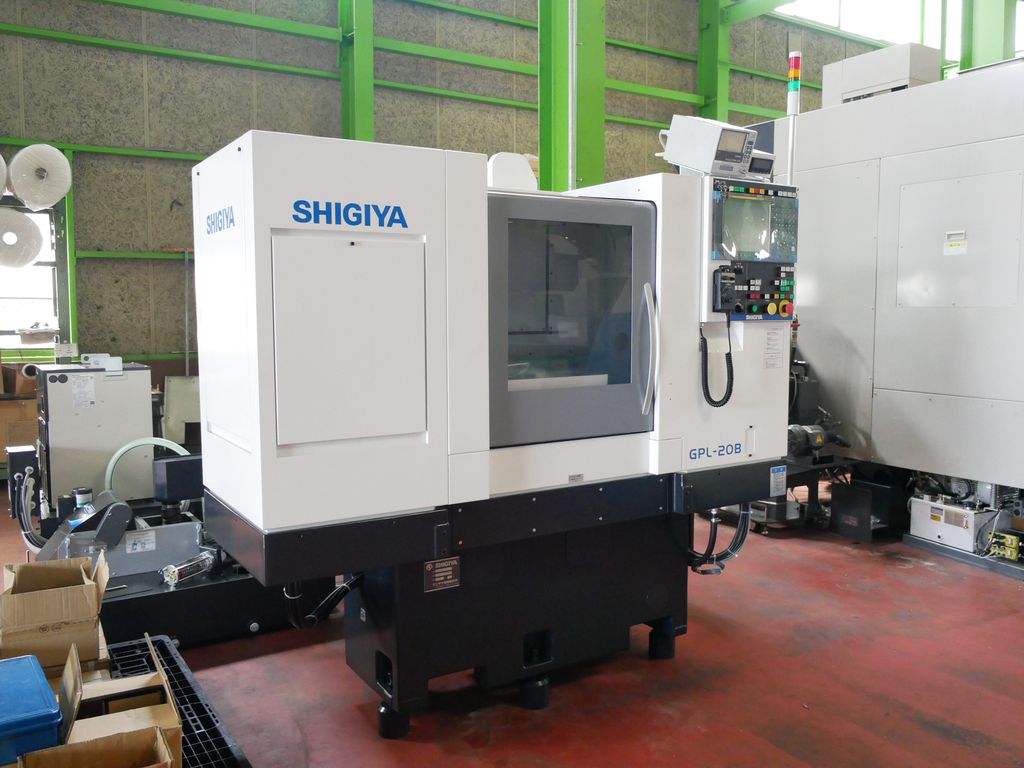

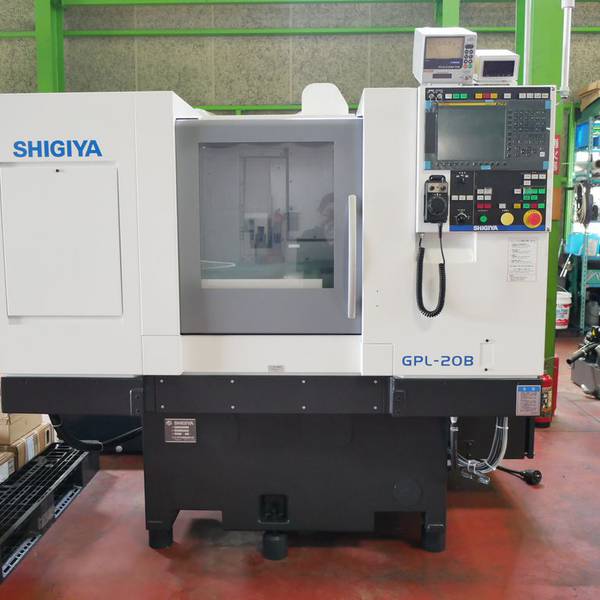

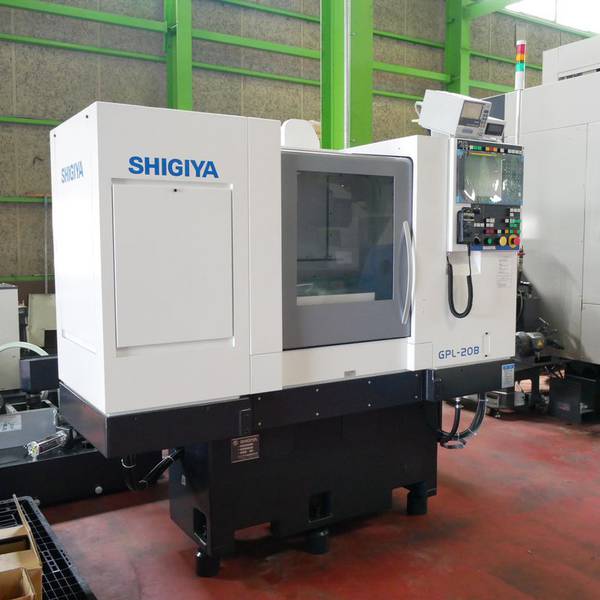

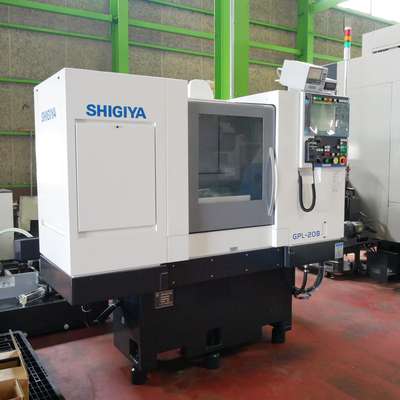

Photo (16)
