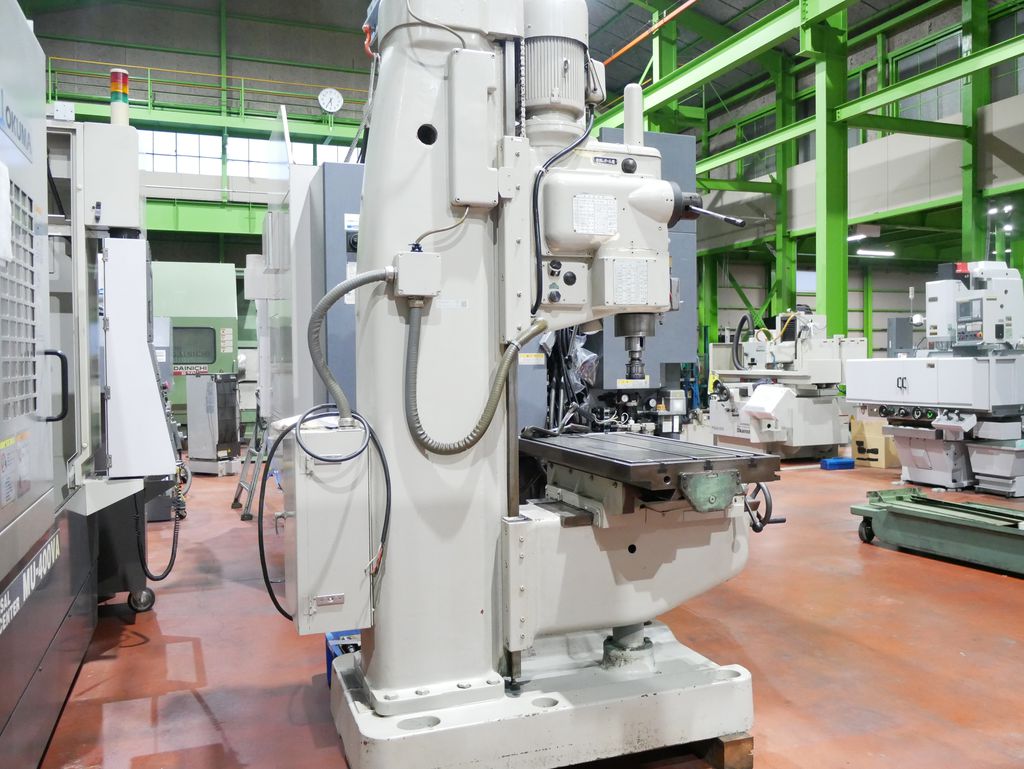

◆Maximum swing: 940mm
◆Drilling capacity (S45): 60mm
◆Tapping capacity (S45): M48
◆Bore capacity: 120mm
◆Distance from table top to spindle end: 750~0mm
◆Spindle vertical travel: 250mm (manual/automatic)
◆Spindle head vertical travel: 300mm

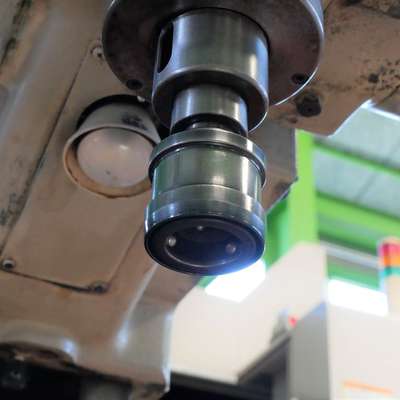

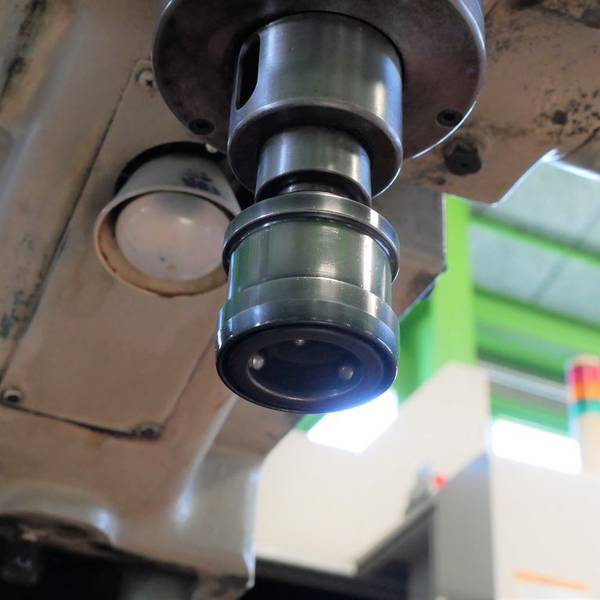

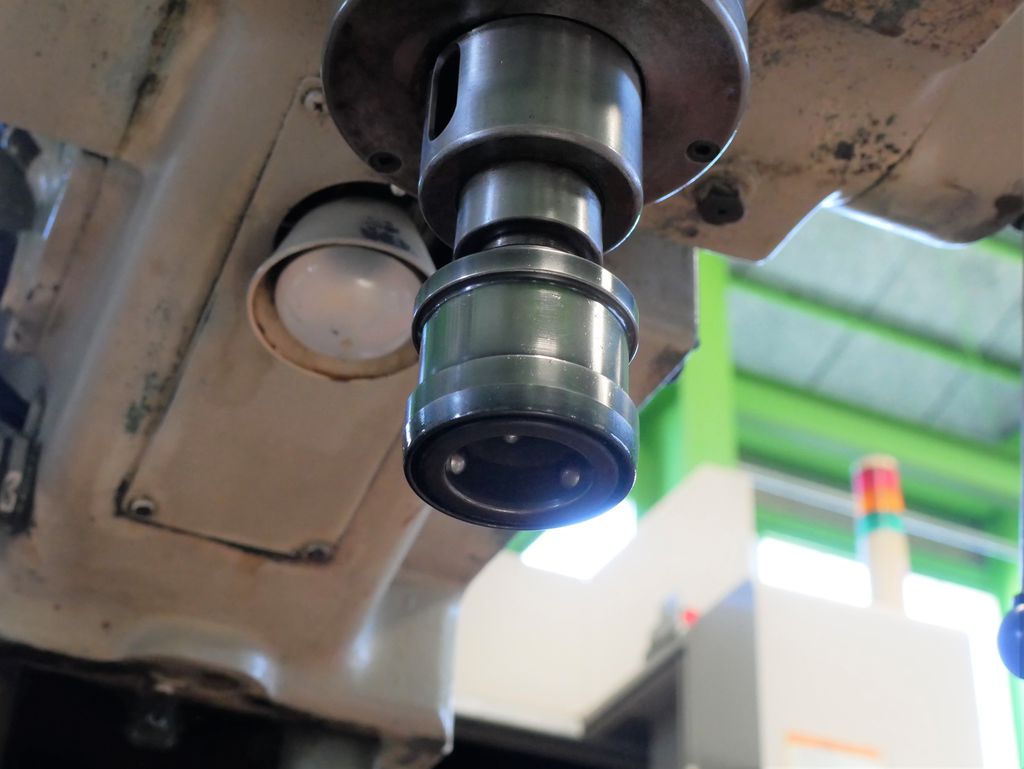

◆Spindle bore taper: M.T.No5

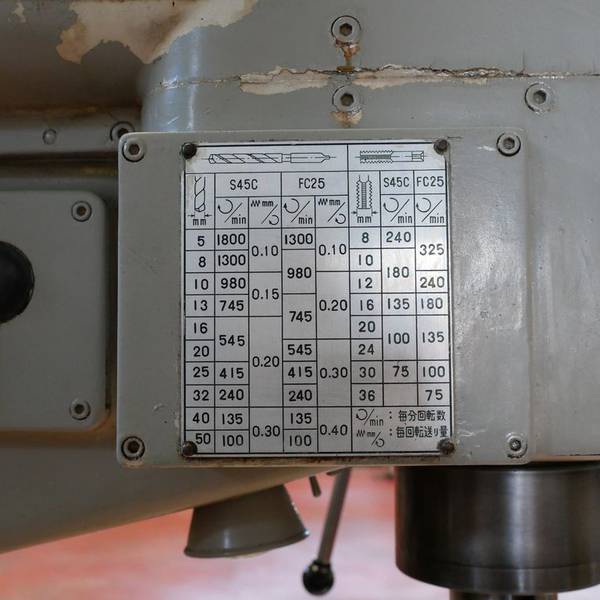

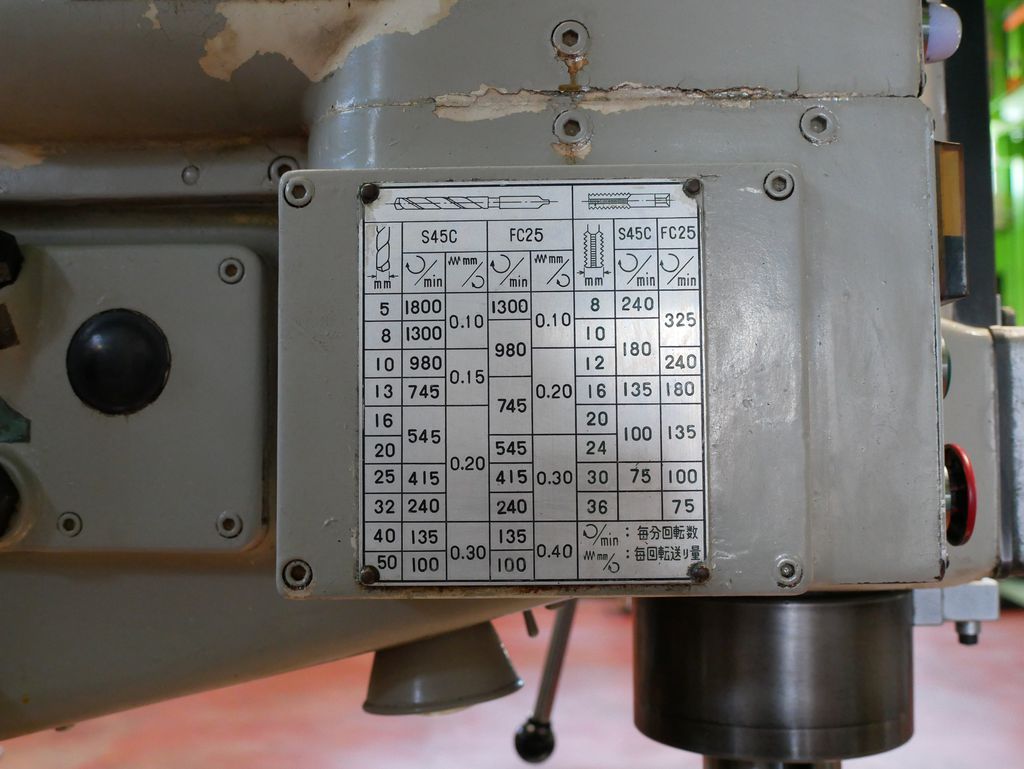

◆Spindle speed range (60Hz): 50~1200
　　　　　　　　　 (50Hz): 41~1000
◆Feed rate: 0.05~0.4

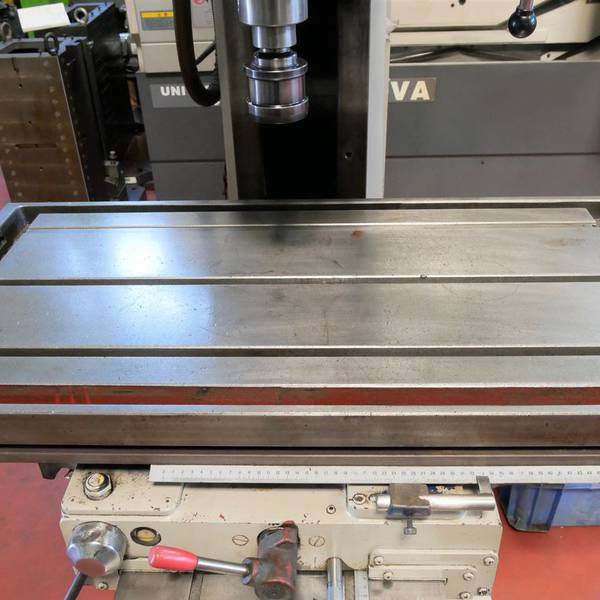

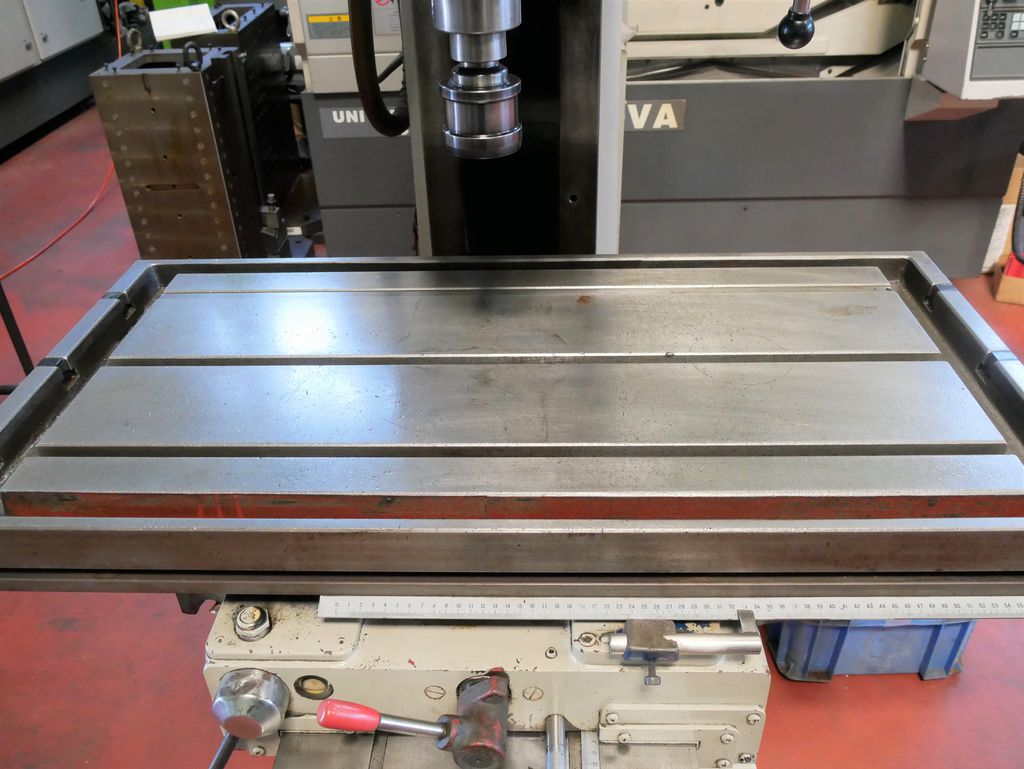

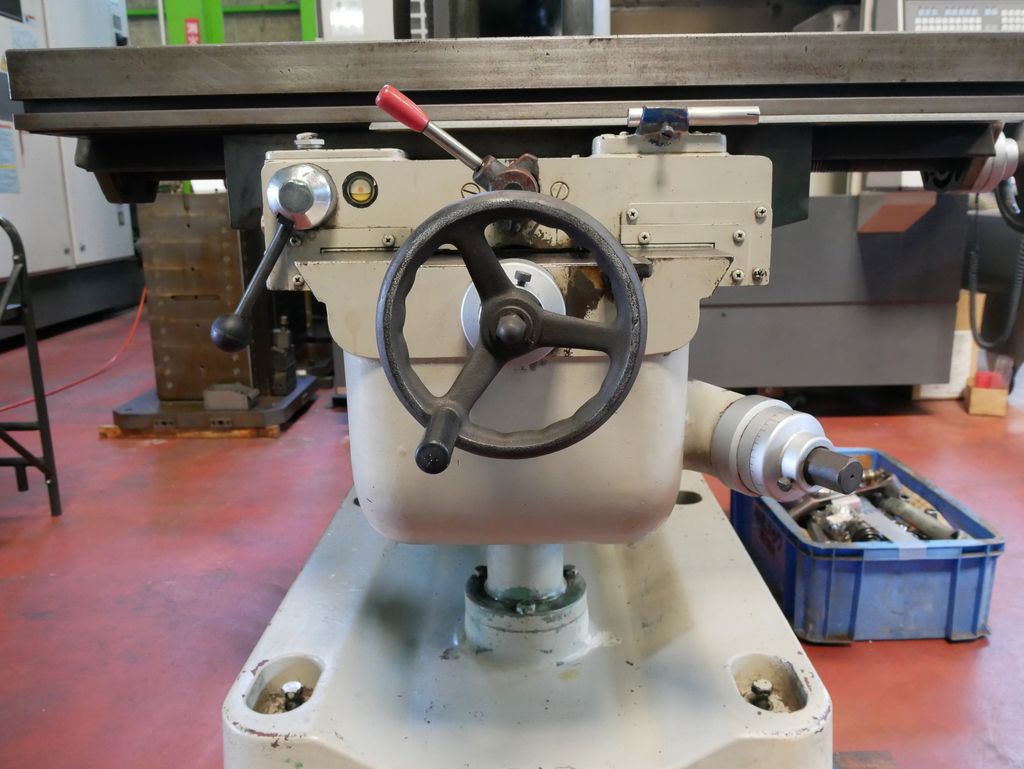

◆Table working surface size: 500mm x 1000mm
◆Table travel (vertical): 290mm
　　　　　　 (front/back): 300mm
　　　　　　(Left and right): 600mm
◆ Required floor space (width x depth): 817 x 1610mm
◆ Machine height: 2665mm
◆ Installed motor (for spindle): 3.7kW-6P
　 (for lifting): 0.75kW-4P
◆ Net weight: 1600kg

✤ In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
