◆Maximum machining volume (X, Y, Z) (mm): 920 x 350 x 450
◆Table horizontal (X-axis) (mm): 920
◆Table front-back (Y-axis) (mm): 350

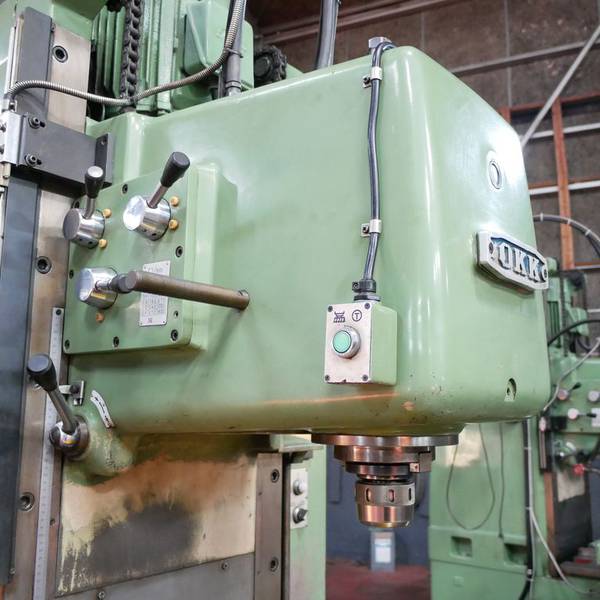

◆Spindle head vertical (Z-axis) (mm): 450
◆Distance between spindle end and table top (V only) (mm): 100-550
◆Distance between spindle center and column front (V only) (mm): 410
◆Distance between spindle center and table top (P only) (mm): 30-480
◆Distance between spindle center and overarm bottom (P only) (mm): 150

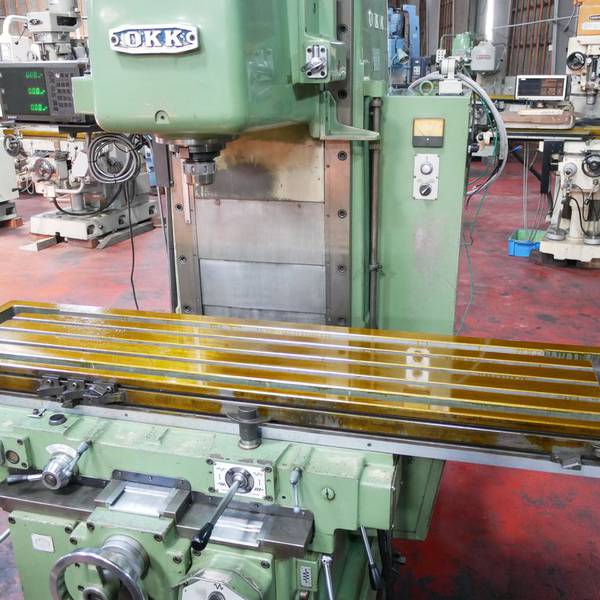

◆Table dimensions (L x W) (mm): 1,650 x 380
◆Number of table grooves and dimensions (mm): 3 x 18H8
◆Maximum load weight (kg): 1,000

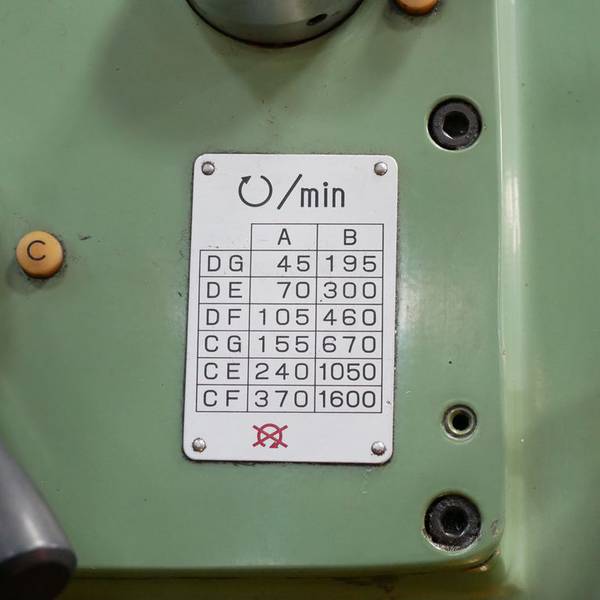

◆For spindle drive (P x KW): 4 x 7.5

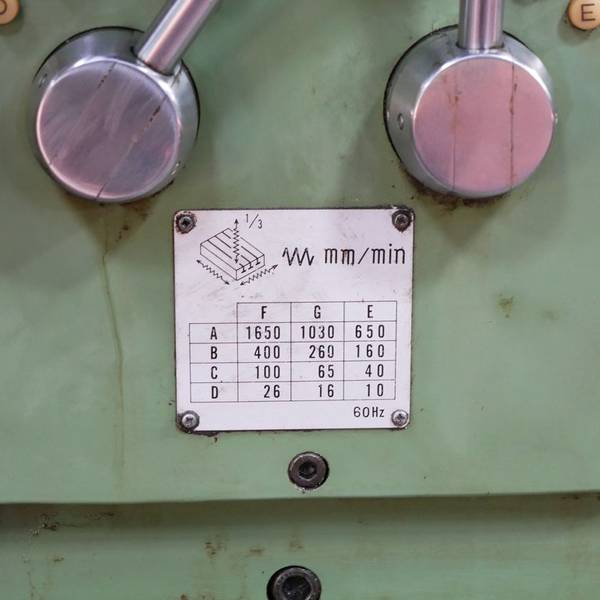

◆For feed drive (P x KW): 4 x 1.5

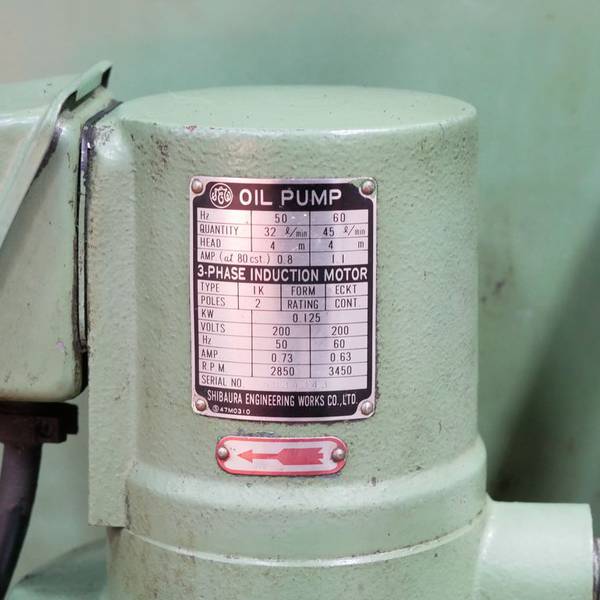

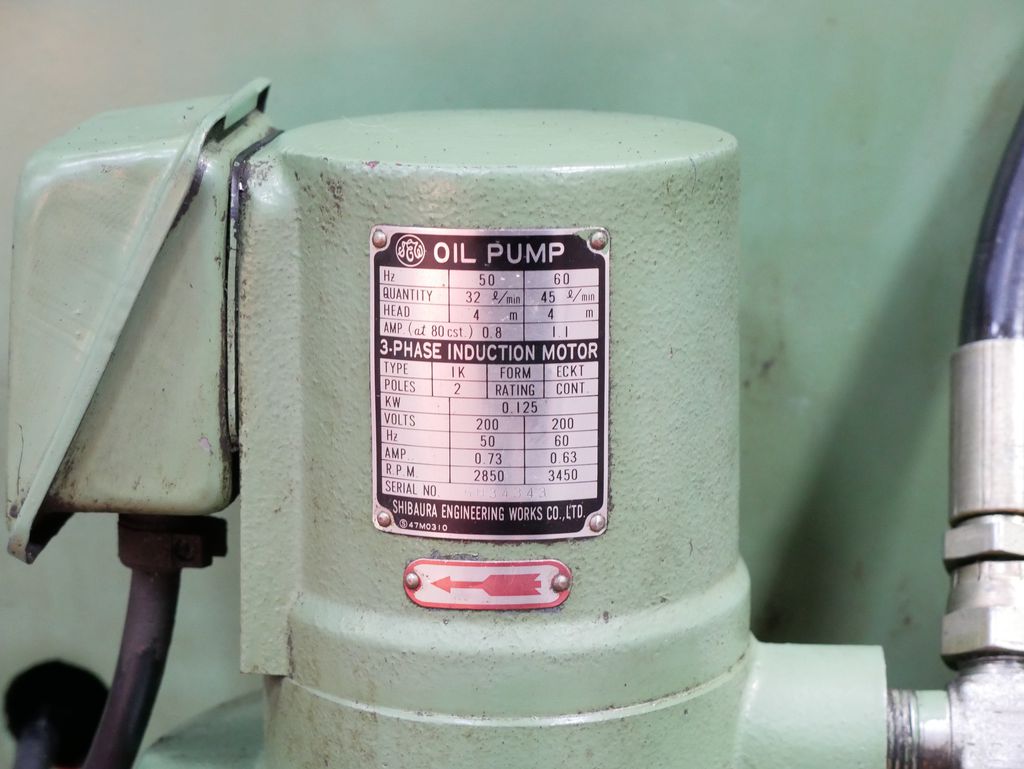

◆For cutting oil pump drive (P x W): 2 x 125
◆Machine weight (kg): 4,200
◆Installation area required (mm): 3,075 x 1,860

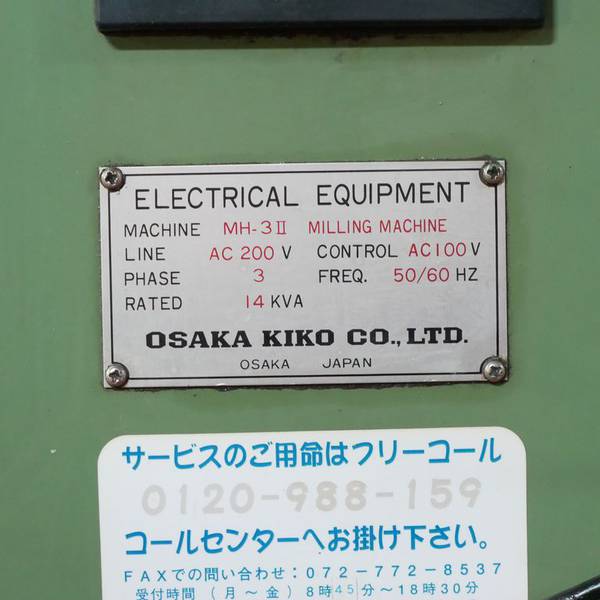

◆Total power supply capacity AC200/220V, 50/60Hz (KVA): 14

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
