◆Maximum table left/right travel distance: 720
◆Maximum table front/back travel distance: 260
◆Spindle head up/down: 360
◆Distance between spindle tip and table top: 80-440
◆Distance between spindle center and column: 310

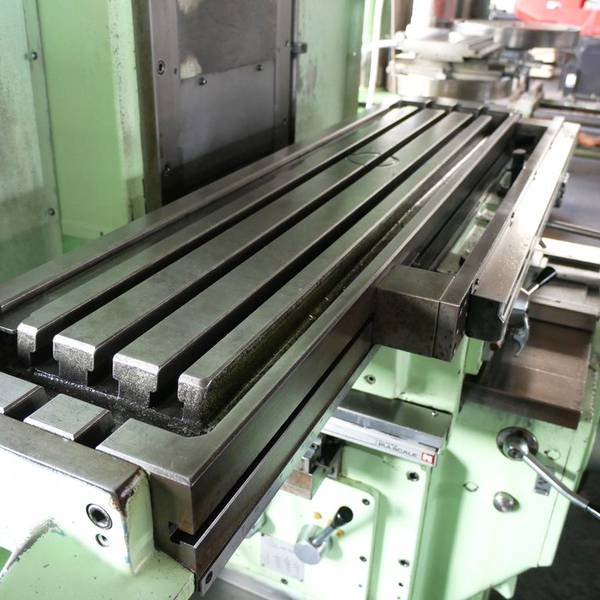

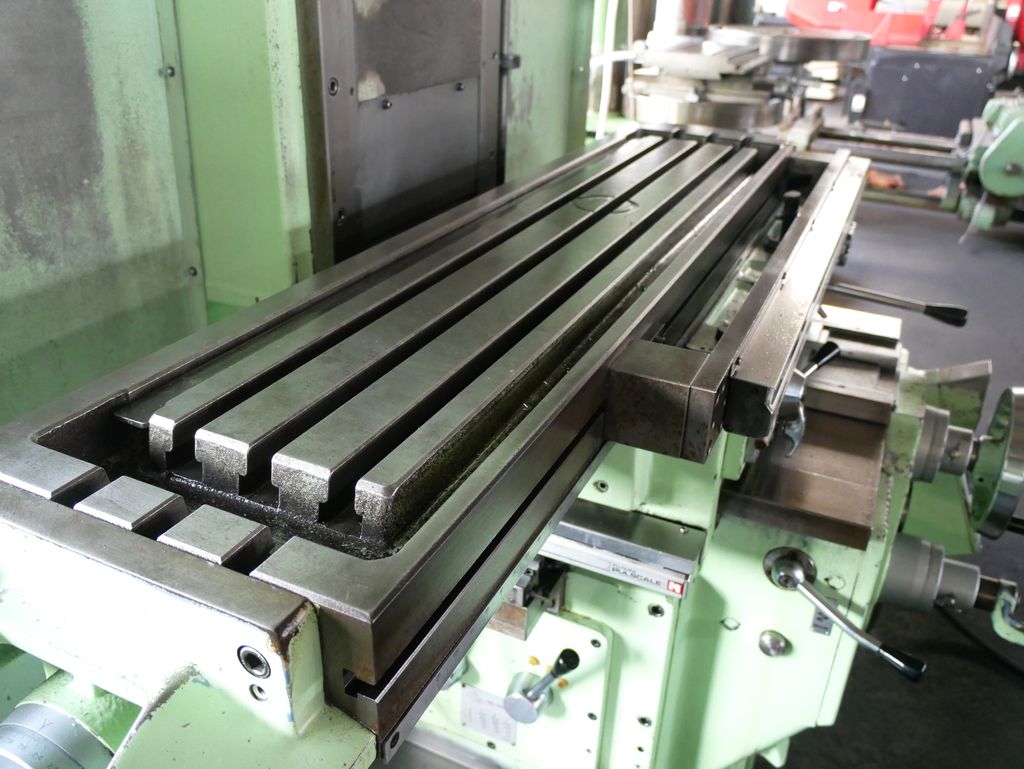

◆Table dimensions: 1310 x 290
◆Number and dimensions of table grooves: 3 x 18H8
◆Spindle bore taper: JIS B-6101 No. 50
◆Spindle tip diameter: 128.570
◆Number of spindle rotation conversions: 12

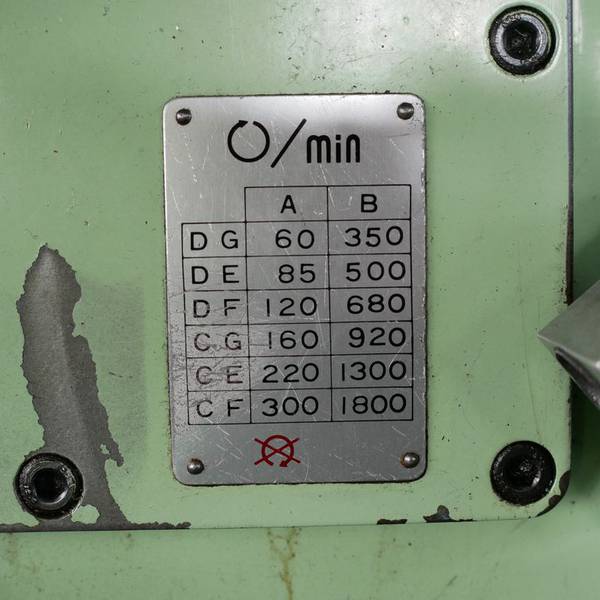

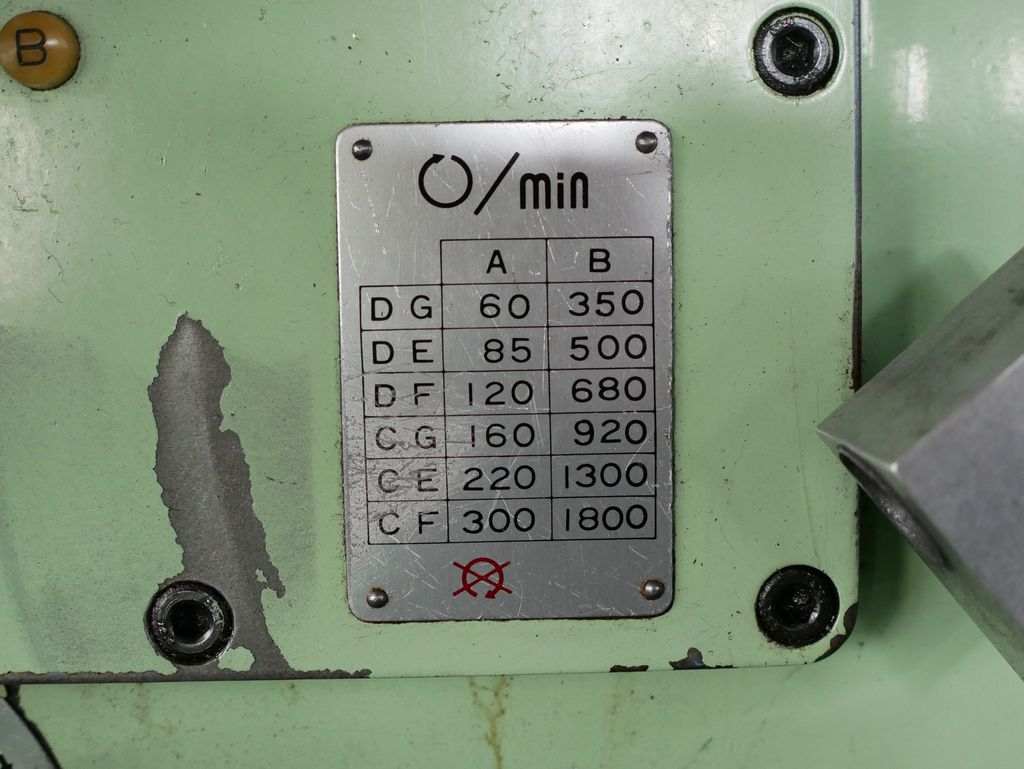

◆Spindle rotation speeds: 60, 85, 120, 160, 220, 300, 350, 500, 680, 920, 1300, 1800
◆Spindle reverse rotation: Supported
◆Number of feedrate conversions: 12
◆Table left/right/front/back feedrate 60Hz: 10, 16, 26, 40, 65, 100, 160, 260, 400, 650, 1030, 1650
◆Table left/right/front/back feedrate 50Hz: 8.5, 14, 22, 35, 55, 85, 140, 210, 350, 550, 860, 1400
◆Spindle head up/down feedrate: 1/3 of the above
◆Table left/right/front/back rapid traverse rate 60Hz: 3000
◆Table left/right/front/back rapid traverse rate 50Hz: 2500
◆Spindle head up/down rapid traverse speed: 1/3 of the above
◆Spindle motor output: 4P x 3.7
◆Feed motor output: 4P x 0.75
◆Cutting oil pump motor output: 2P x 50
◆Installation area: 2410 x 1600
◆Net weight: 2800

✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
