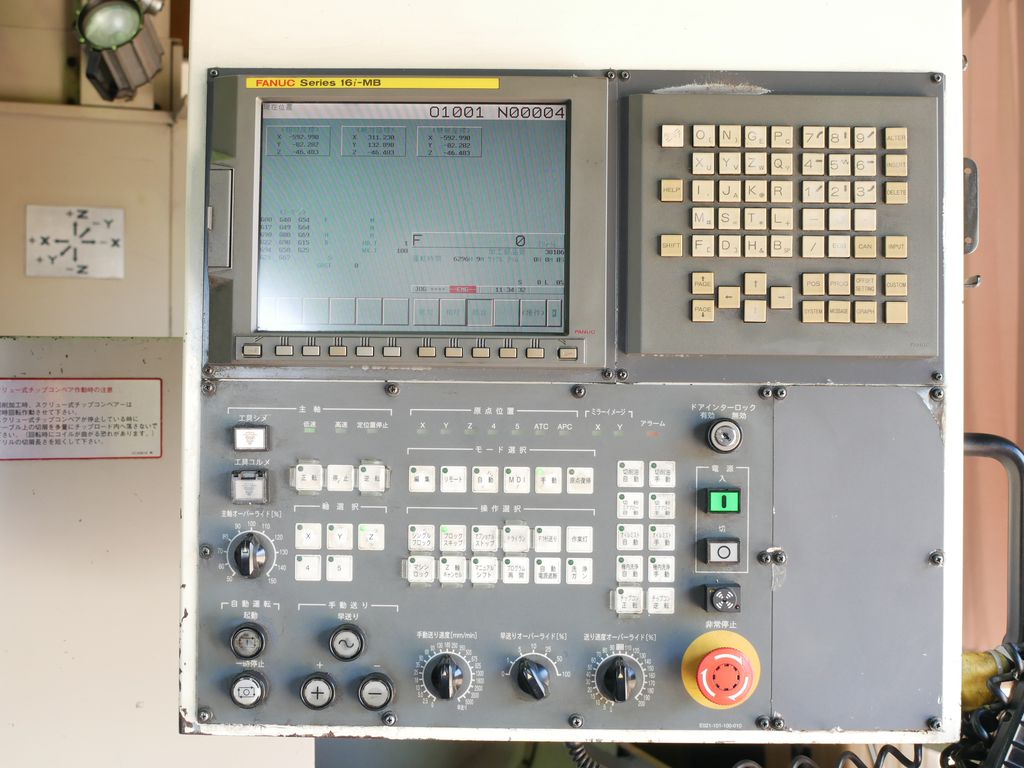

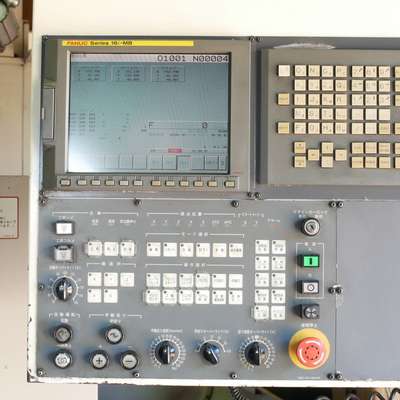

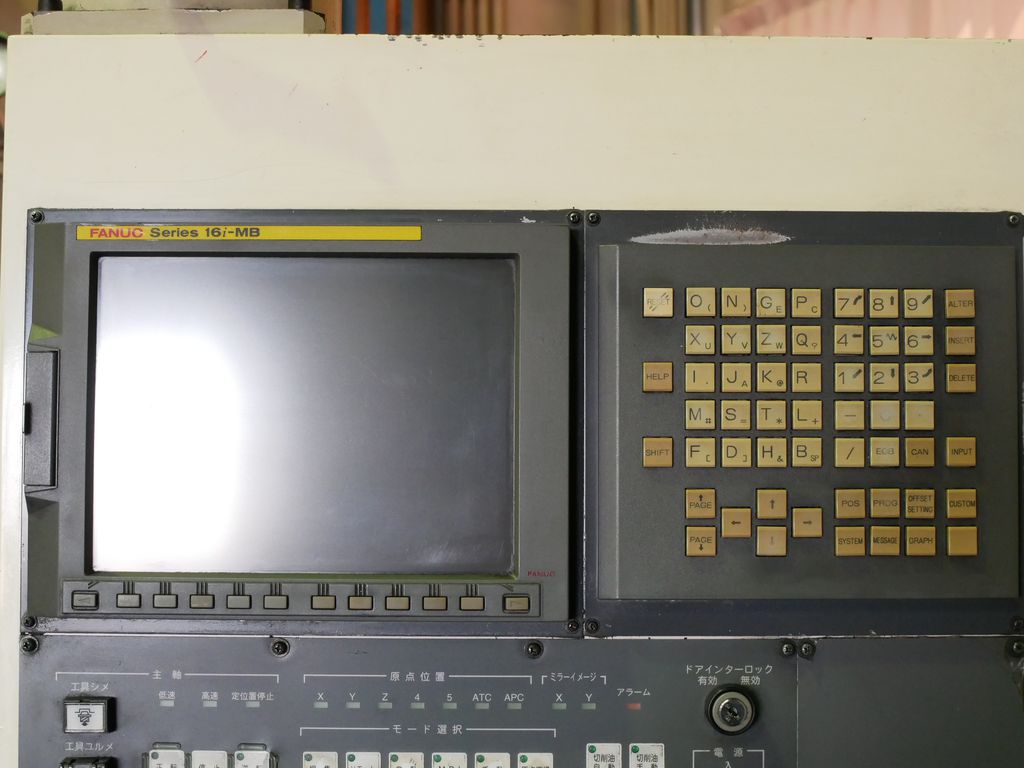

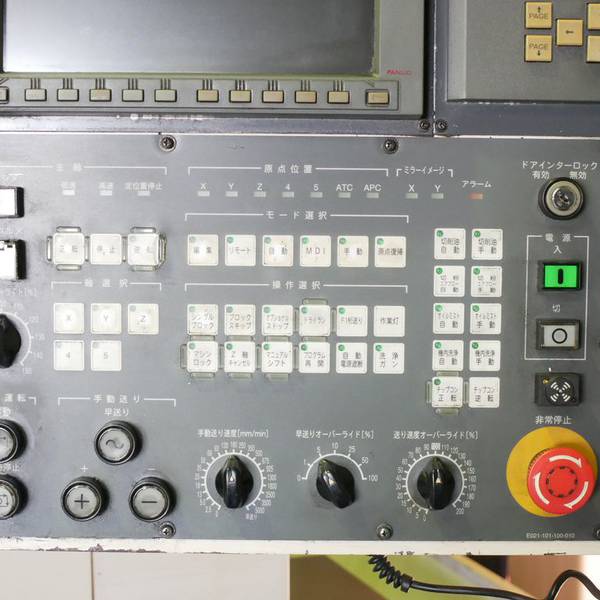

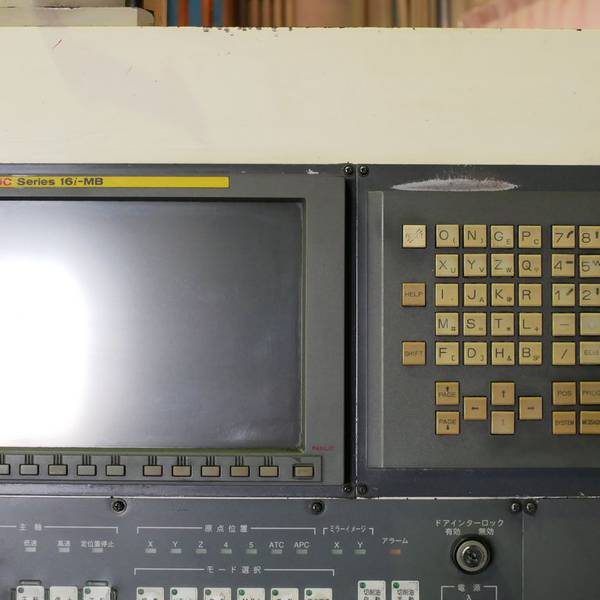

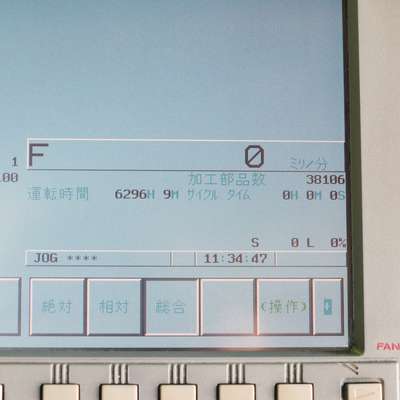

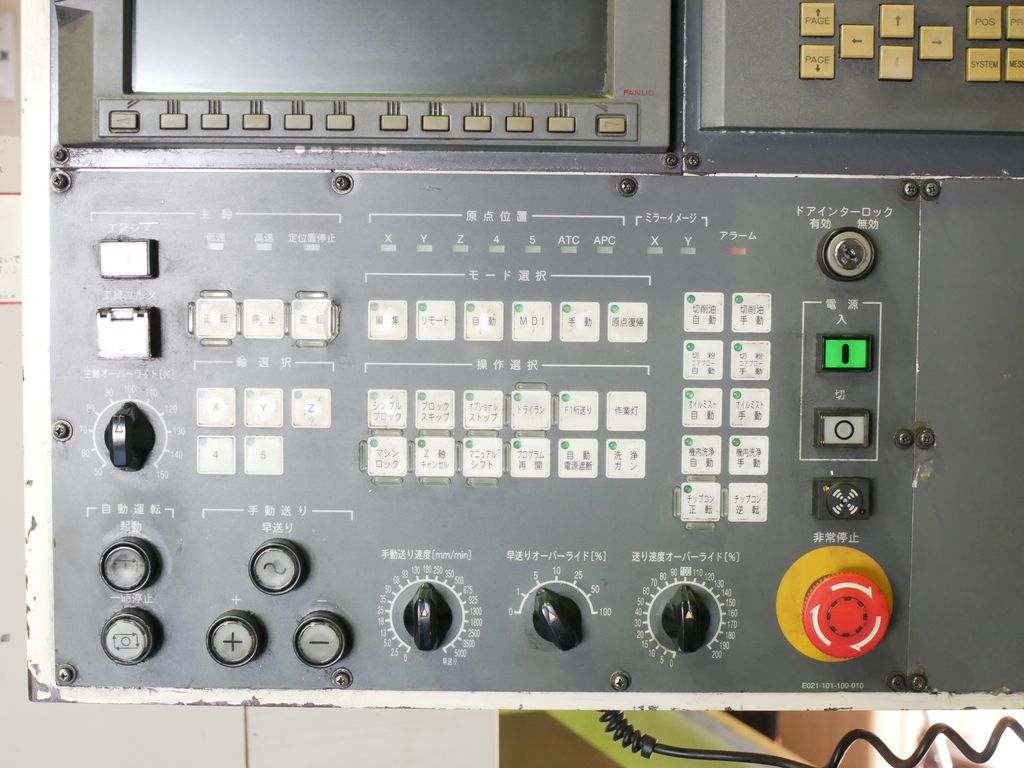

◆Controller: FANUC-16i-MB

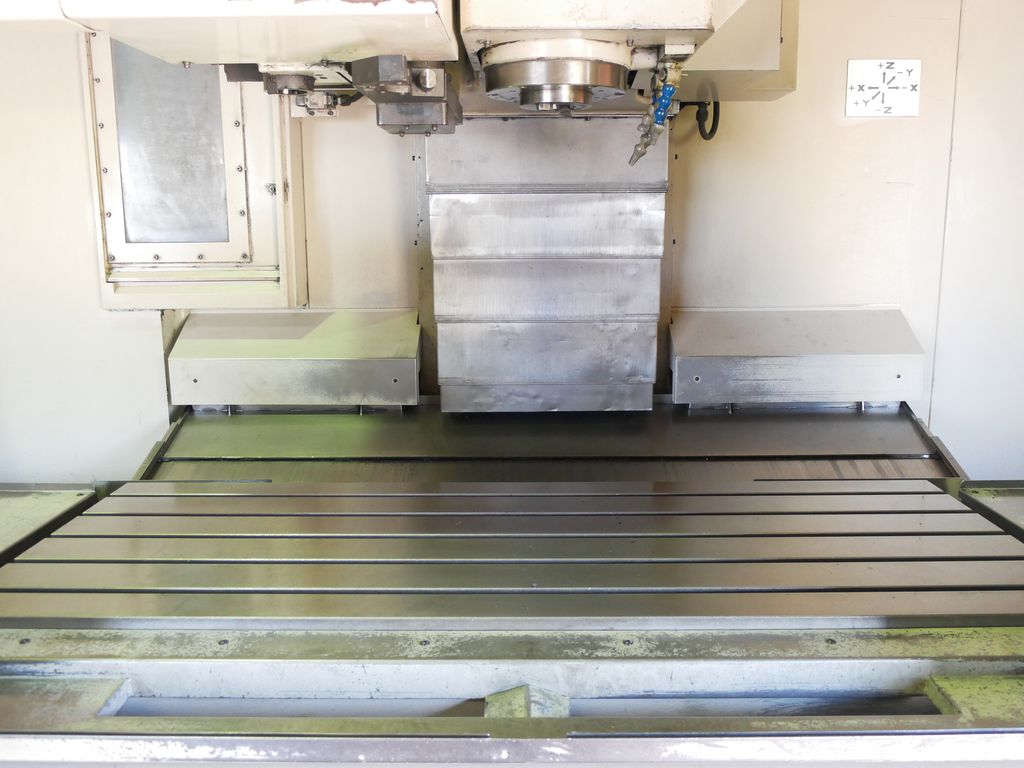

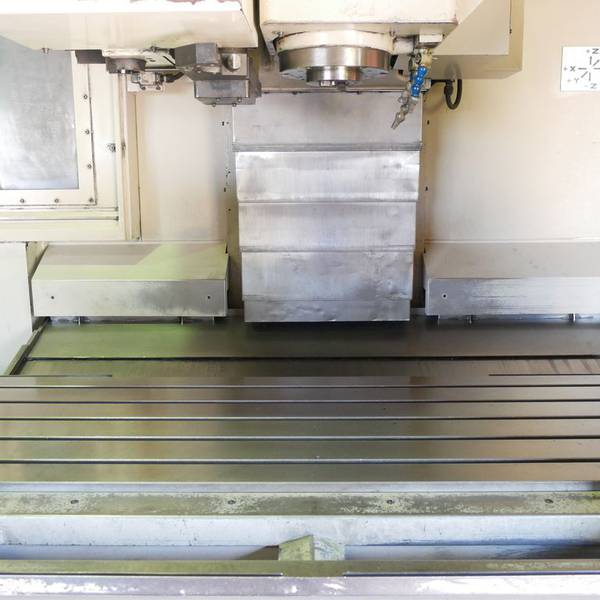

◆Table dimensions (working area): 1,400 x 610 mm
◆Table load capacity: 1,500 kg
◆Left-right (X-axis) travel distance: 1,100 mm
◆Front-back (Y-axis) travel distance: 610 mm
◆Up-down (Z-axis) travel distance: 560 mm
◆Spindle end to table top: 200 to 760 mm
◆Spindle center to column front: 650 mm
◆Rapid traverse rate: 20,000 (X, Y) 1 6,000 (Z) mm/min
◆Cutting Feed Rate: F4 digit 0.1 to 5,000, F1 digit 10 to 2,000 mm/min
◆Spindle Bore Taper: No. 50
◆Spindle Speed ​​(S4 digit direct specification): 20 to 4,000 min-1
◆Gear Shift: Automatic, 2-speed
◆Spindle Motor: VAC 11/15 kW
◆Feed Motor (X×Y×Z): 4×4×4 kW
◆Hydraulic Unit Motor: 2.2 kW
◆Hydraulic Unit Tank Capacity: 10 liters
◆Spindle cooling oil circulation pump motor: 200W
◆Spindle cooling oil tank capacity: 15 liters
◆Slideway lubrication motor: 17W
◆Slideway lubrication tank capacity: 6 liters
◆Cutting oil pump motor: 180W

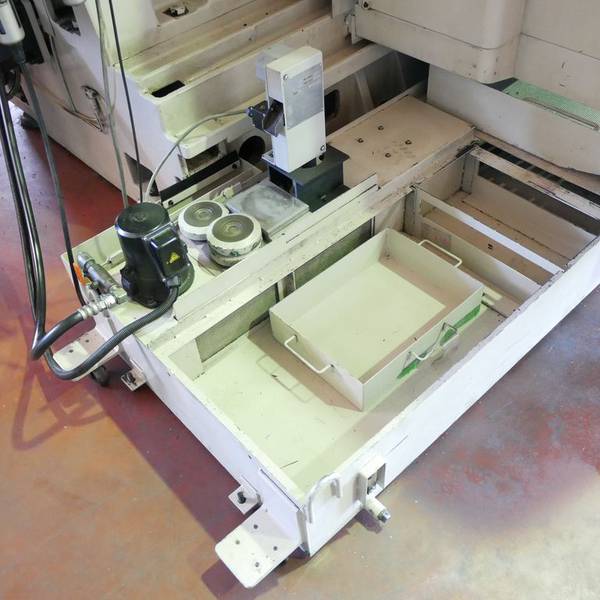

◆Cutting oil tank capacity: 300 liters
◆Floor to table top: 900 mm
◆Total machine height: 2,785 mm
◆Required floor space (side to side x front to back): 3,350 x 3,385 mm
◆Machine mass: 8,800 ( 9,300 kg

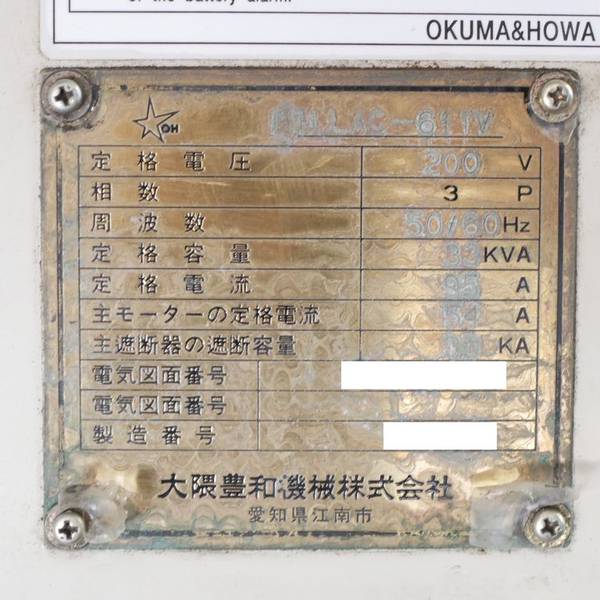

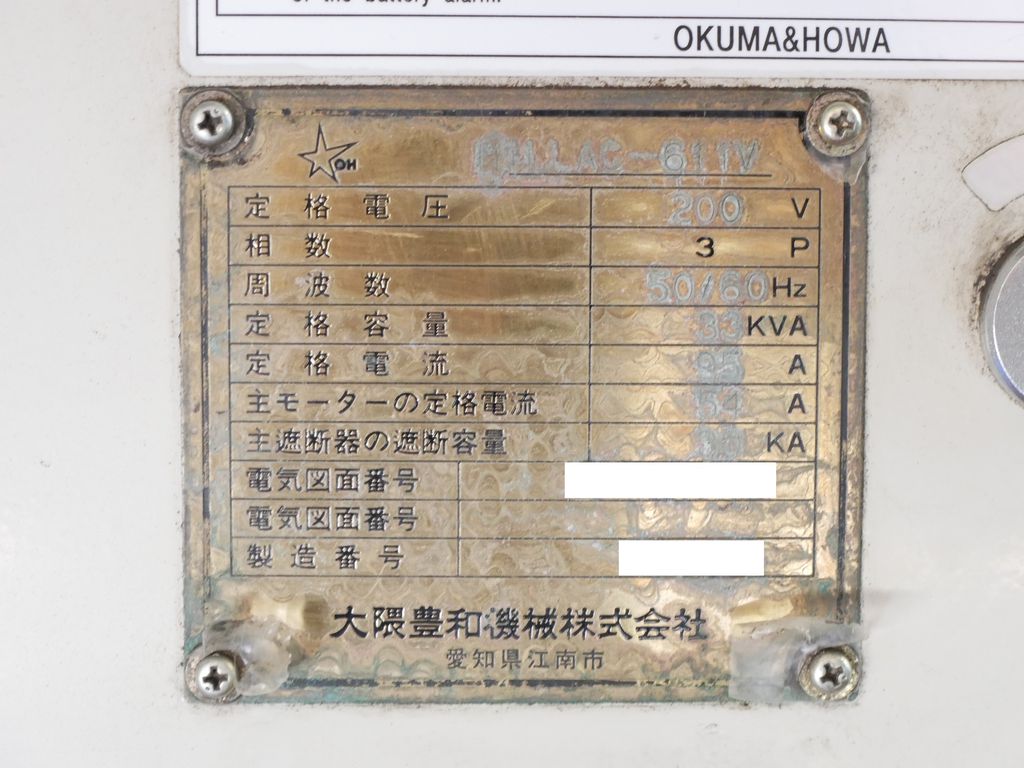

◆Maximum Power Consumption: 39 kVA
◆Tool Shank: MAS403-BT50
◆Tool Pull Stud: MAS407-P50T-II
◆Tool Selection Method: Random Memory
◆Maximum Tool Diameter (with adjacent tools): Φ120 mm
◆Maximum Tool Diameter (without adjacent tools): Φ150 mm
◆Maximum Tool Length: 400 mm
◆Maximum Tool Weight: 20 kg

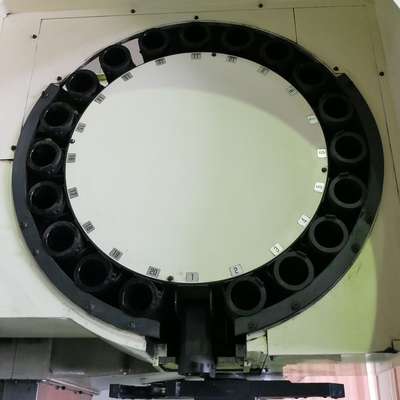

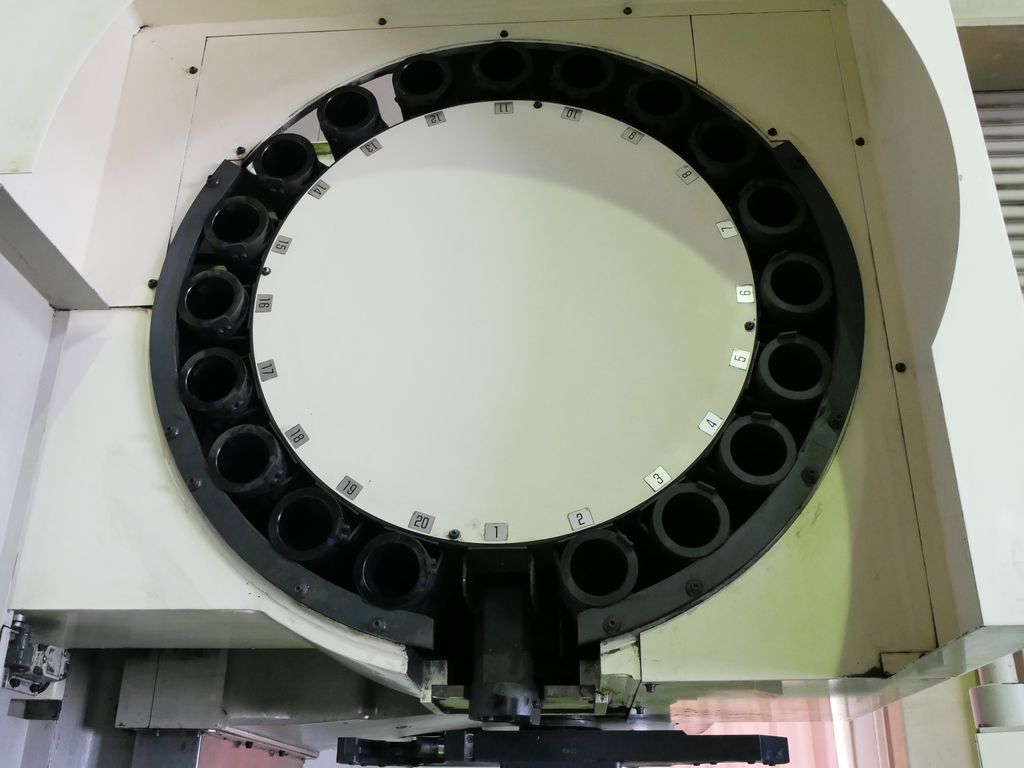

◆Number of Tools in Magazine: 20
◆Tool Change Time (TOOL to TOOL): 2.5 seconds
◆Tool Change Time (CHIP to CHIP): 7 seconds
◆Magazine Rotation Drive Motor: 800 W
◆ATC Arm Drive Motor: 750 W

✤In the event of any discrepancies between the specifications and the actual product, the actual product will take precedence.
