Yamazakigiken | 2019

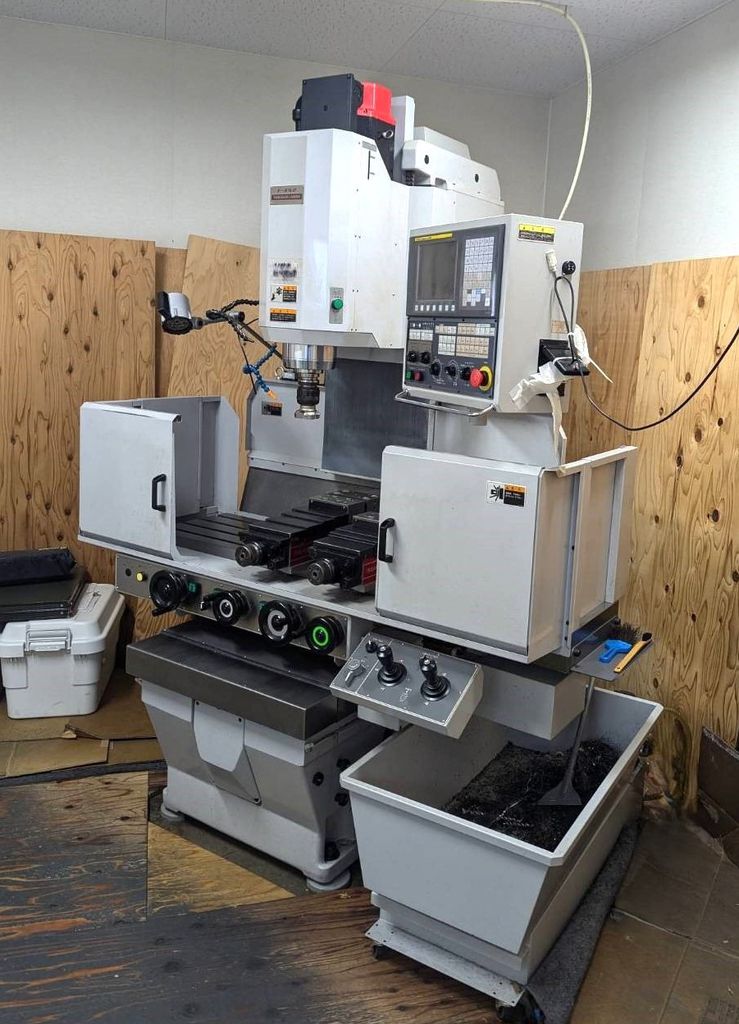

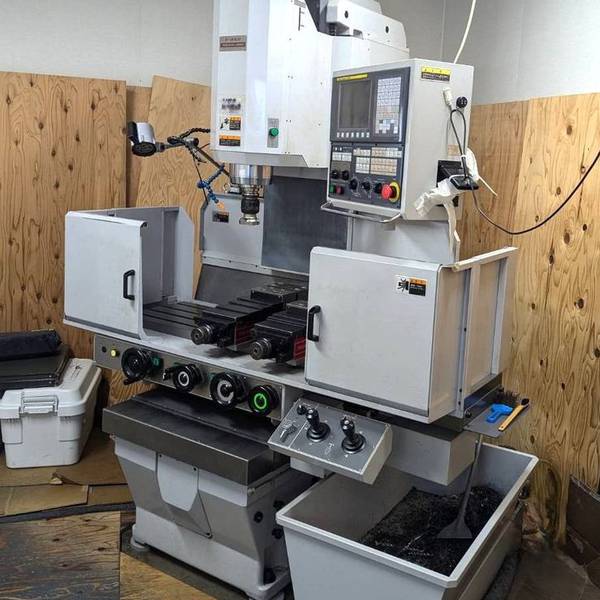

NC milling machine (F-352)
-
メーカー: Yamazakigiken
-
保管場所: Each sites型式: F-352
-
年式: 2019管理番号: 20302167
Specification
◆Control device: FANUC Oi-MF

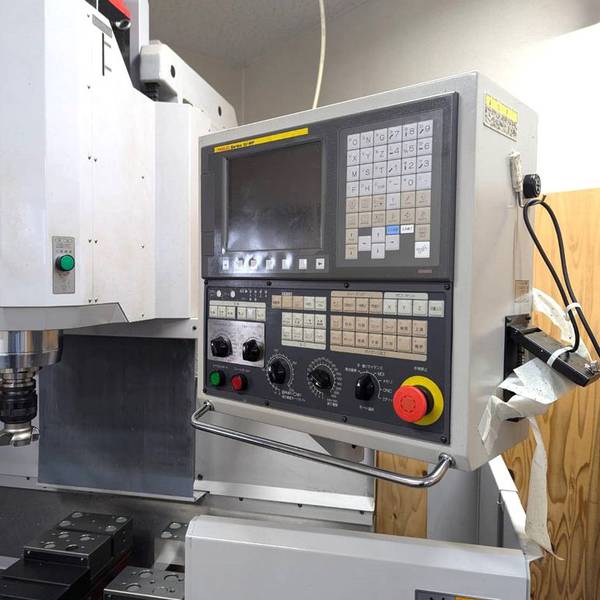

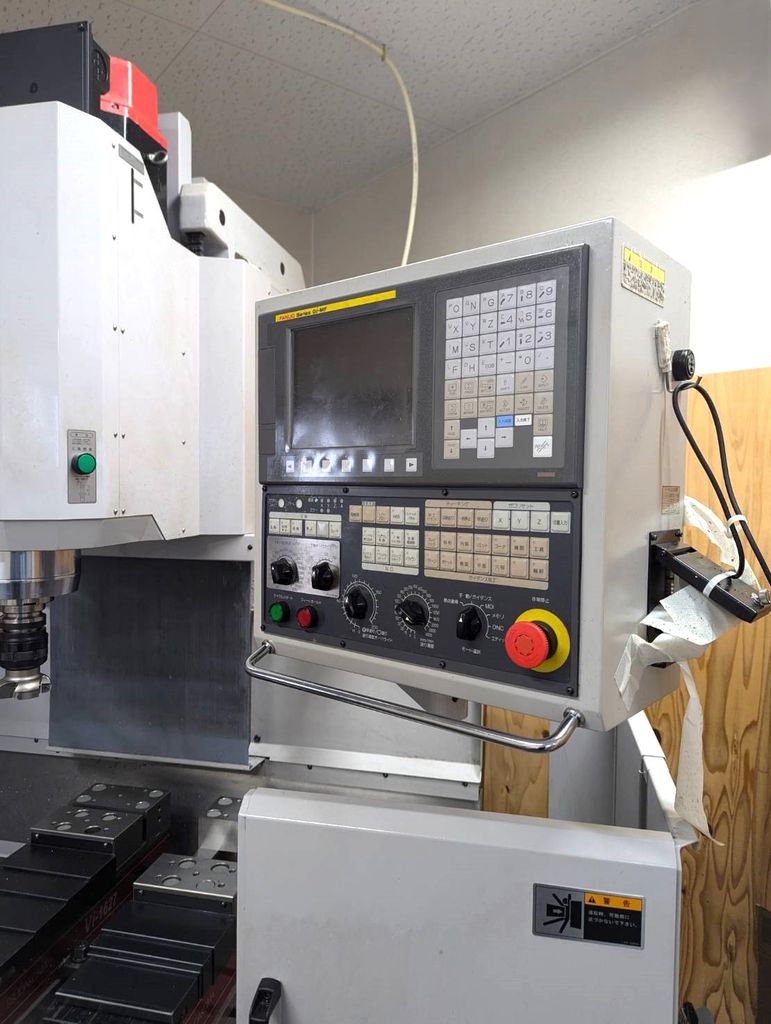

◆Control panel: General purpose/Guidance/NC
◆Number of control axes: 3 axes
◆Travel amount XYZ: 750×350×500mm
◆Distance from spindle end to table top (travel amount): min 115mm / max 615mm
◆Distance from spindle center to column guide surface (travel amount): 360mm
◆Table working area: 1400×350mm
◆Table load capacity: Approx. 500kg
◆Distance from floor to table top: 820mm
◆Maximum spindle rotation speed: 6000min-1
◆Spindle speed change: Automatic (Manual dial setting 21 steps Override 50-120%)
◆Spindle: 70mm
◆Spindle taper hole: 7/24 taper No.40
◆Tool mounting bolt shape: MAS-I
◆Tool shank shape: BT40
◆Cutting speed (automatic): 0-6000mm/min x 10-200%
◆Cutting speed (manual): 0-4000mm/min x 10-200%
◆Fast forward speed: 6000mm/min
◆Machine dimensions (left/right x front/back x height): 2660 x 1700 x 2295mm
◆Total machine weight: Approx. 2900kg
✤If there is a difference between the specifications and the actual product, the actual product will take precedence.
