Yamazakigiken | 2019

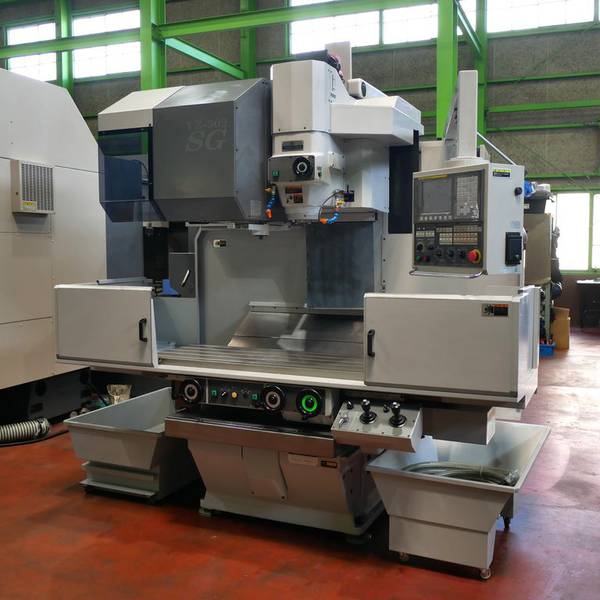

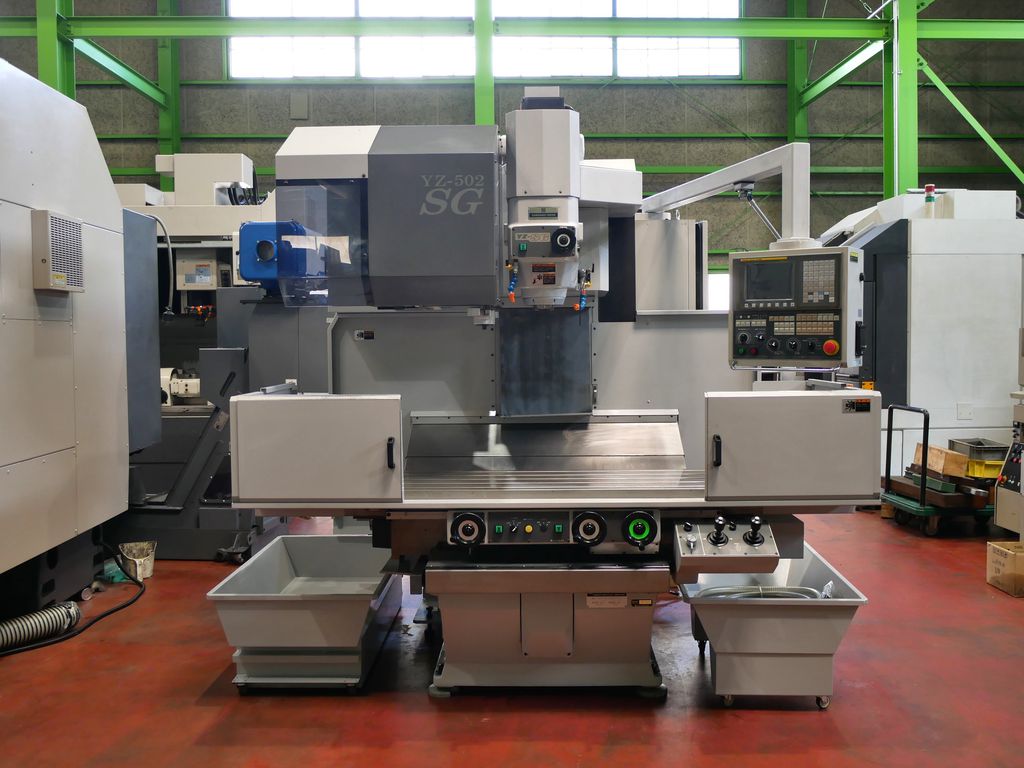

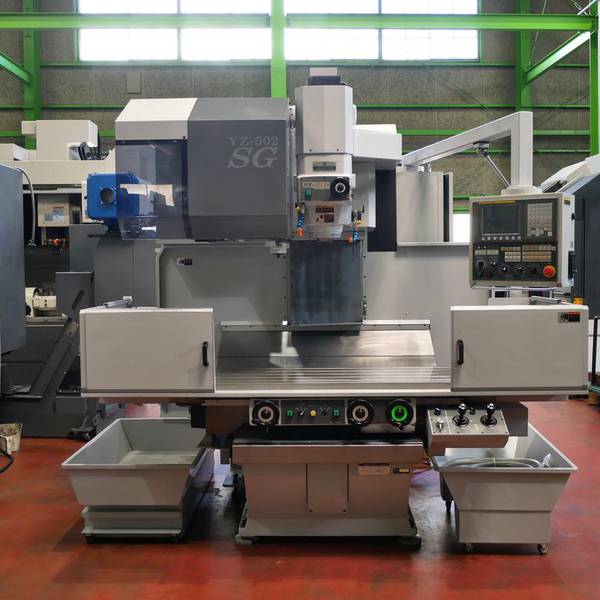

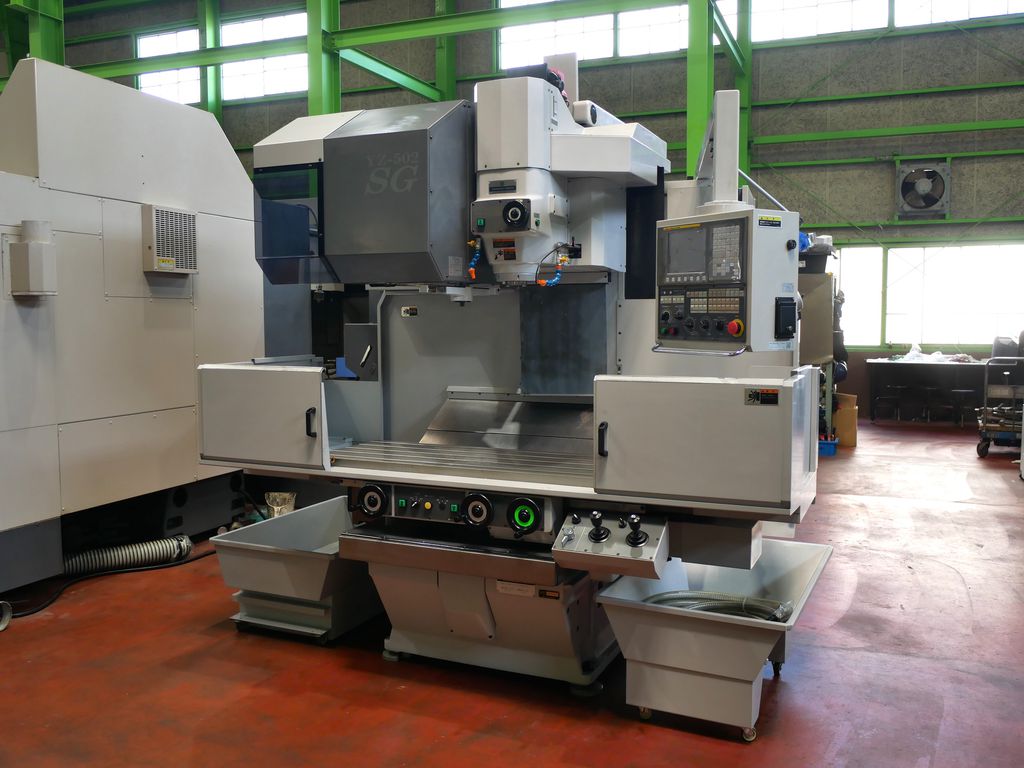

vertical machining center (YZ-502SG ATC)
-
メーカー: Yamazakigiken
-

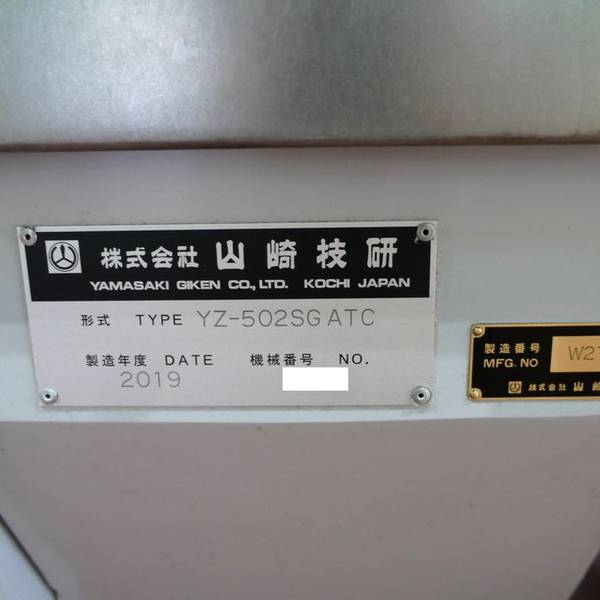

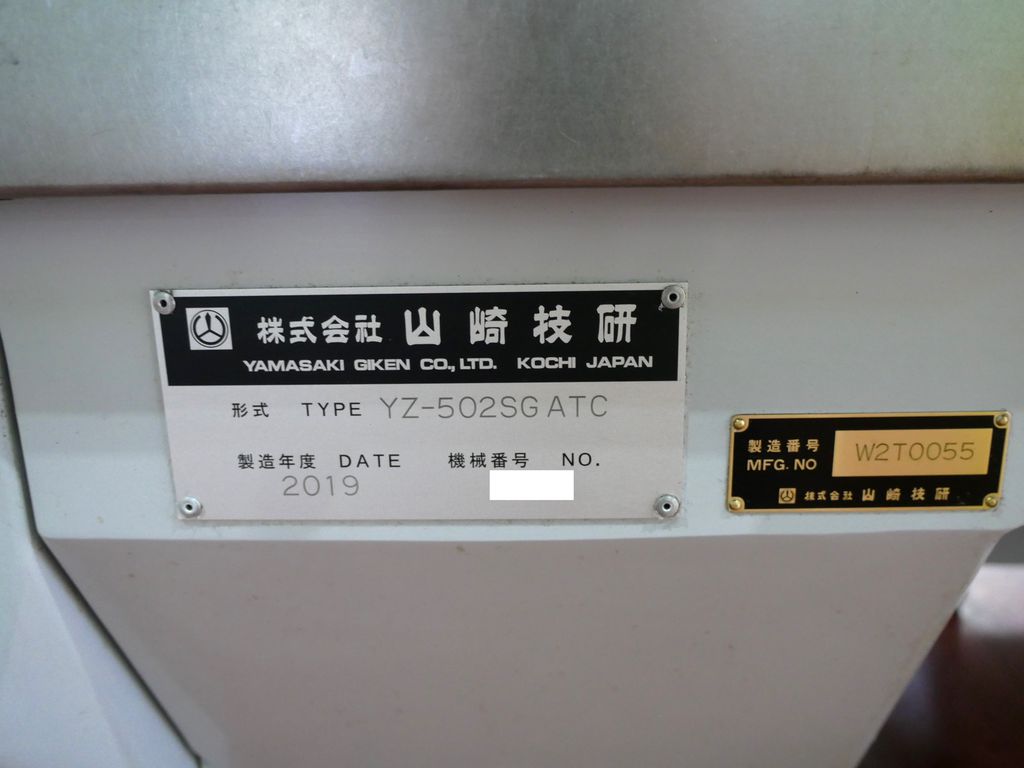

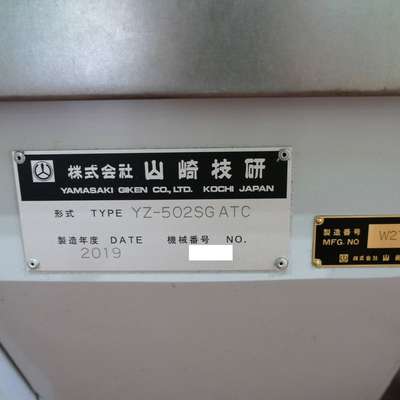

保管場所: Head office. Machine Plaza型式: YZ-502SG ATC
-
年式: 2019管理番号: 20302166
Specification

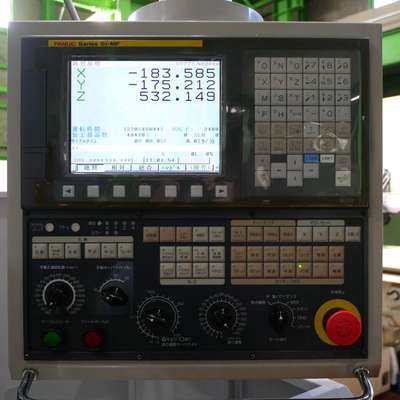

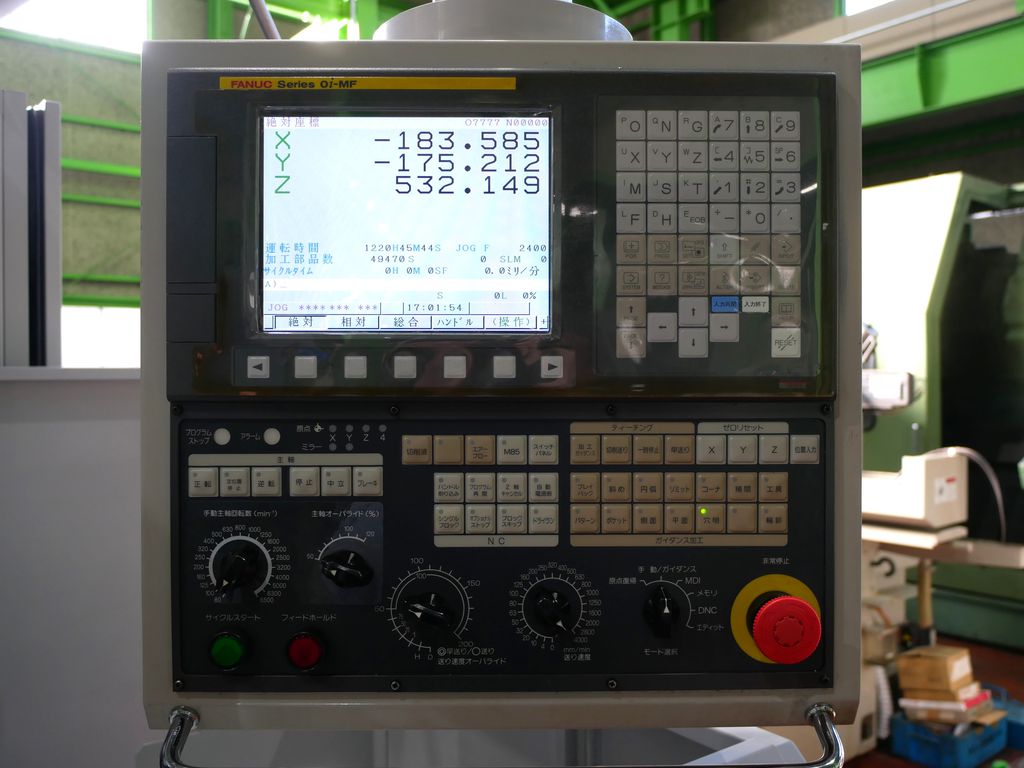

◆Control device: FANUC Oi-MF

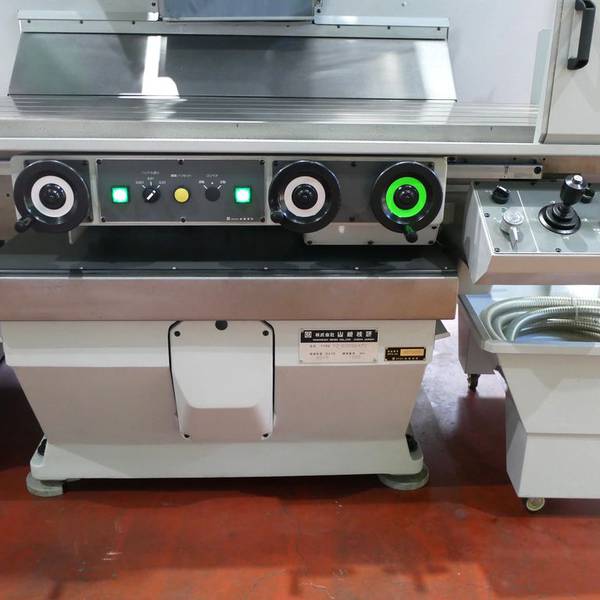

◆Control panel: General-purpose guidance function NC program
◆Number of control axes: 3 axes

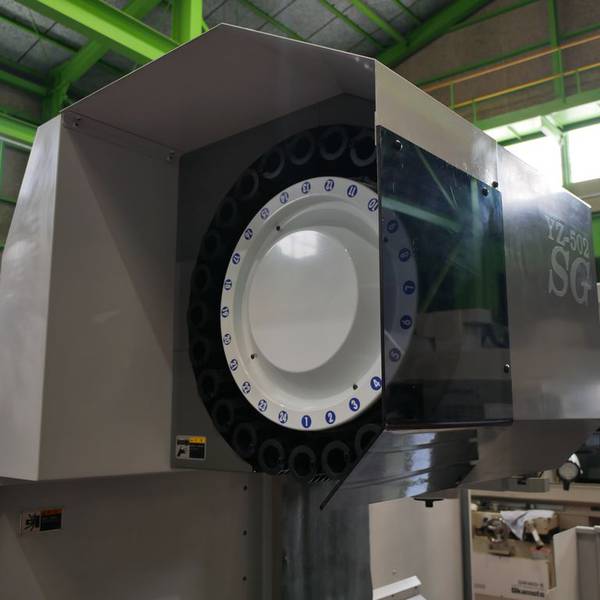

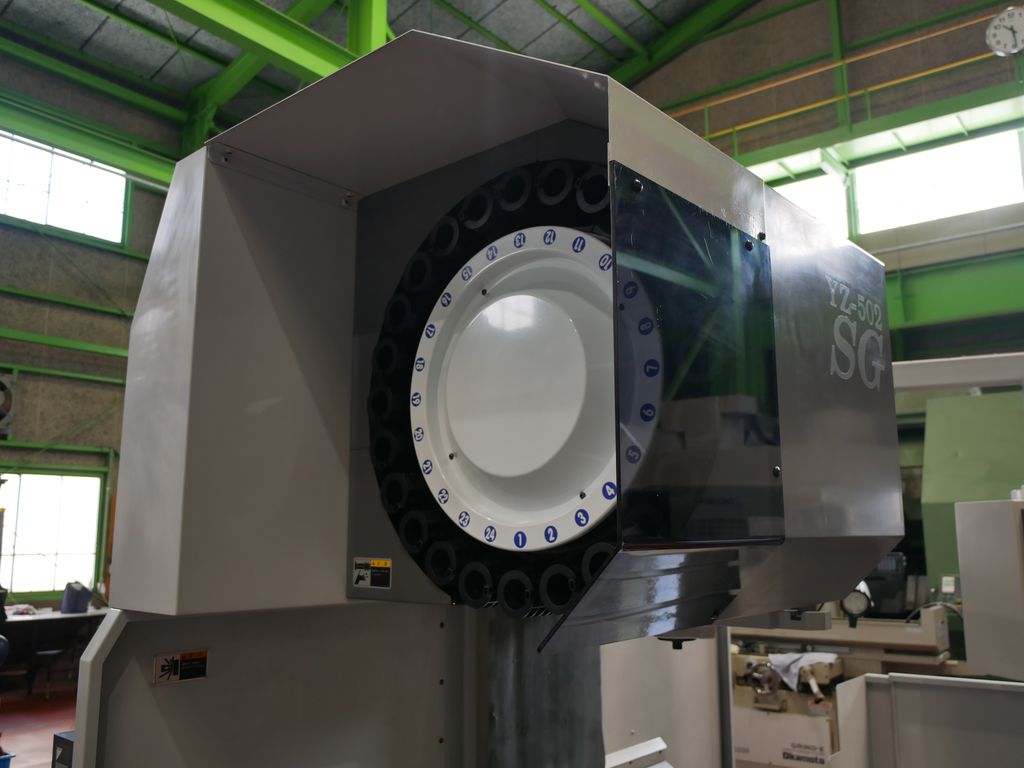

◆Number of ATC tool storage: 24
◆Travel: XYZ: 1050×550×550mm

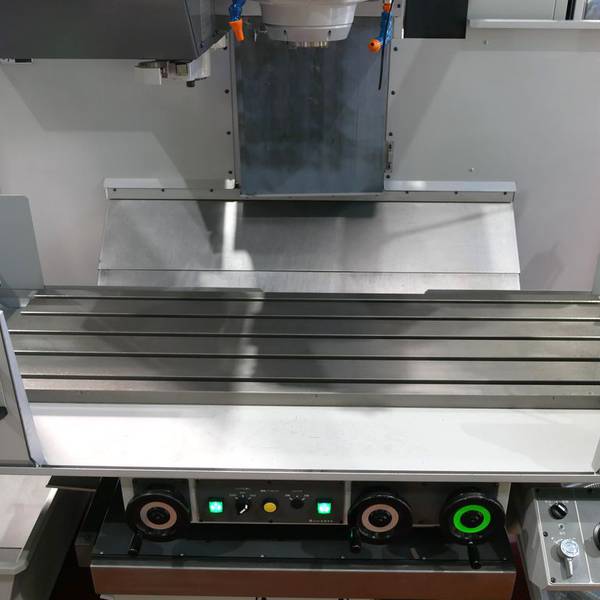

◆Table work area: 1600×500mm
◆Distance from spindle end to table top: min 150mm / max 700mm
◆Distance from spindle center to column guide surface: 510mm
◆Distance from floor to table top: 820mm
◆Maximum spindle rotation speed: 8500min-1
◆Spindle speed change: Automatic speed change (Manual dial setting 20 steps Override 50-120%)

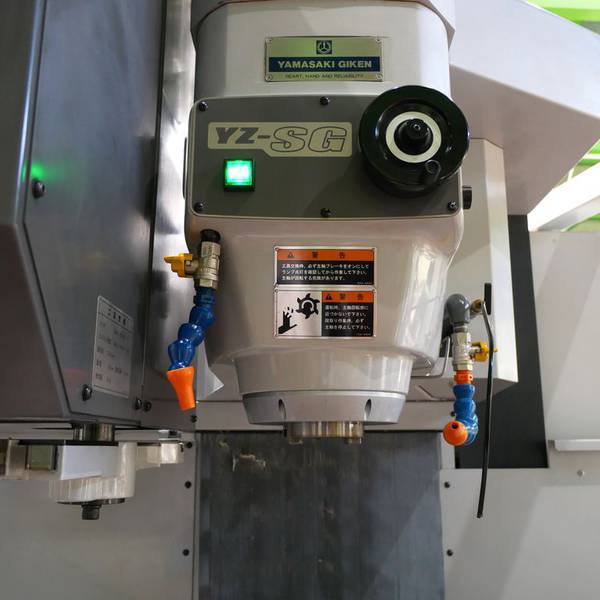

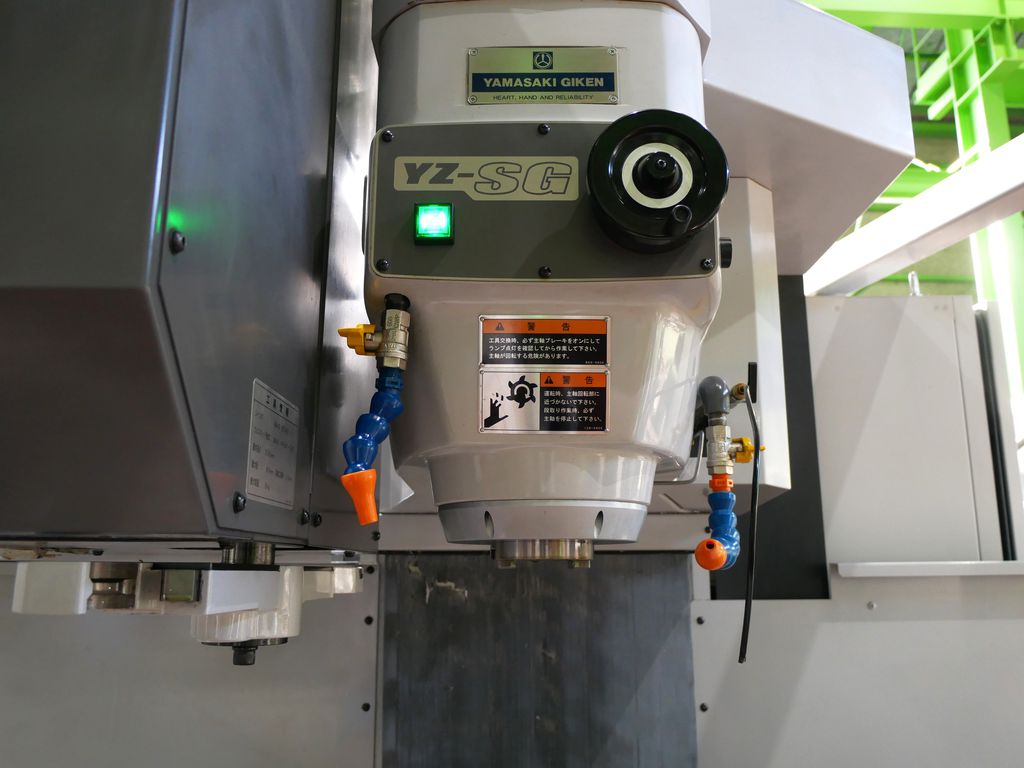

◆Spindle bearing diameter: 70mm
◆Spindle taper hole: No.40
◆Two-sided constraint spindle
◆Tool mounting bolt shape: MAS-I
◆Fast forward speed (XYZ): 10000mm/min
◆Cutting speed (automatic): 0-6000mm/min x 10-200% (MAX6000)
◆Cutting speed (manual): 4-4000mm/min x 10-200% (MAX6000)
◆Cutting fluid device (tank capacity 100L) with chip bucket
◆Machine required dimensions (left/right x front/back x height): 3350 x 2270 x 2572mm
◆Total machine weight: Approximately 5250kg
✤If there is a difference between the specifications and the actual product, the actual product will take precedence.
