◆Swing above bed: 630
◆Center distance: 2000
◆Swing above cut-off: 900

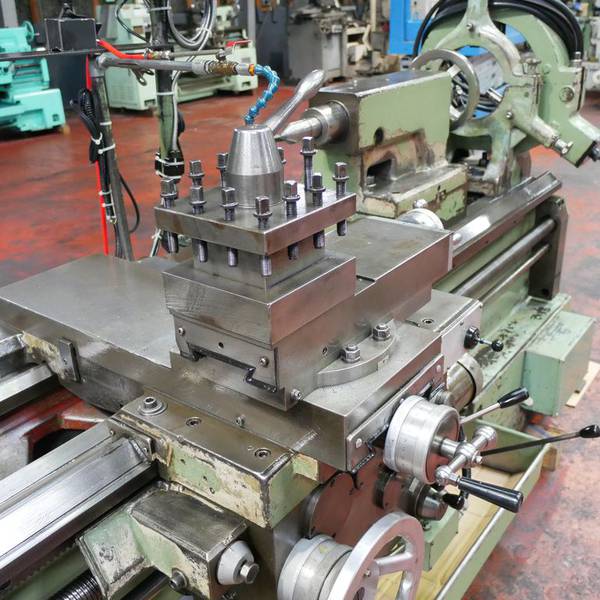

◆Swing above carriage: 400
◆Bed length: 3400
◆Bed width: 425

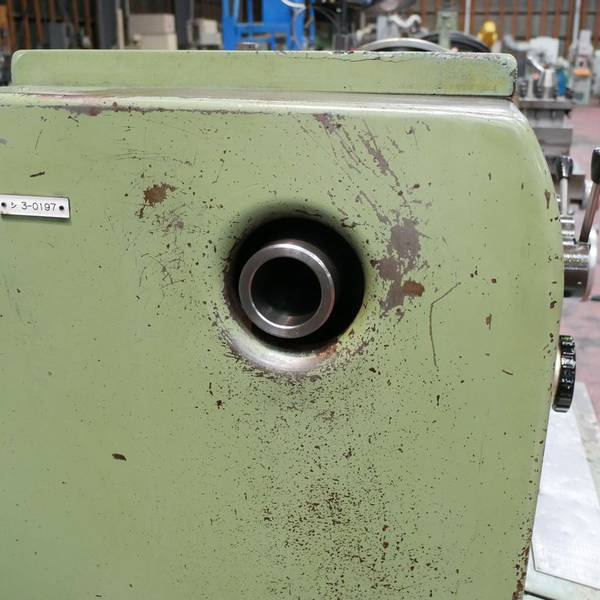

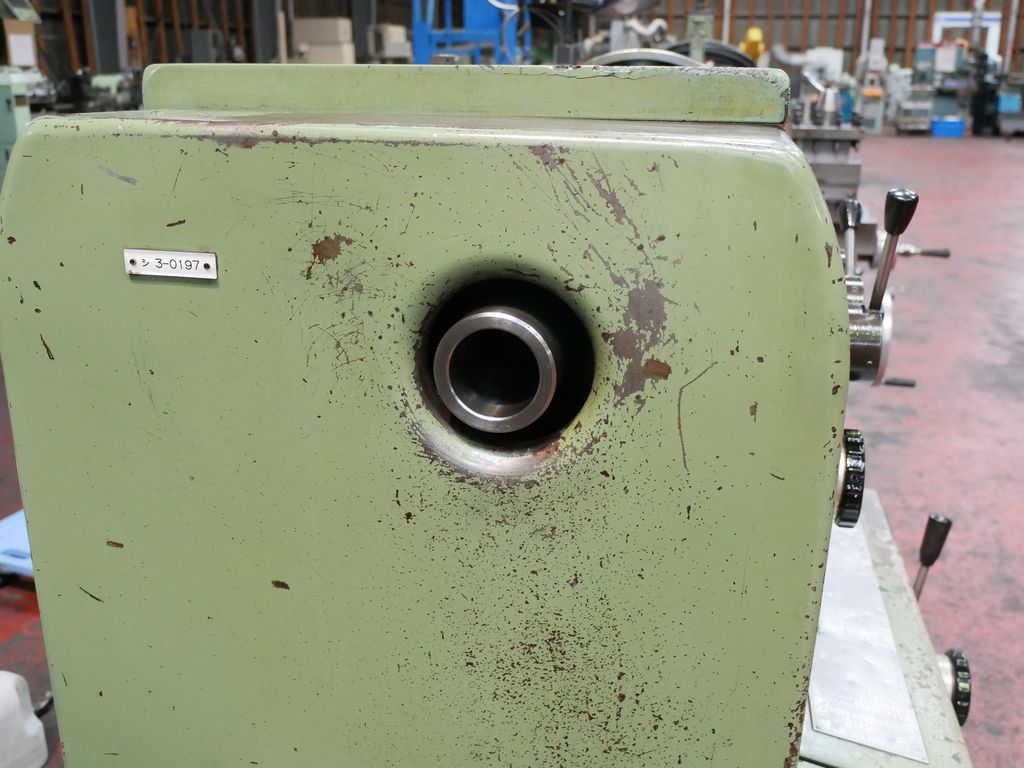

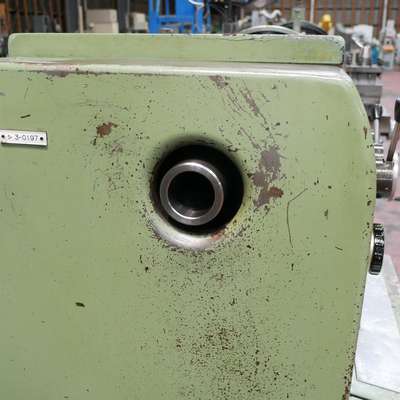

◆Spindle through hole diameter: 54
◆Spindle taper hole: Metric taper #60

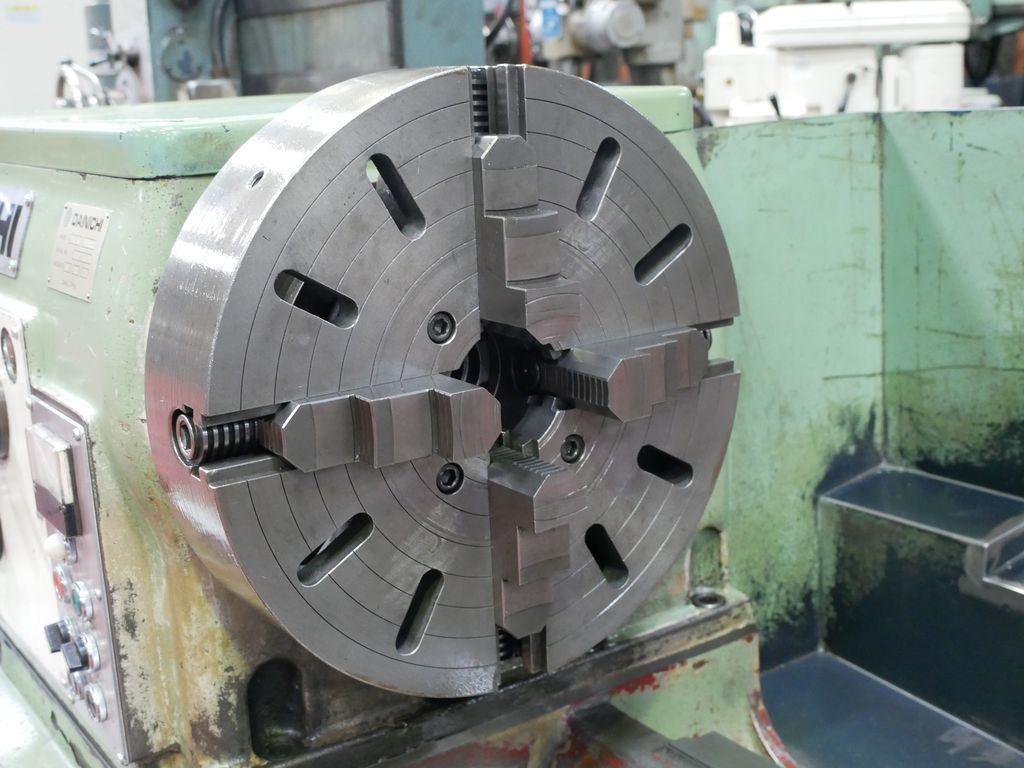

◆Spindle nose: Short taper ASA A-1-6”

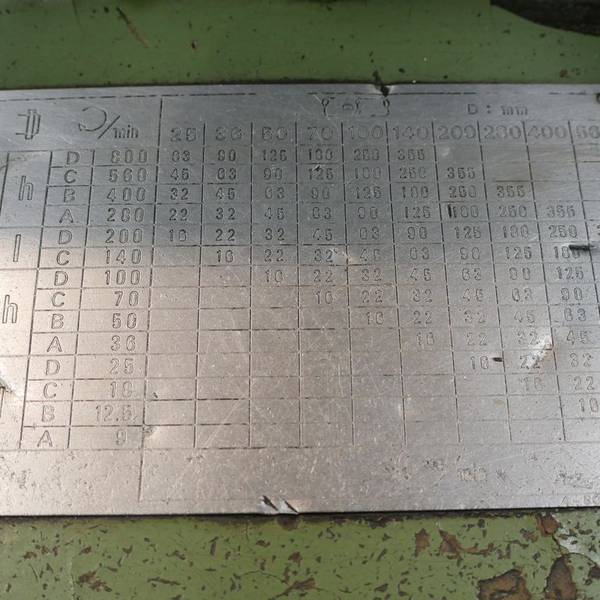

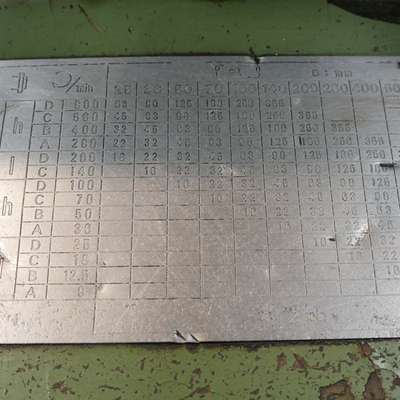

◆Spindle speed: 14 steps 9-800/min (5.5kW)
◆Lead screw diameter and pitch: 40mmΦ, 6mm pitch
◆Left/right feed: 64 steps 0.062-14mm/spindle revolution
◆Front/rear feed: 64 steps 0.031-7mm/spindle revolution
◆Inch thread cutting: 37 steps 56-1 thread/25.4mm
◆Metric thread cutting: 31 steps 0.5 to 28 mm pitch

◆ Modular thread cutting: 21 steps, 0.25 to 7π mm pitch

◆ D.P. type thread cutting: 27 steps, 56 to 4 teeth/25.4π

◆ Motor: A.C., 3 phase, 7.5 kW

◆ With counter scale

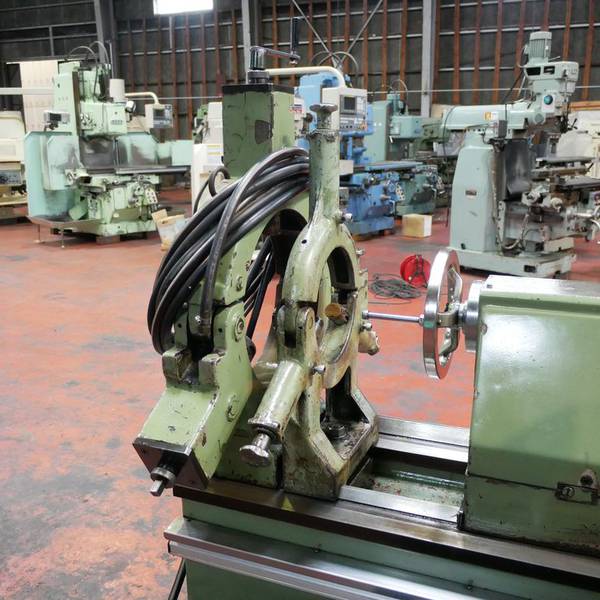

◆ With anti-vibration
◆ Estimated weight: 2800

✤ In case of any discrepancy between the specifications and the actual product, the actual product will take precedence.
