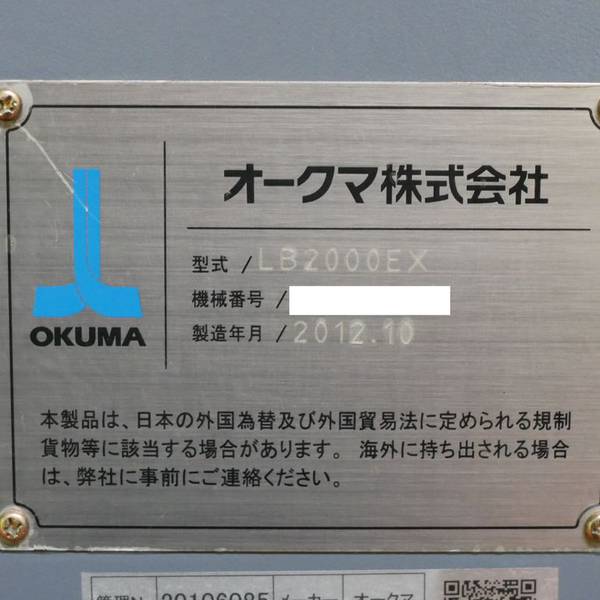

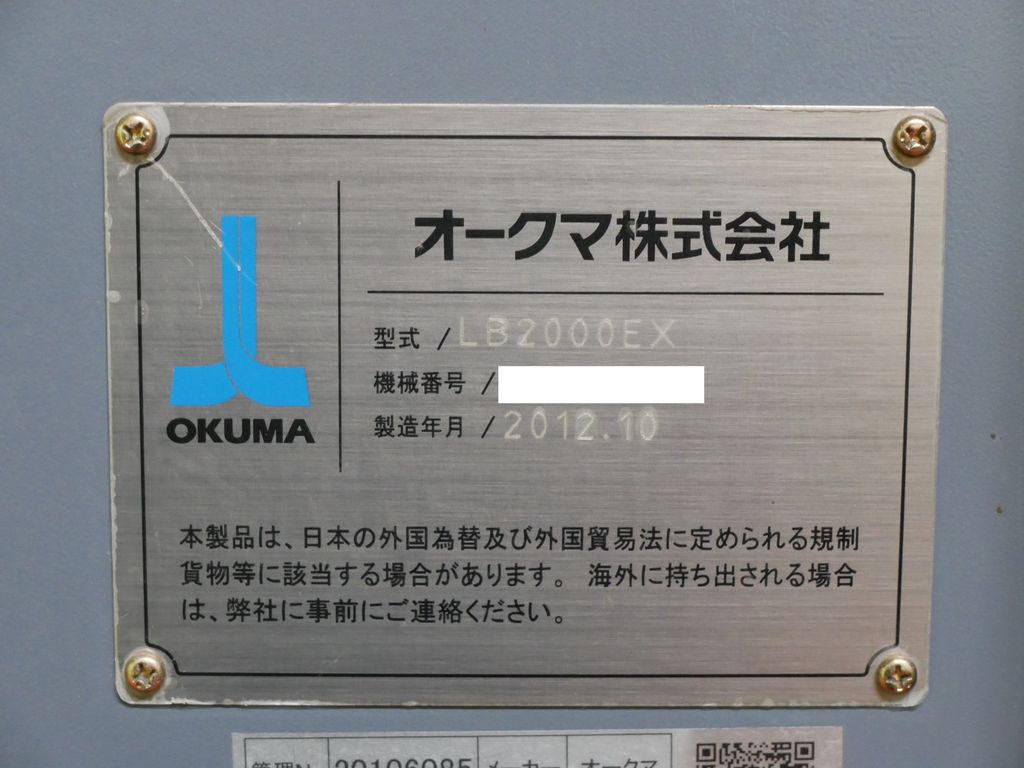

Okuma | 2012

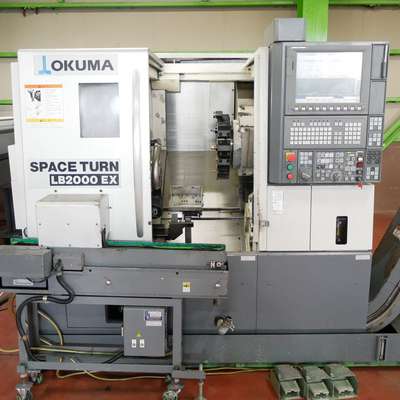

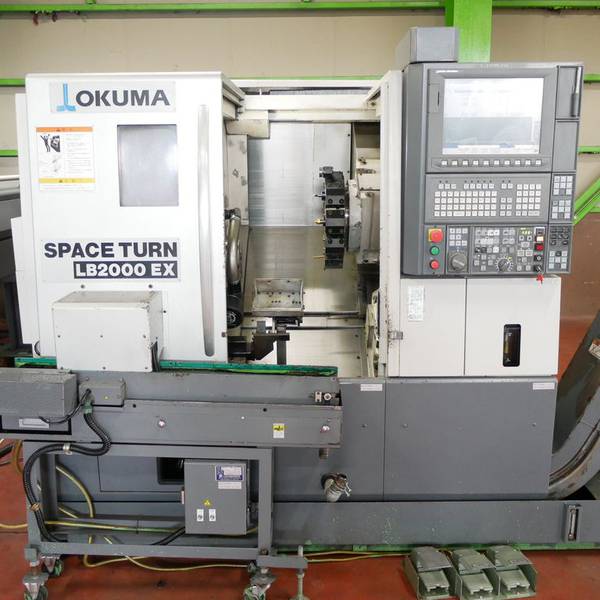

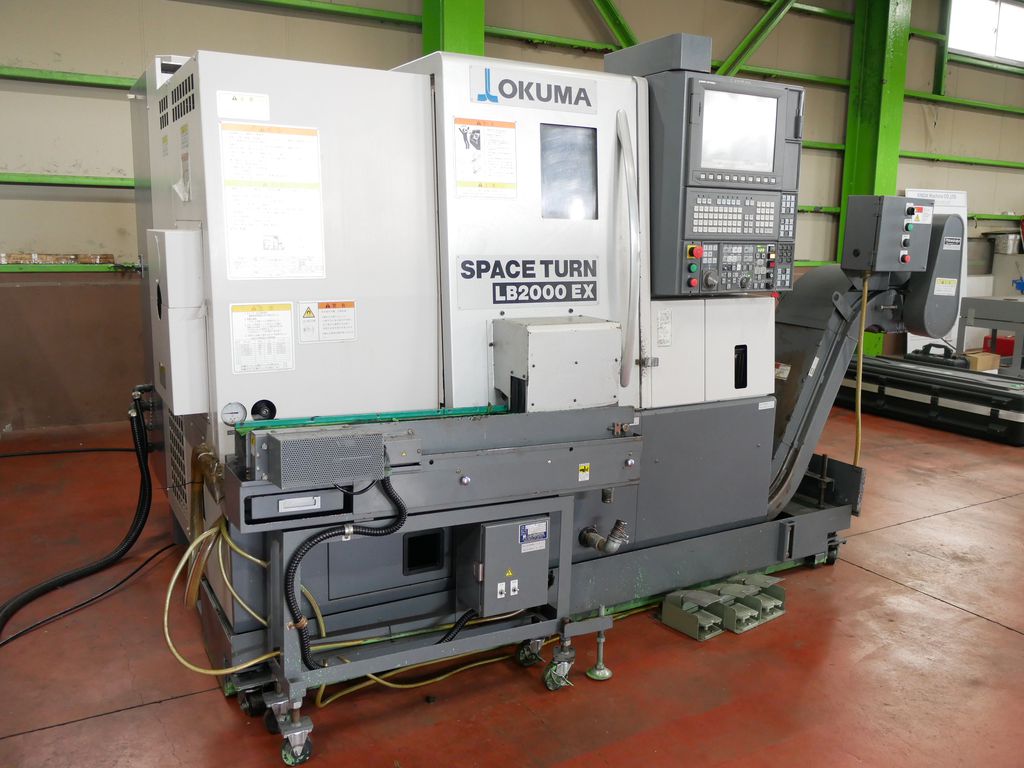

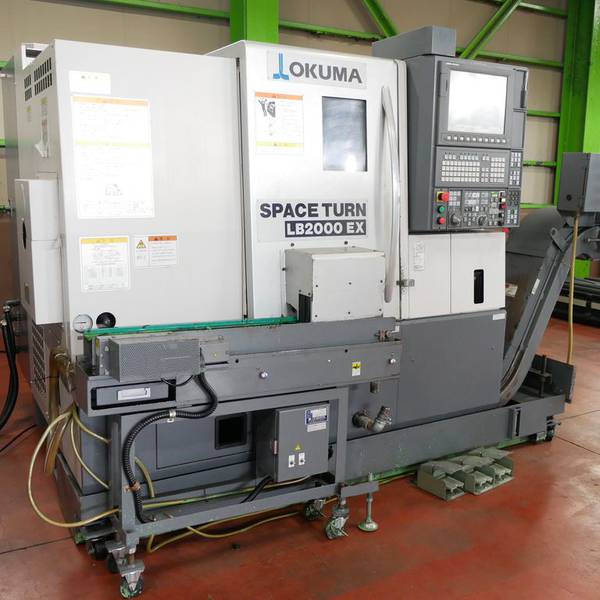

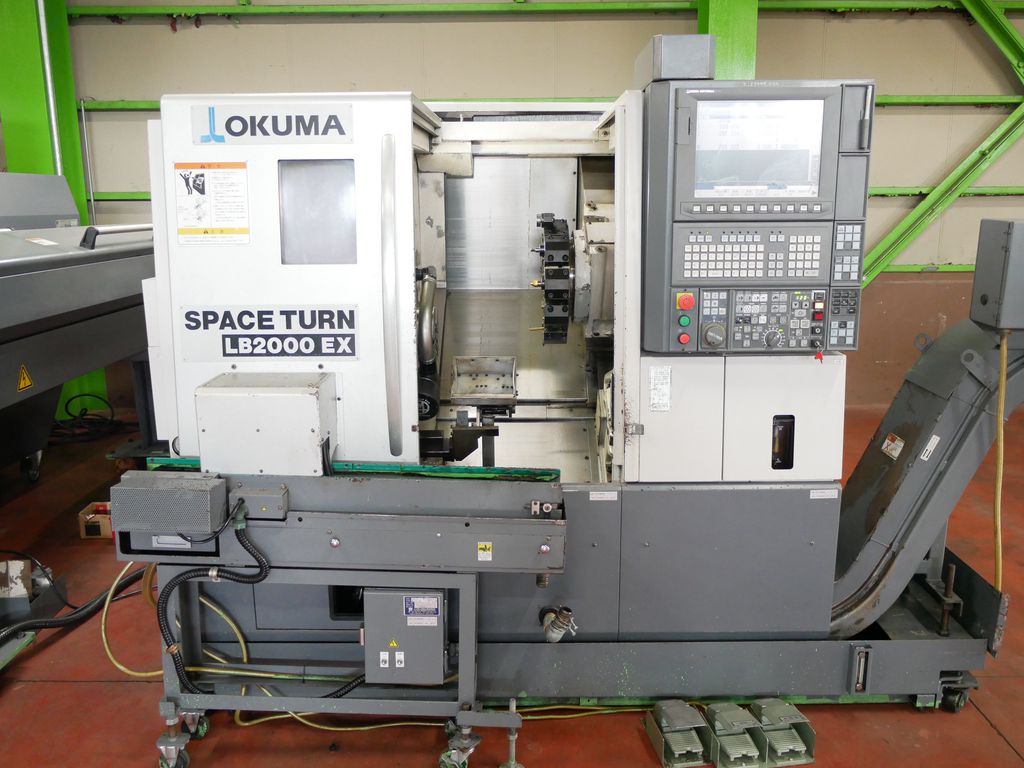

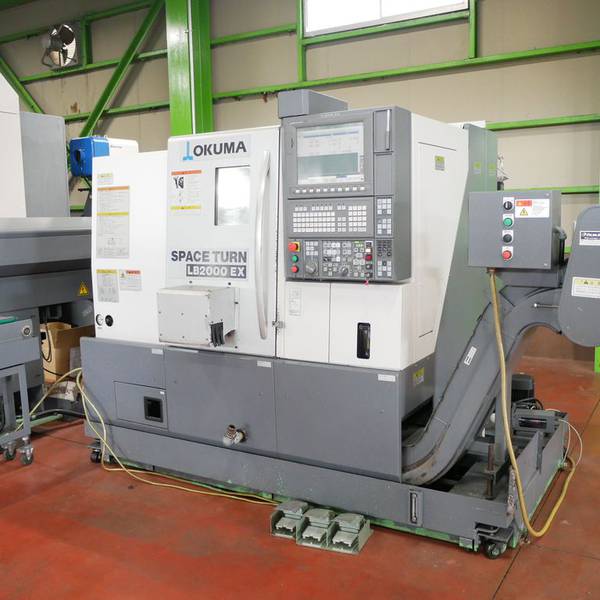

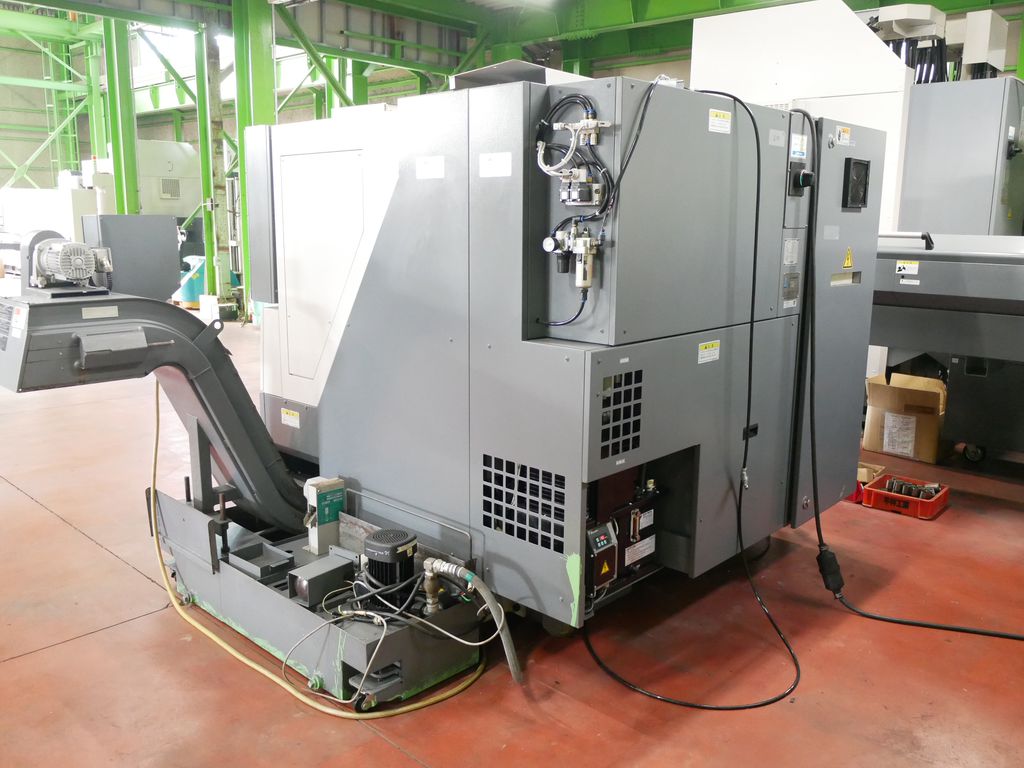

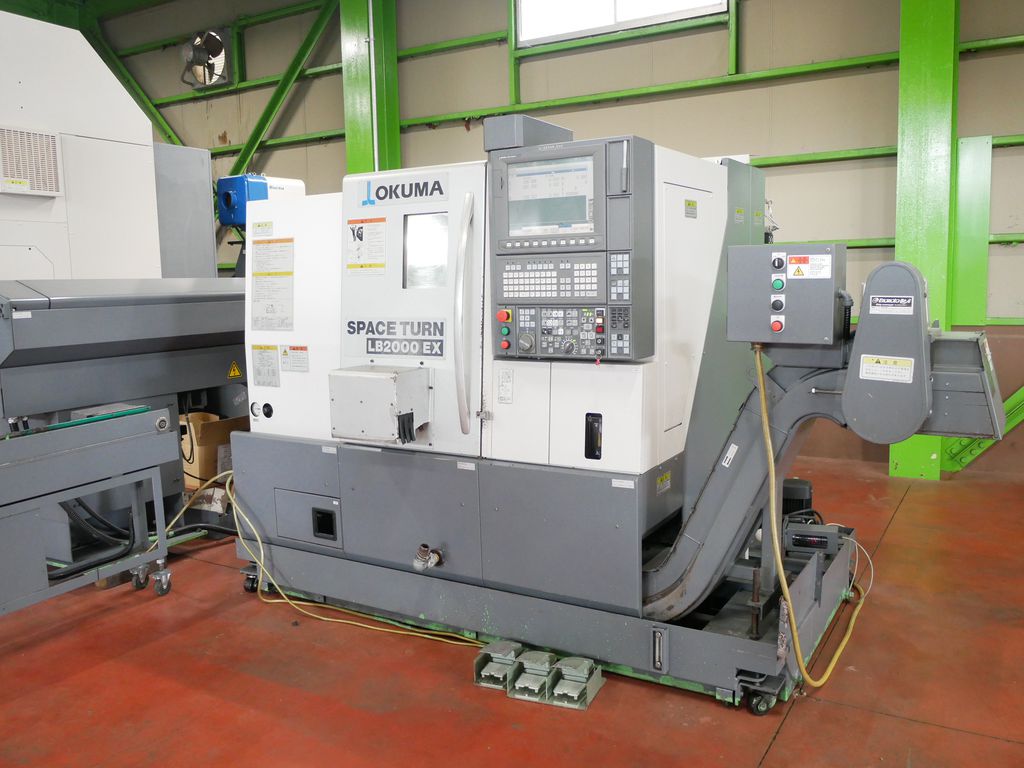

NC lathe (LB-2000EX)
Specification

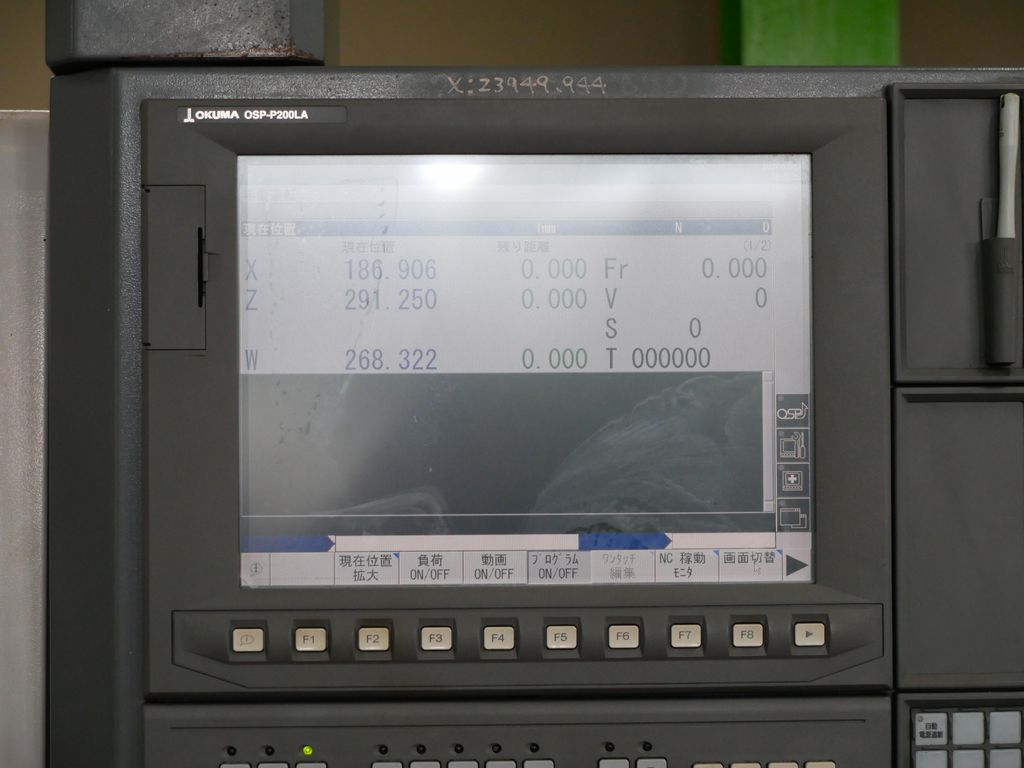

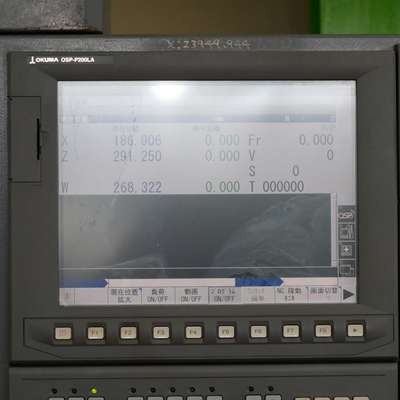

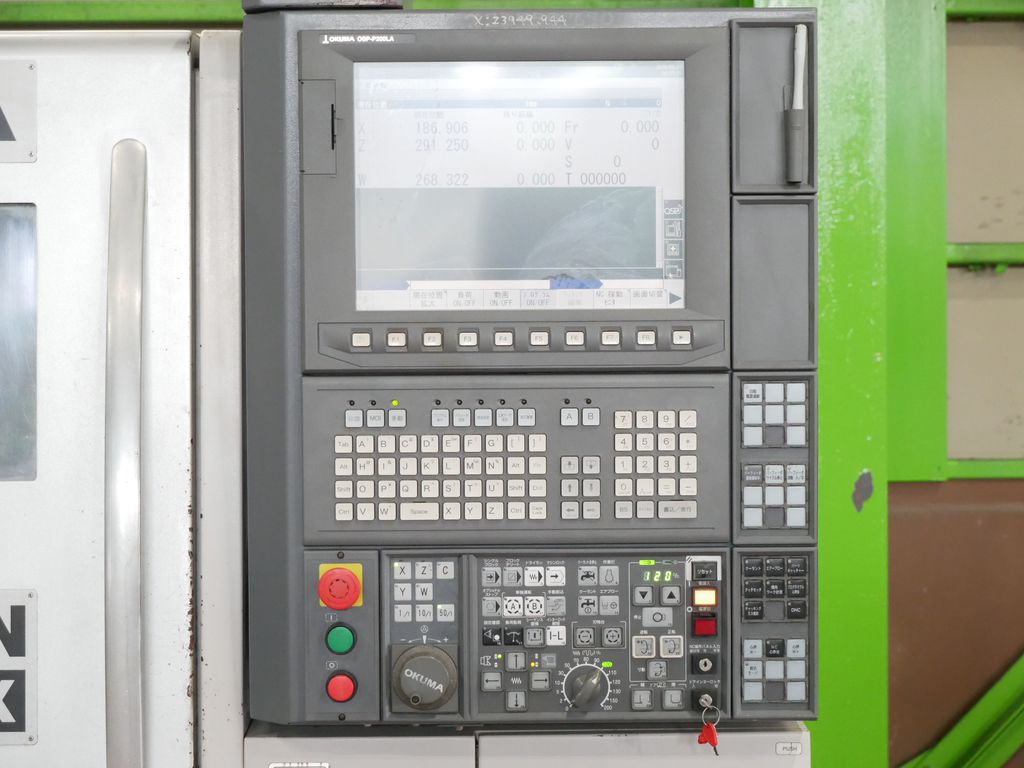

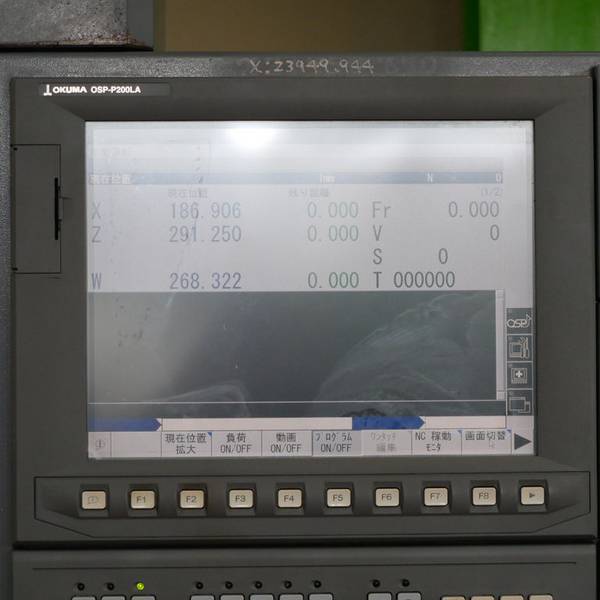

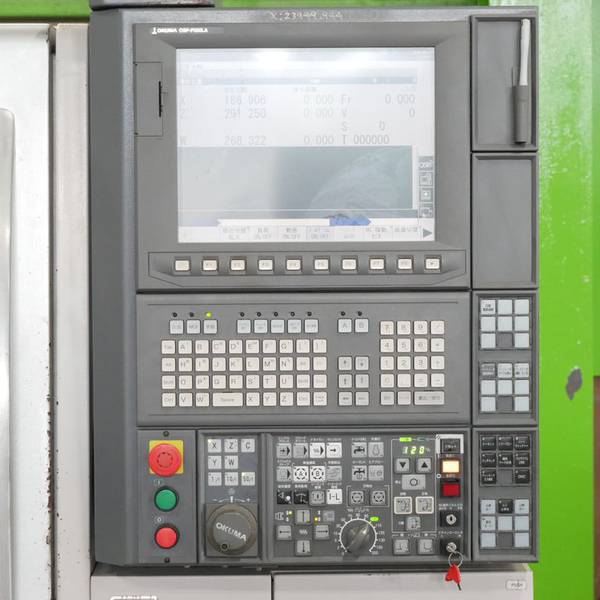

◆Control device: OSP-P200LA
◆Swing on the bed: Φ580
◆Swing on the horizontal feed table: Φ470
◆Distance between centers (W specification: distance between noses): 300
◆Maximum processing diameter: Φ430
◆Maximum processing length: 300
◆Movement amount XZ: 260×390
◆Spindle rotation speed: 50 to 6000
◆Spindle end: Φ140 flat

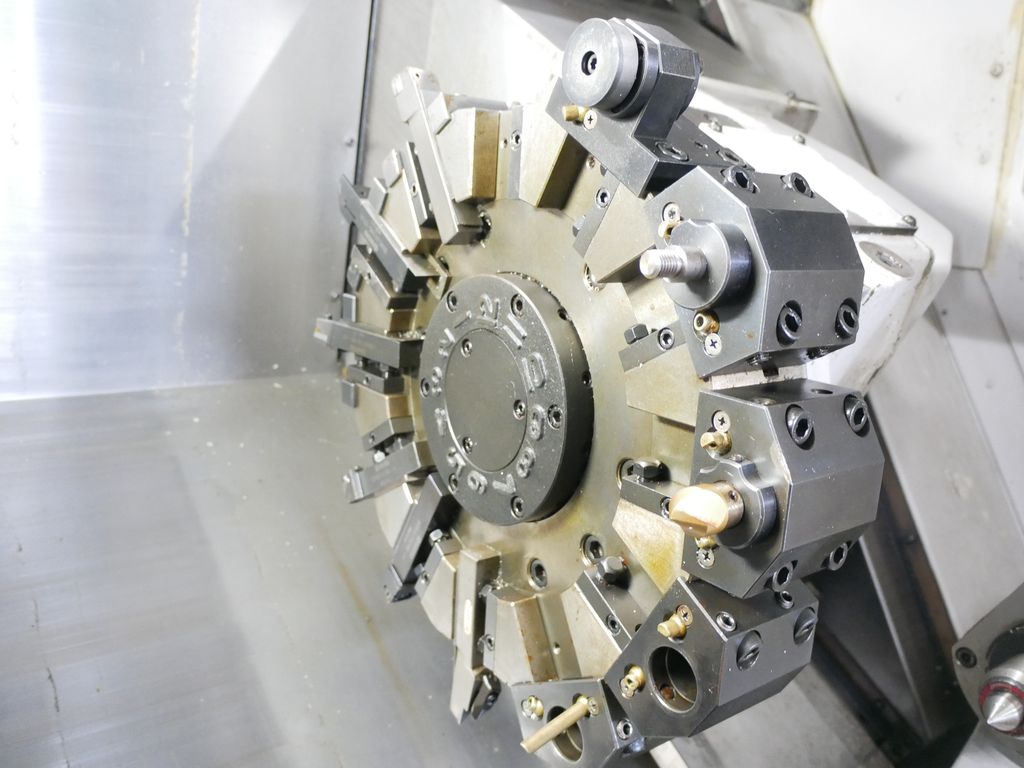

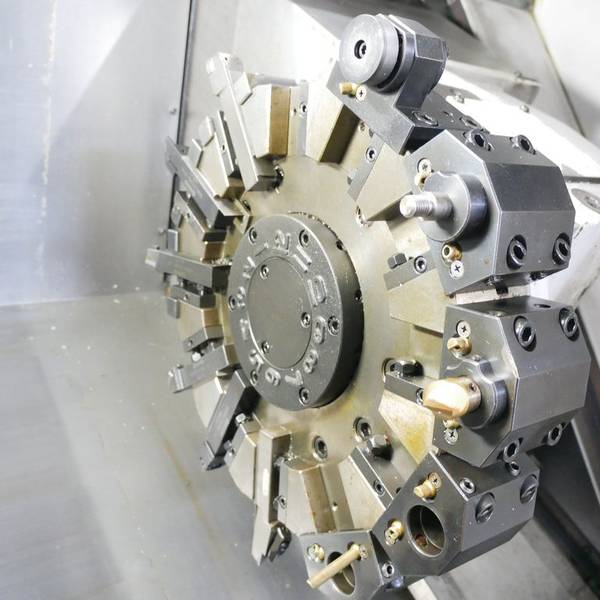

◆Turret type: V12NC turret
◆Tailstock movement method: NC tailstock
◆Type of taper hole of tailstock shaft: MT.No.4 (rotation center)
◆Tailstock foot pedal: double

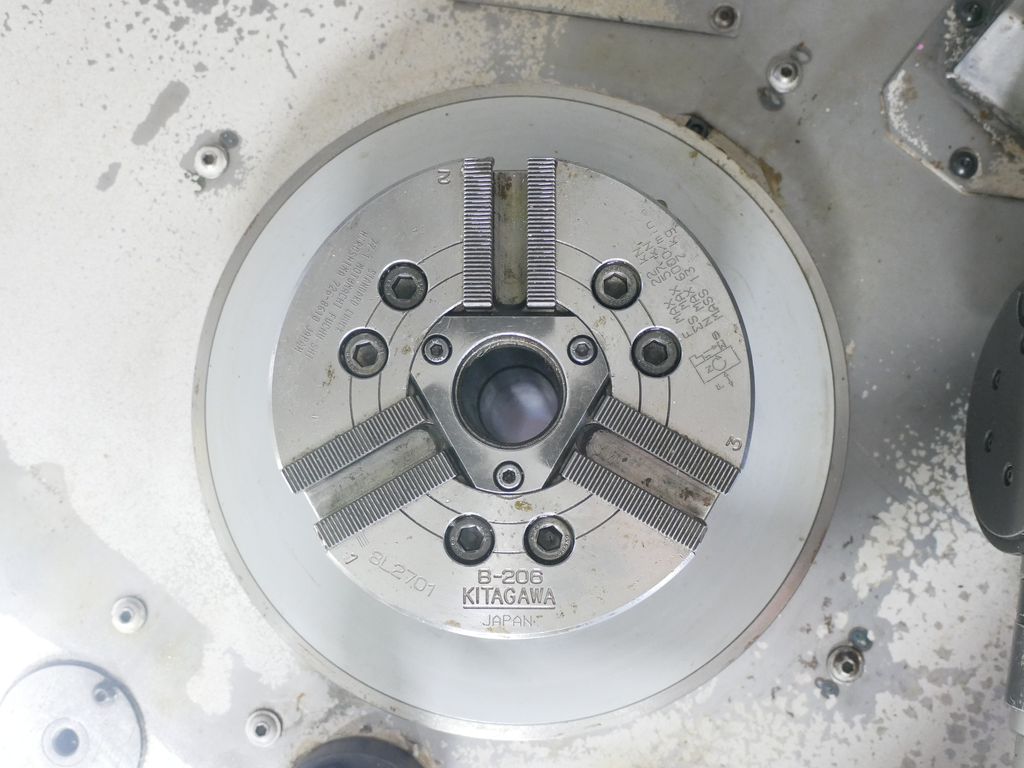

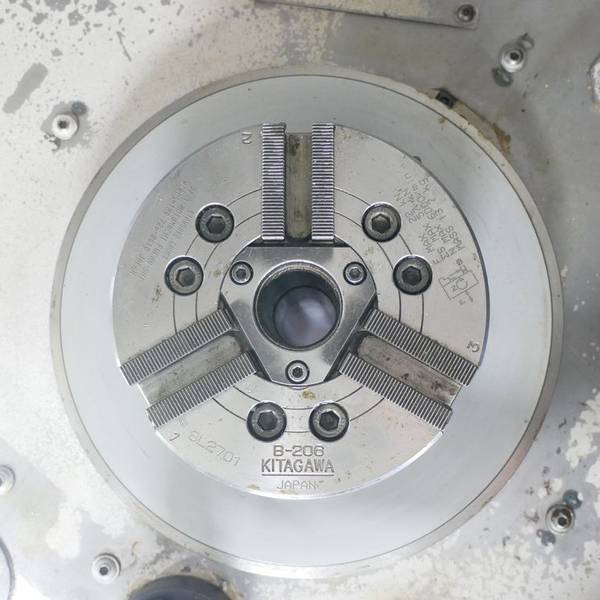

◆Hollow chuck: B-206-01
◆Chuck foot pedal: Single
◆Oil gap installation specifications

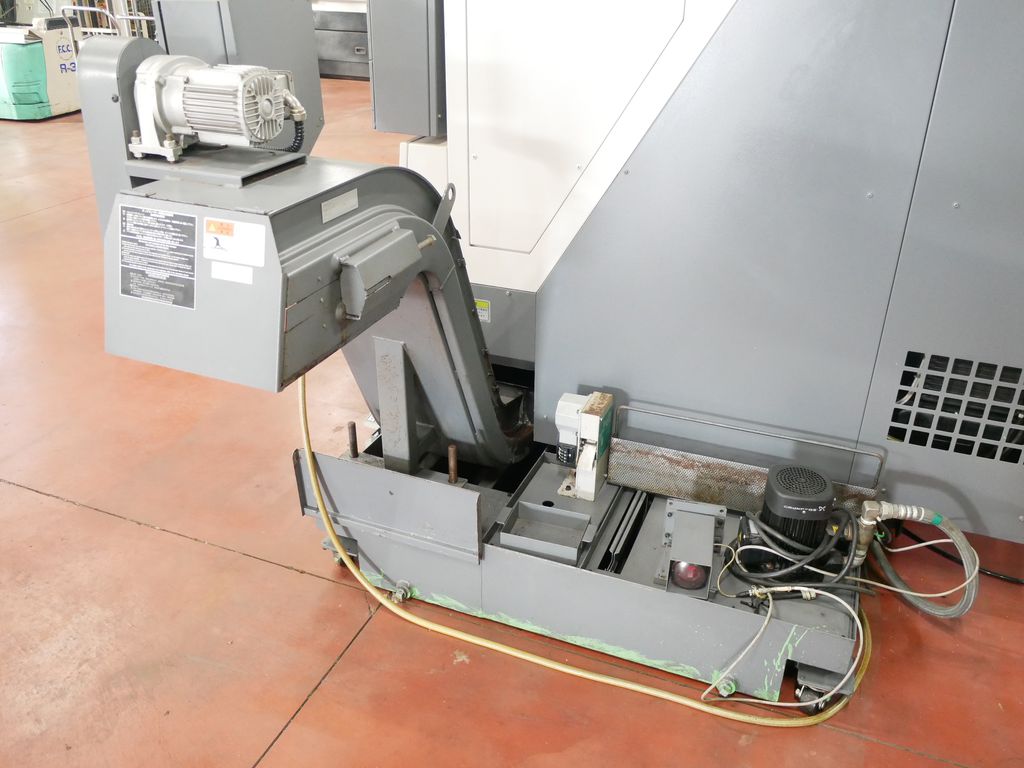

◆Cutting fluid pump (side): High pressure discharge 0.8kw

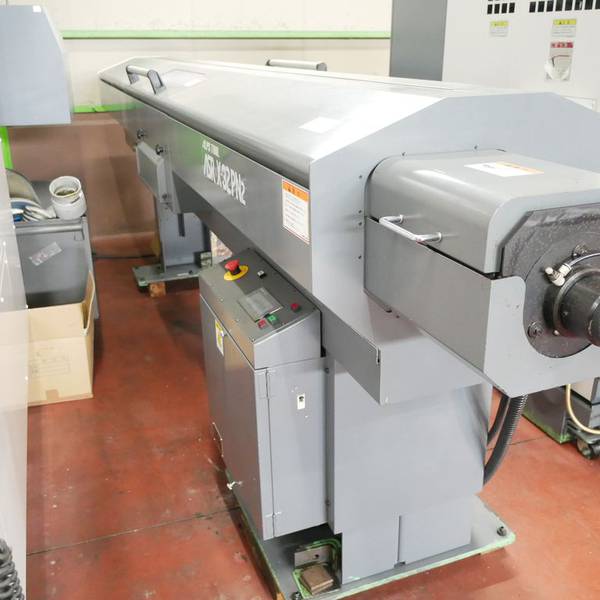

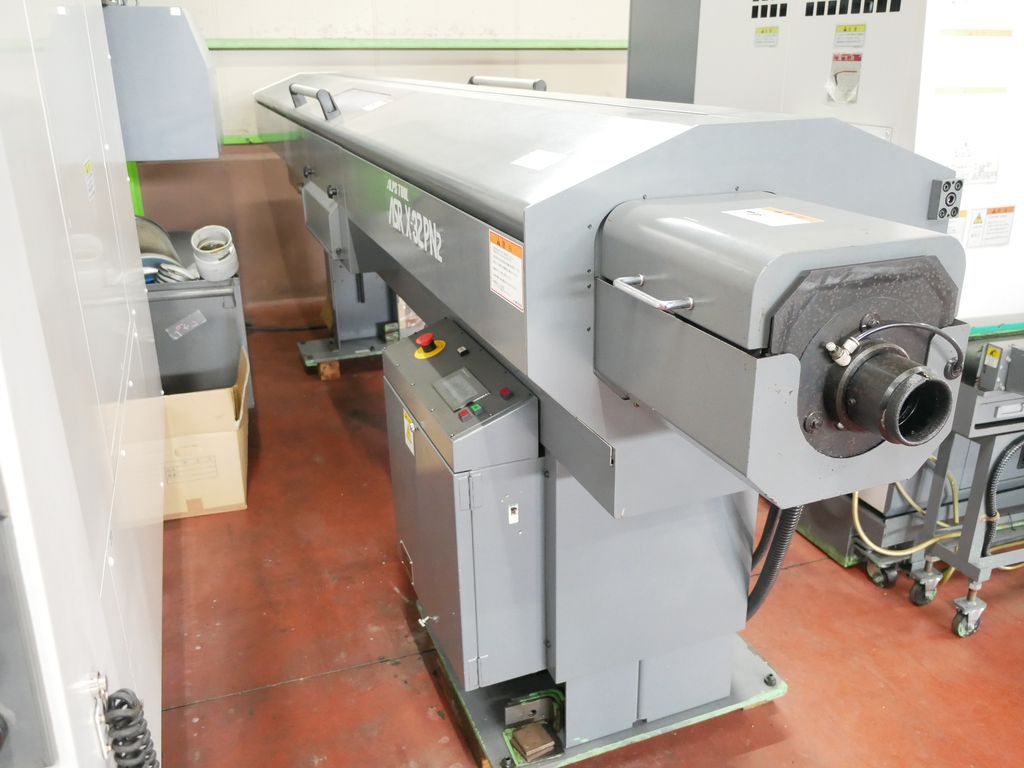

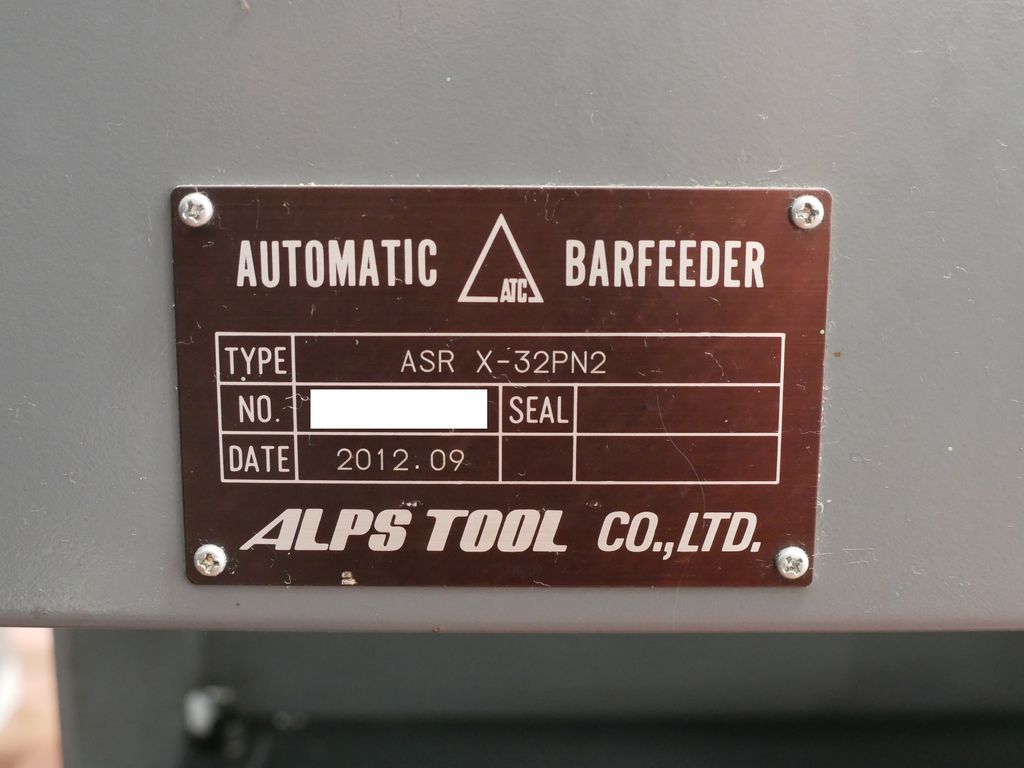

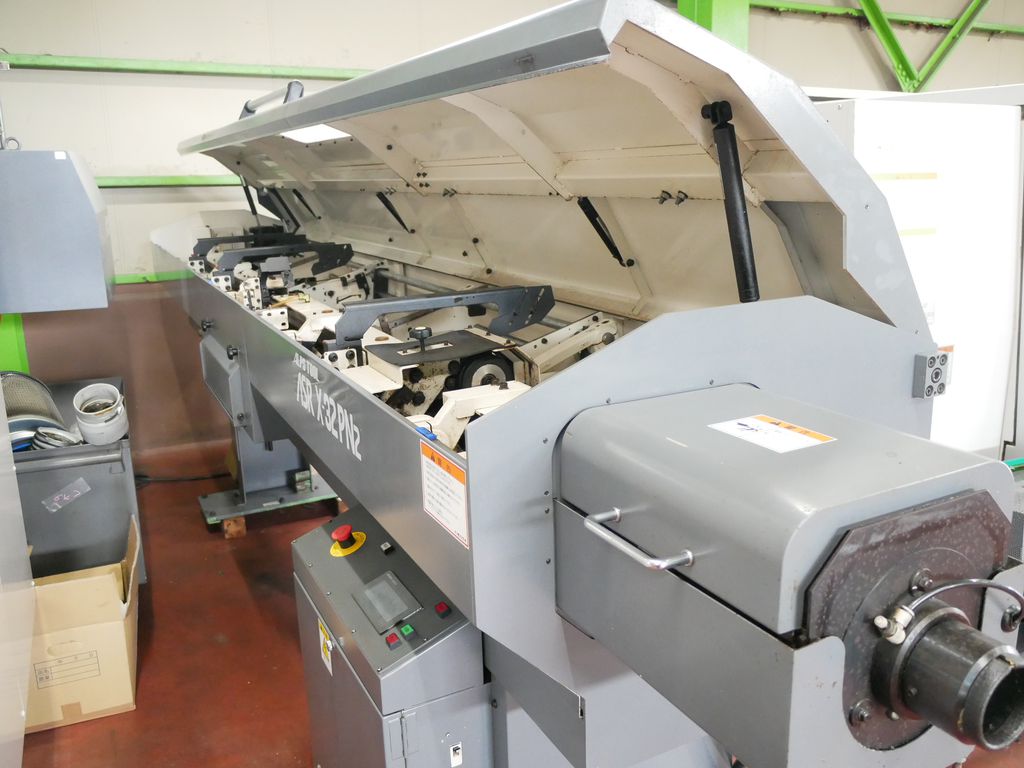

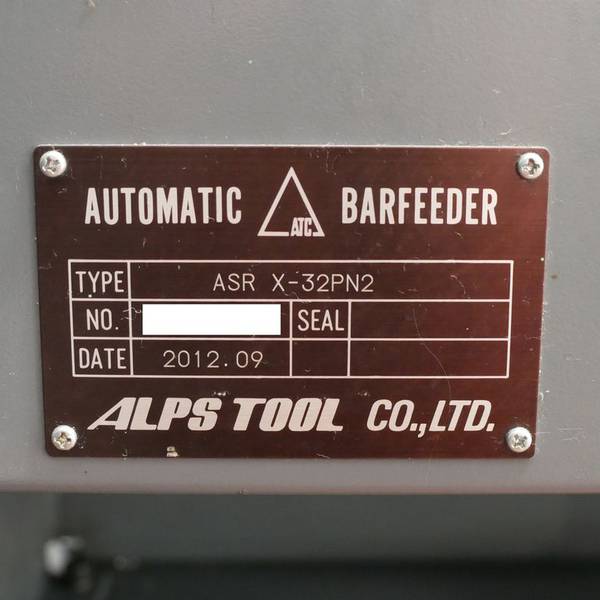

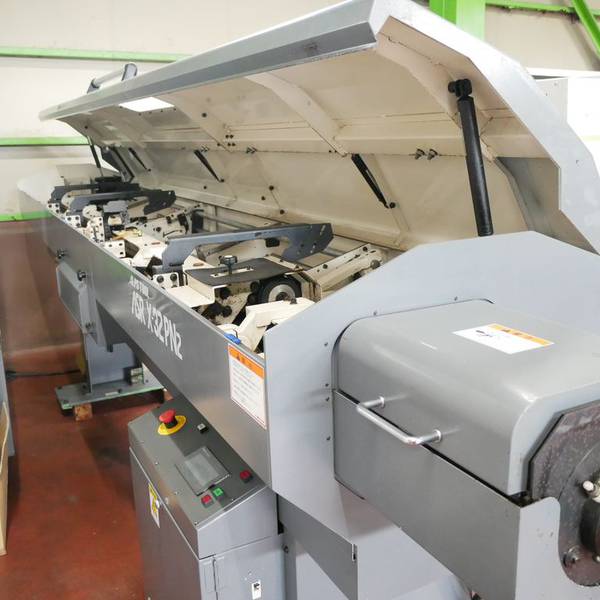

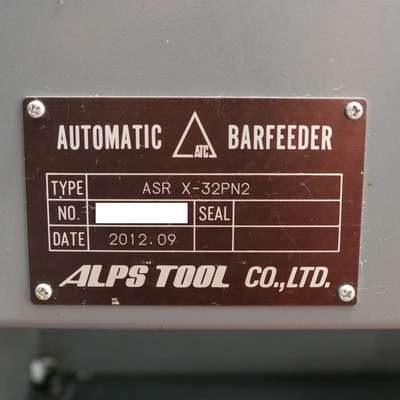

◆Bar feeder special specification
◆Bar feeder installation
◆Parts catcher
◆Workpiece size stopper

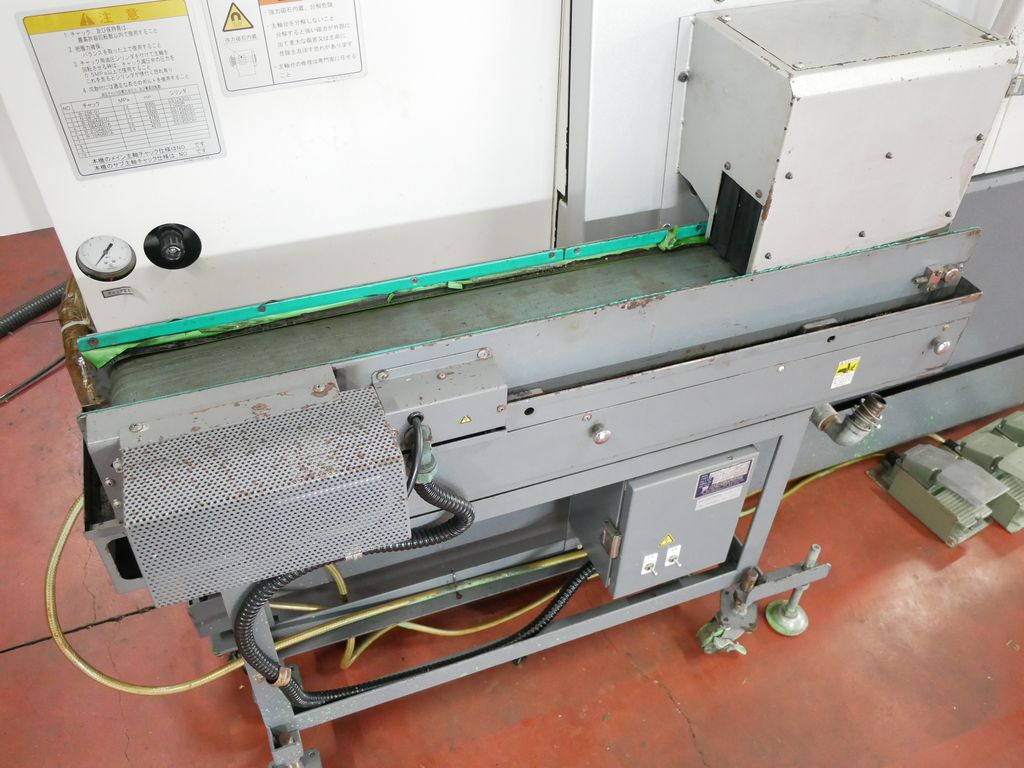

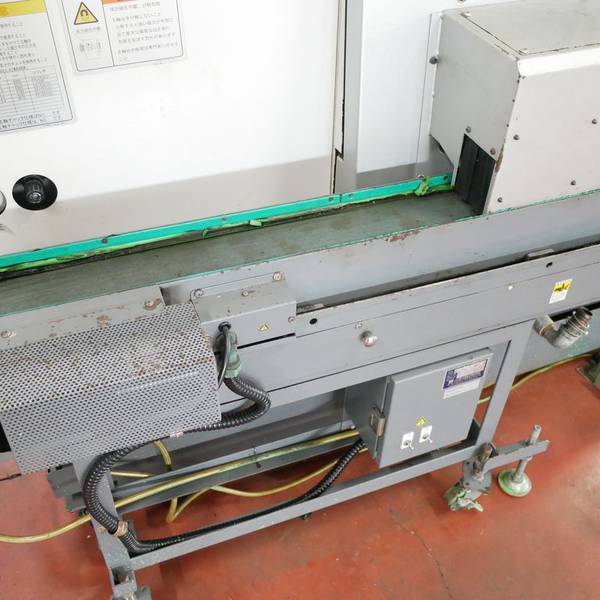

◆Workpiece delivery conveyor
◆OSP kit (P200)
◆OSP Easy Dialogue Advance-E: (OSP-P200 kit details)
◆Easy Dialogue Advanced L: Includes real 3D
◆ Machine height: 1839
◆Required floor size: 1945 x 1734
◆Machine mass: 3400
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.
Photo (20)
