◆Swing on the bed: Φ530
◆Swing on the horizontal feed table: Φ420
◆Maximum processing diameter: Φ370
◆Maximum processing length: 500
◆Movement amount XZ: 260×520
◆Spindle rotation speed: 45 to 4500
◆Spindle speed range: 2 automatic steps
◆Spindle end: JIS A2
◆Spindle through hole diameter: Φ62
◆Spindle bearing inner diameter: Φ100

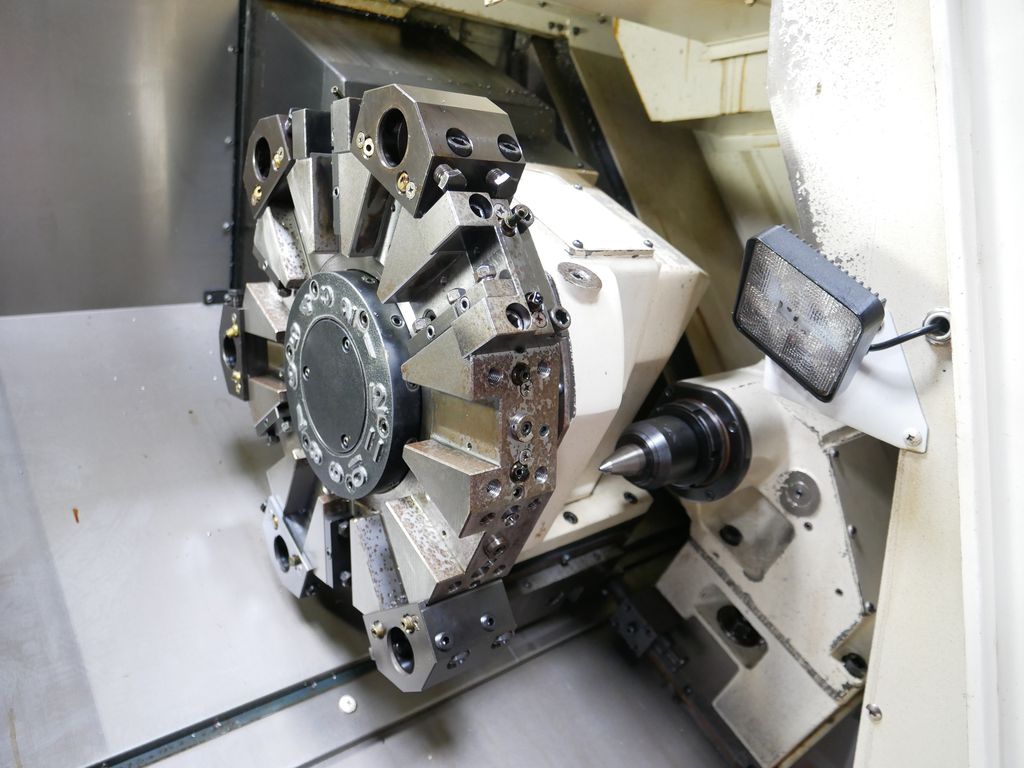

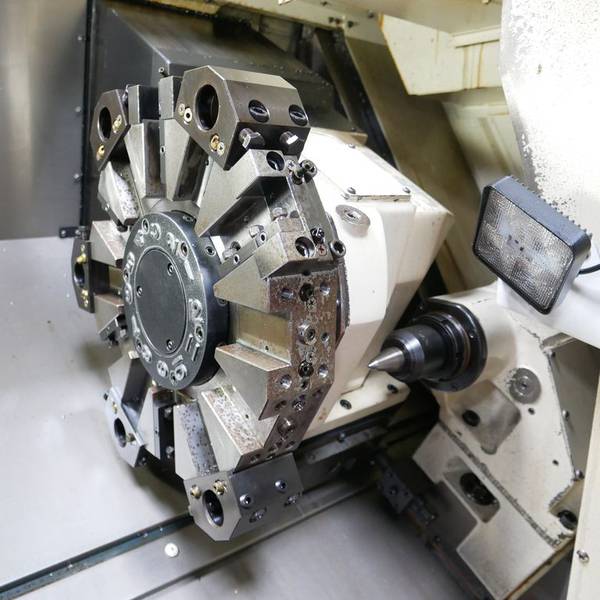

◆Turret model: V12NC non-lift
◆Number of tools installed on the turret: 12
◆External bite shank dimensions: 25 x 25
◆Inner diameter tool shank diameter: Φ40
◆Turret indexing time: 0.1
◆Fast forward speed XZ: 20000×25000
◆Tailstock shaft diameter: Φ90
◆Tailstock shaft taper hole diameter: MT.NO5
◆Travel amount of tailstock shaft: 120

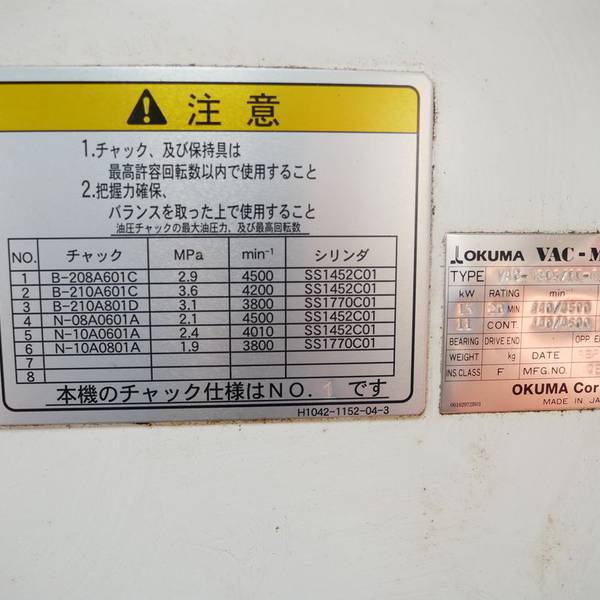

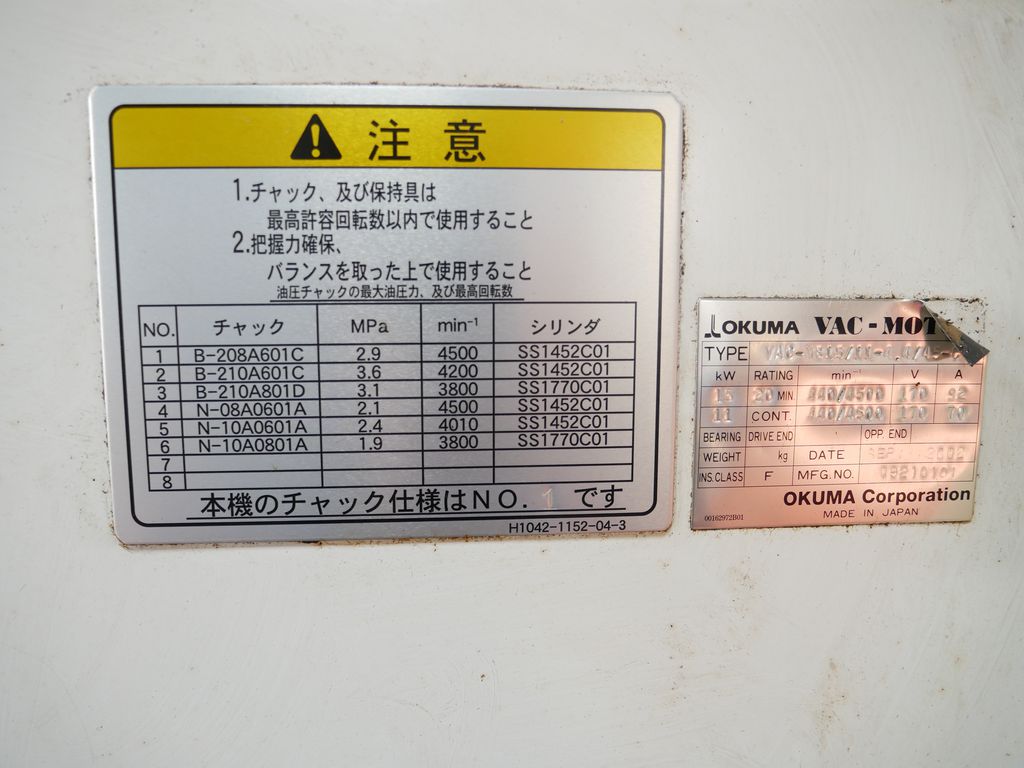

◆Spindle motor: VAC15/11 (20 minutes/continuous)
◆Feed shaft electric motor XZ: 3×4
◆Cutting fluid electric motor: Side discharge 0.25, rear discharge 0.8
◆Machine dimensions: W2200 x D1720 x H1745
◆Machine mass: 4200

✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.
