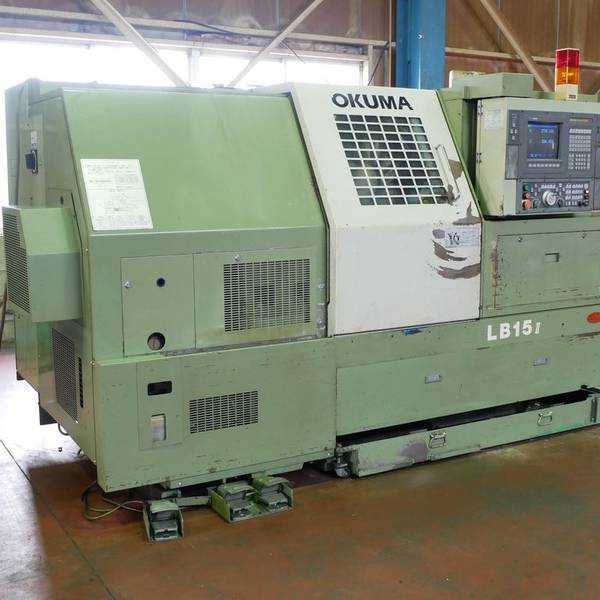

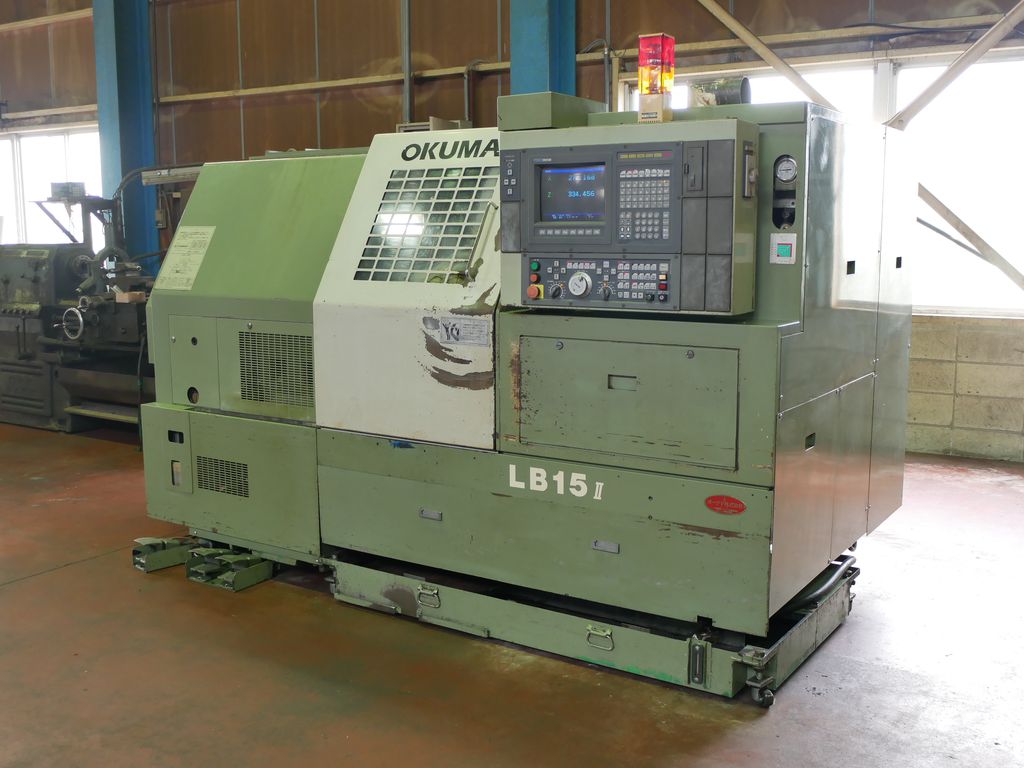

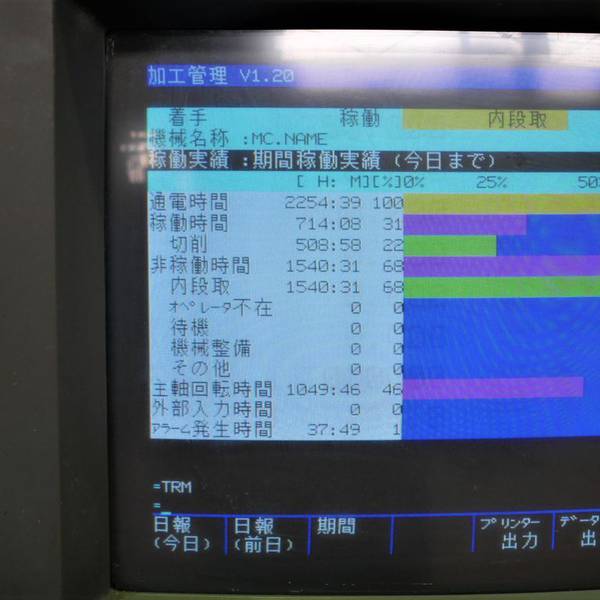

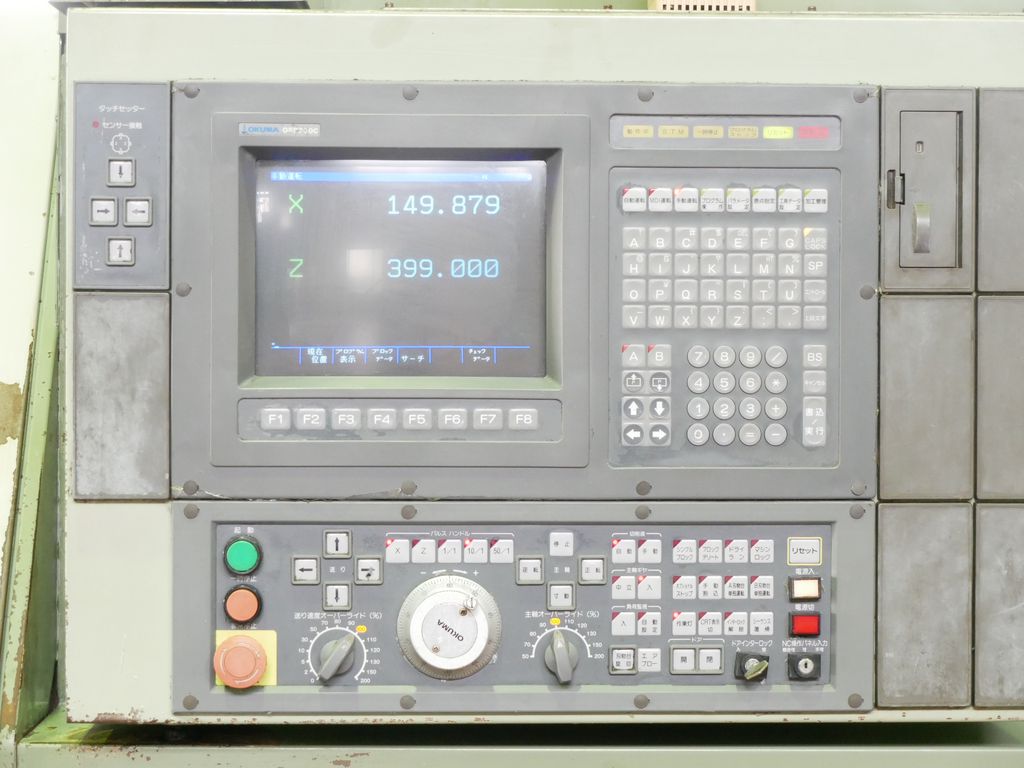

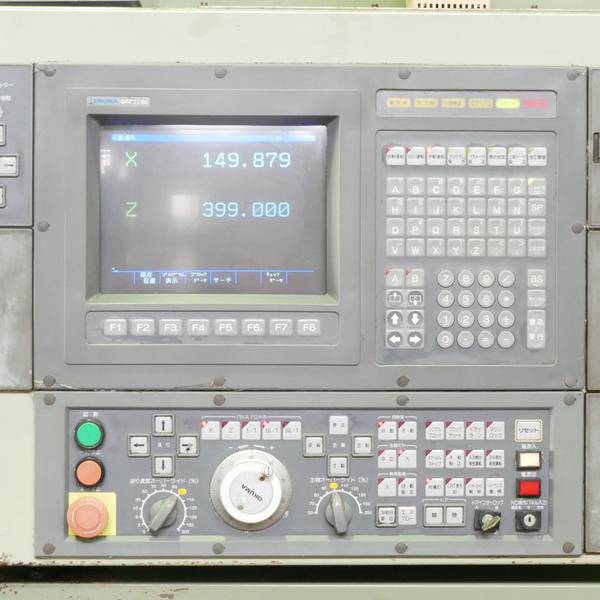

◆Control Unit: OSP-7000
◆Number of Control Axes: 2
◆Swing over Bed (mm): Φ530
◆Swing over Carriage (mm): Φ530
◆Swing over Cross Slide (mm): Φ340
◆Distance between Centers (mm): 520
◆Max. Machining Diameter × Length (mm × mm): Φ340 × 500
◆Spindle Diameter (mm): Φ100
◆Spindle Nose: JIS A2-6 (JIS A2-8)
◆Taper Bore (mm): Φ70 × 1/10 (Φ90 × 1/10)
◆Through-hole Diameter (mm): Φ62
◆Spindle Speed ​​(min⁻¹, rpm): 45–4500
◆Carriage (Z-axis) Travel (mm): 520
◆Cross Slide (X-axis) Travel (mm): 260

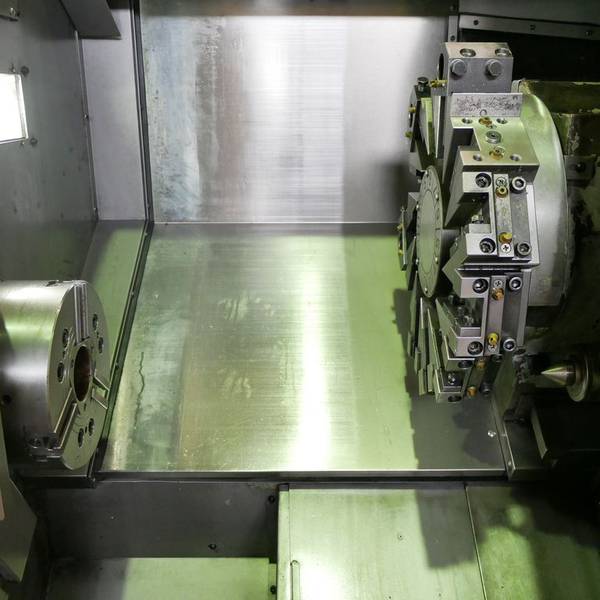

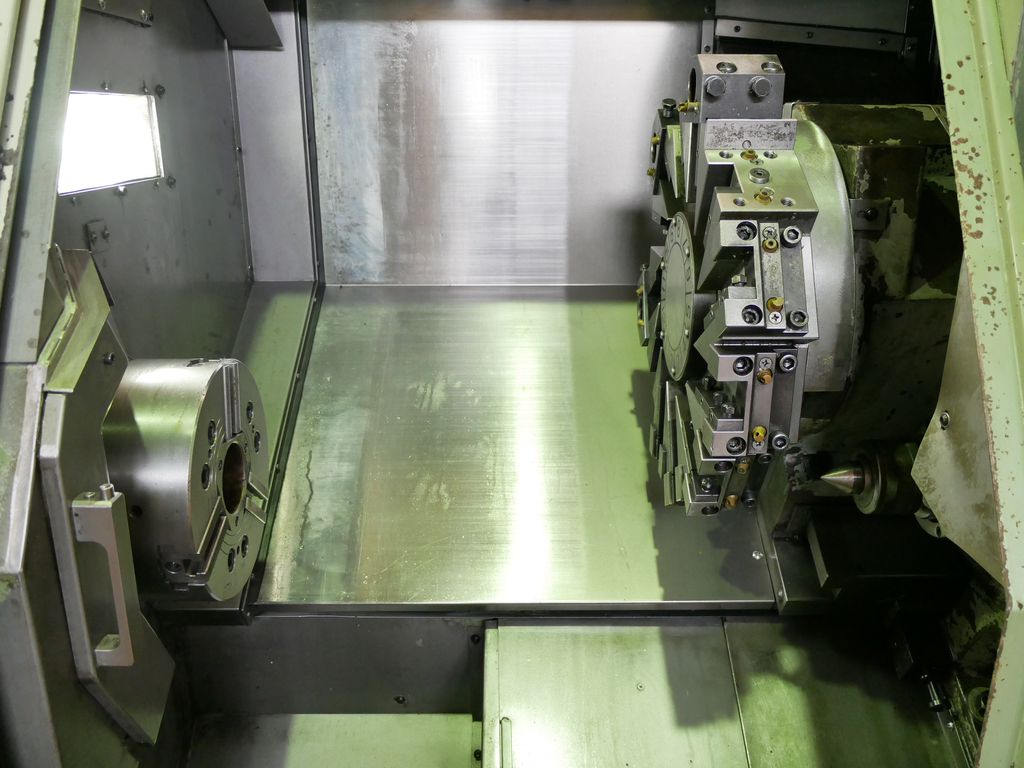

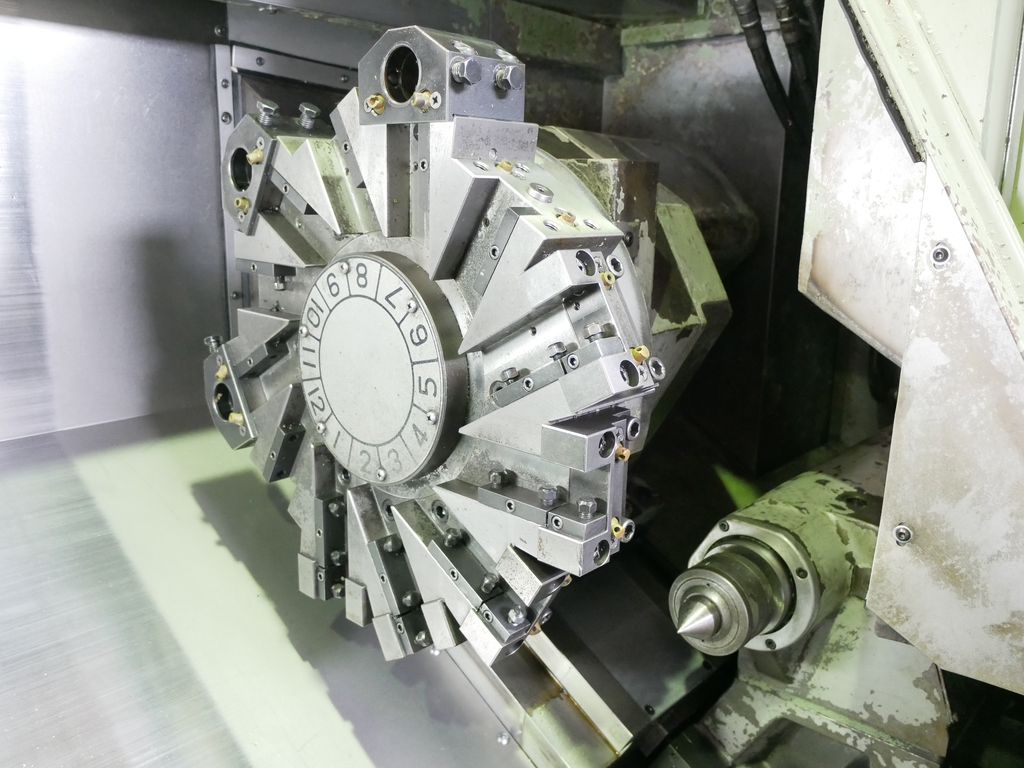

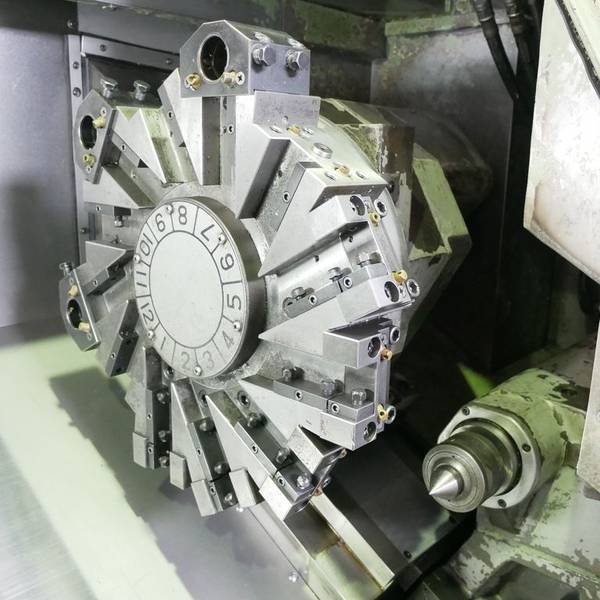

◆Turret Type: V-type
◆Number of Tools: 12
◆Tailstock Quill Diameter (mm): Φ90
◆Tailstock Quill Taper Bore: MT No. 5
◆Tailstock Quill Travel (mm): 120
◆Machine Height (mm): 1745
◆Required Floor Space (mm × mm): 1680 × 2815
◆Net Weight (kg): 4,780

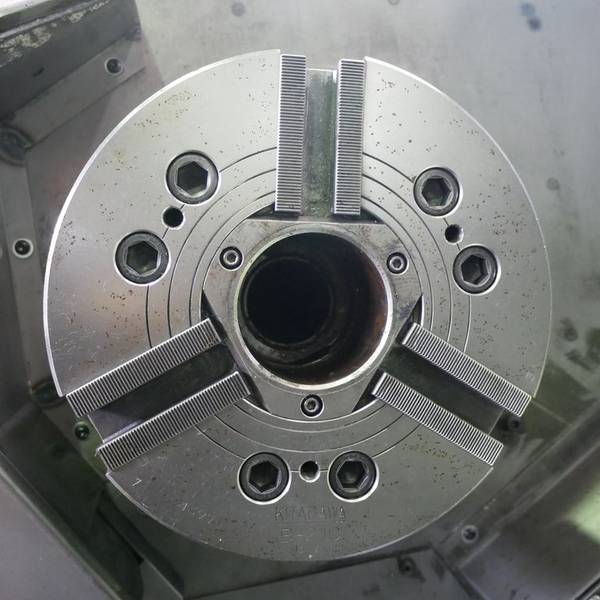

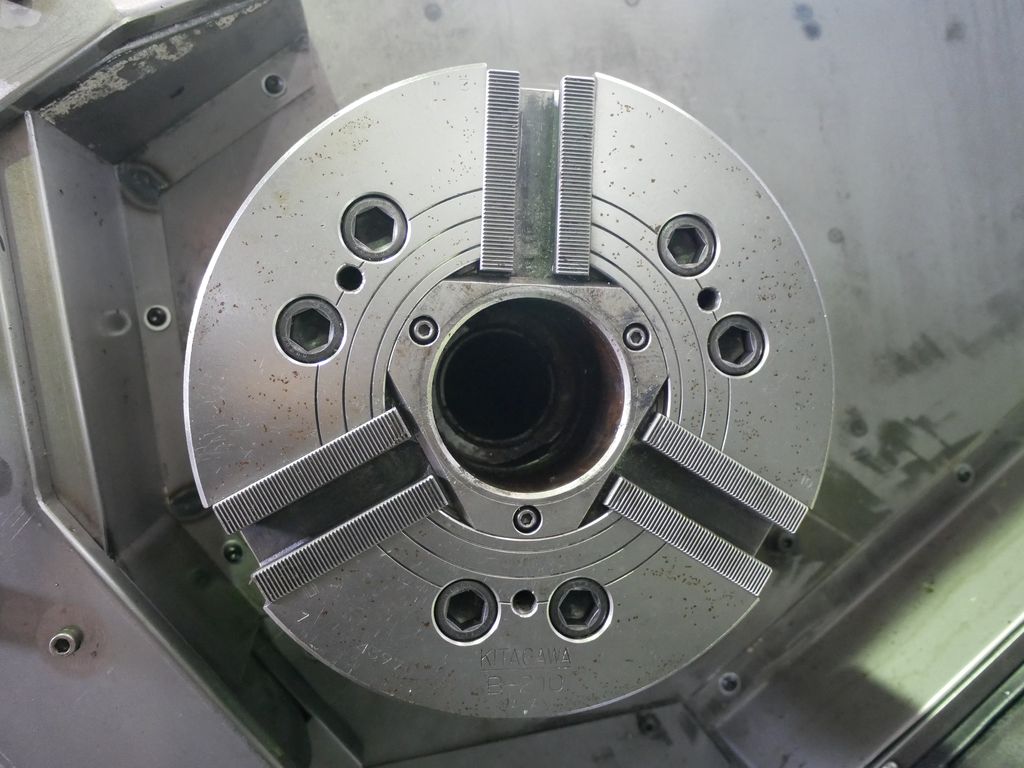

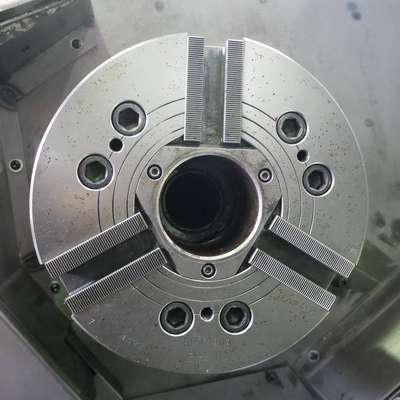

◆10-inch Hollow Chuck
◆Touch Setter

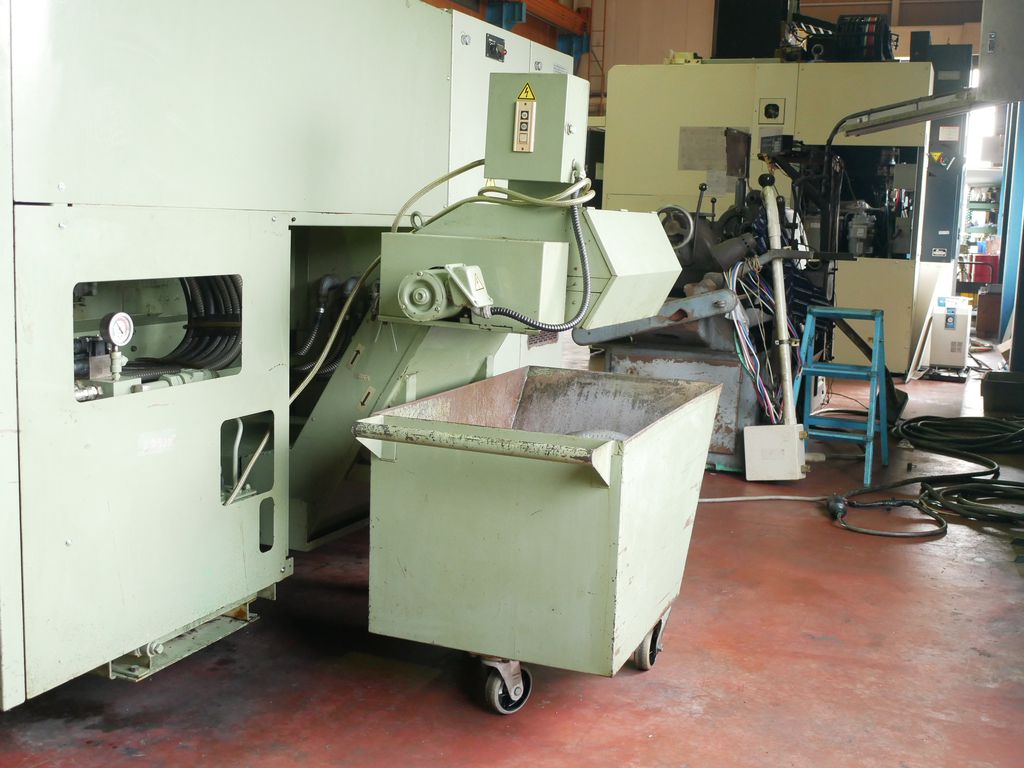

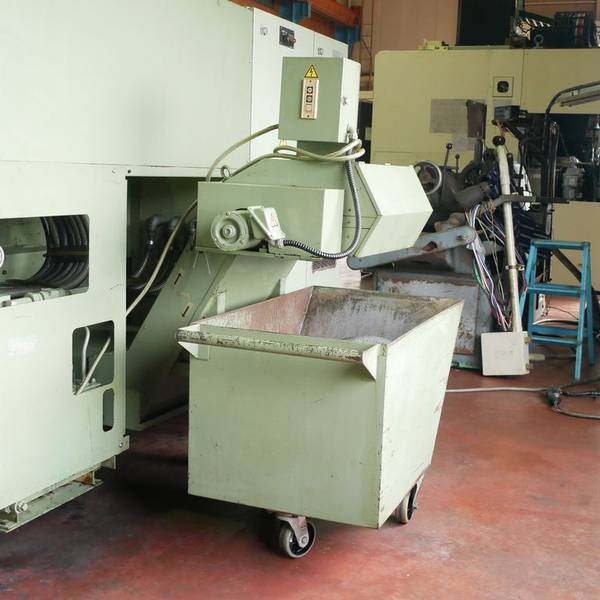

◆Rear-discharge Chip Conveyor
◆No Conversational Programming Function

✤In the event of any discrepancy between the specifications and the actual machine, the actual machine takes precedence.
