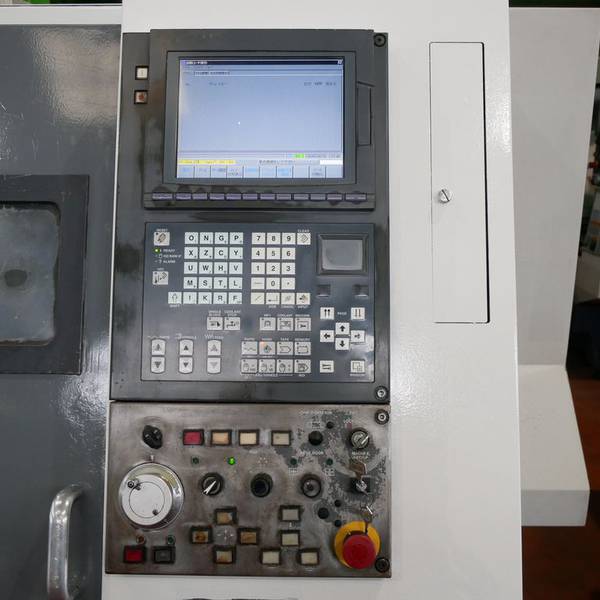

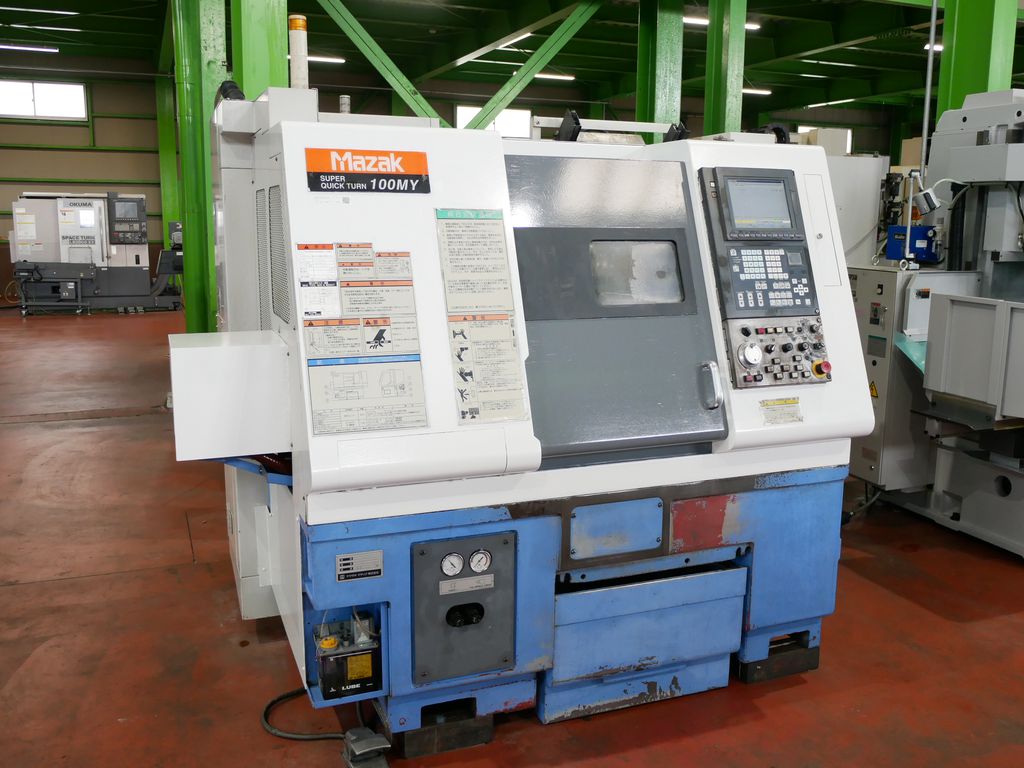

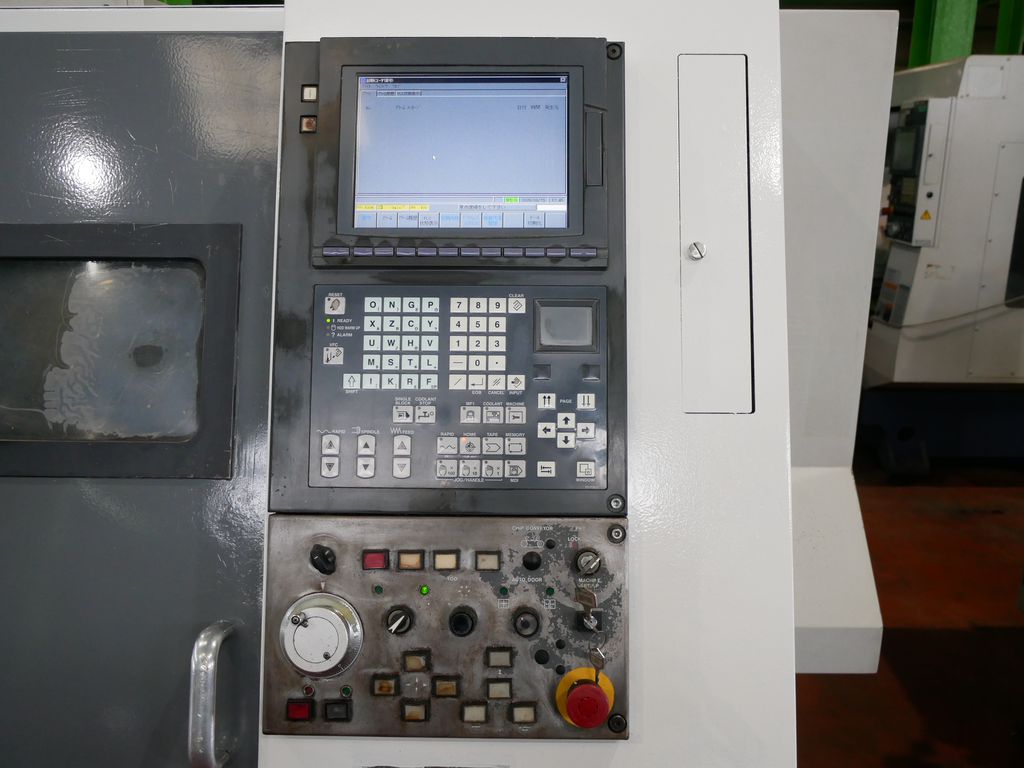

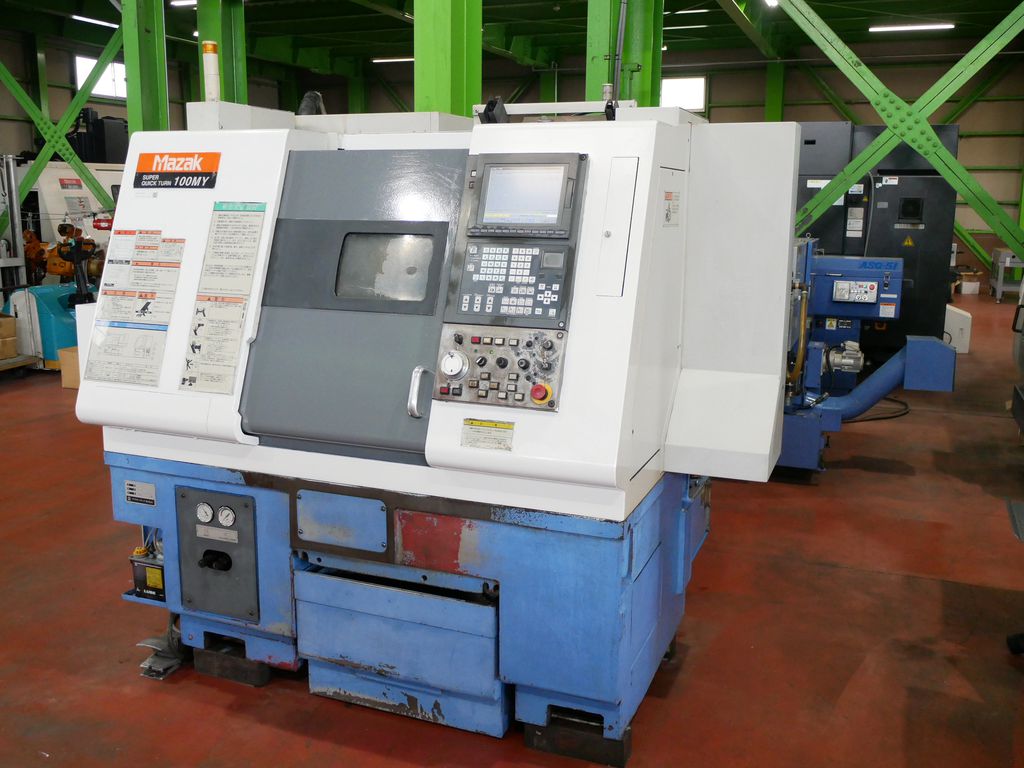

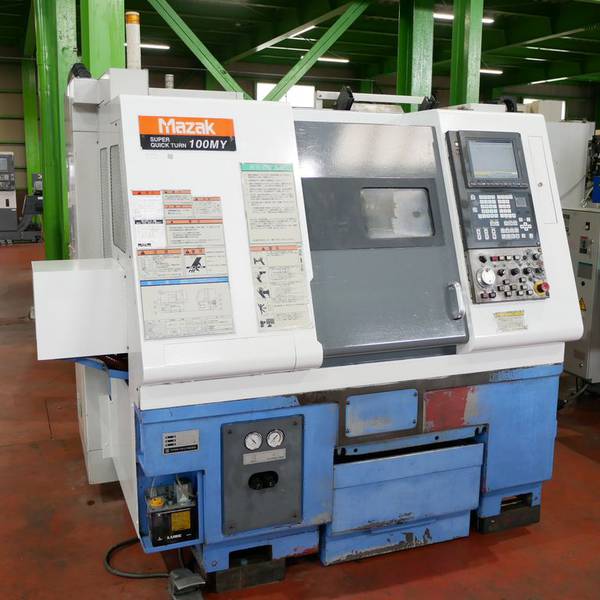

◆Control device: MAZATROL640T

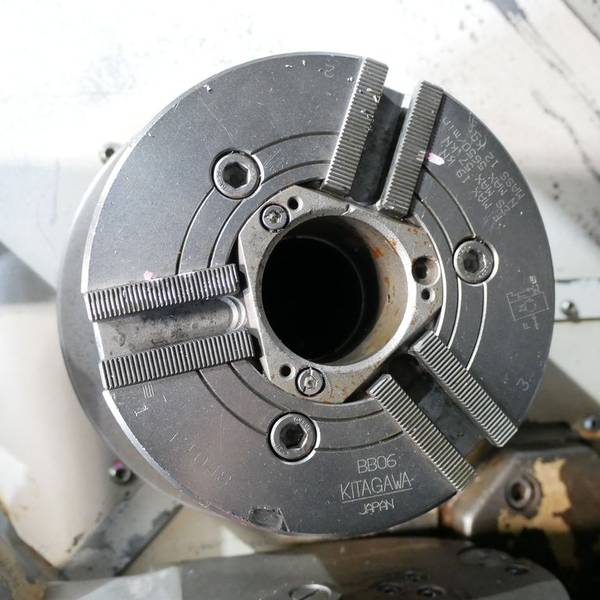

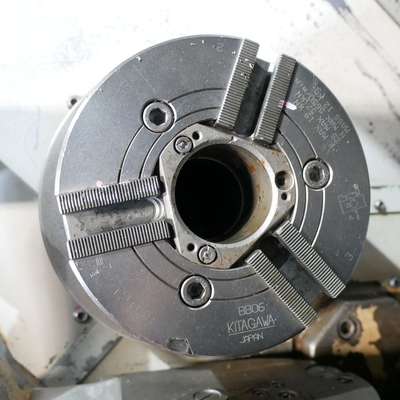

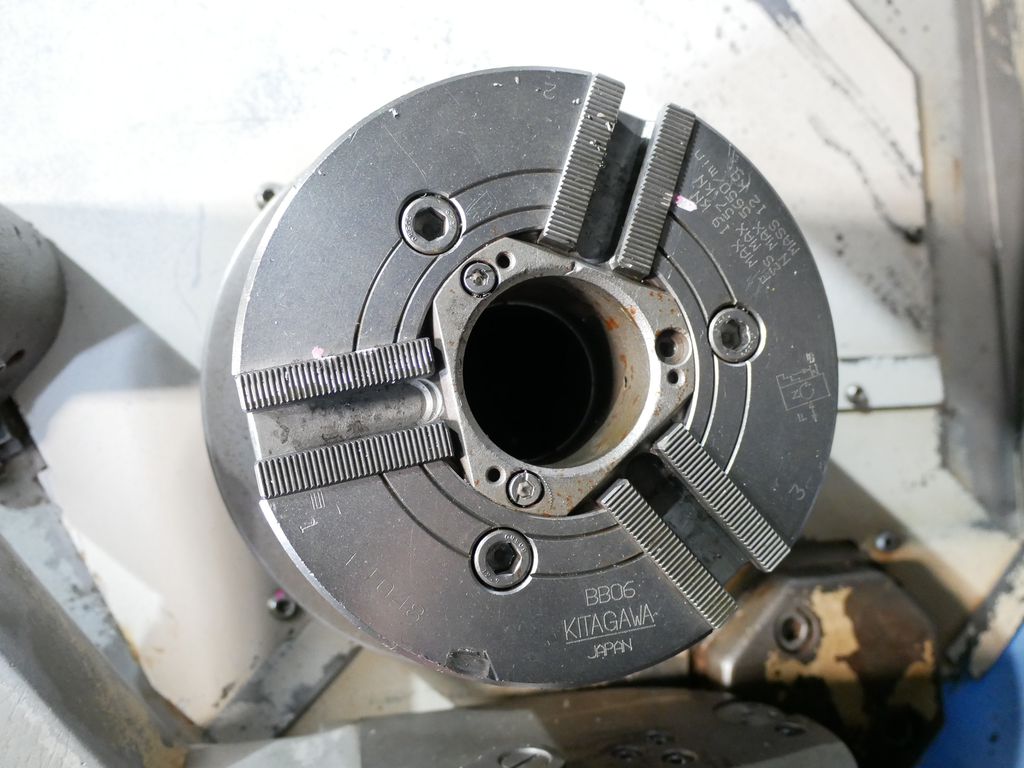

◆Chuck size (inch): 6
◆Maximum swing (mm): Φ550
◆Standard machining diameter (mm): Φ221
◆Maximum machining diameter (mm): Φ280 (Φ435)
◆Bar stock working capacity (mm): Φ51
◆Distance between spindle end and tool post end face (mm): 80-440
◆Maximum support load (including chuck) (N) (kgf): 245 (25) [Chuck work], 294 (30) [Shaft work]
◆Spindle
◆Spindle rotation speed (min-1): 35-6000
◆Acceleration/deceleration time (sec): 3.8
◆Spindle Shaft through-hole diameter (mm): Φ61
◆Motor output (25% ED/continuous rating) (kW) (HP): 7.5 (10) / 5.5 (7.4)
◆Maximum torque (N・m) (kgf・m): 162 (16.5)
◆Tailstock
◆Tail spindle hole type (MT): 4
◆Travel (tailstock/tail spindle) (mm): 275/95
◆Maximum thrust (N) (kgf): 1962 (200)

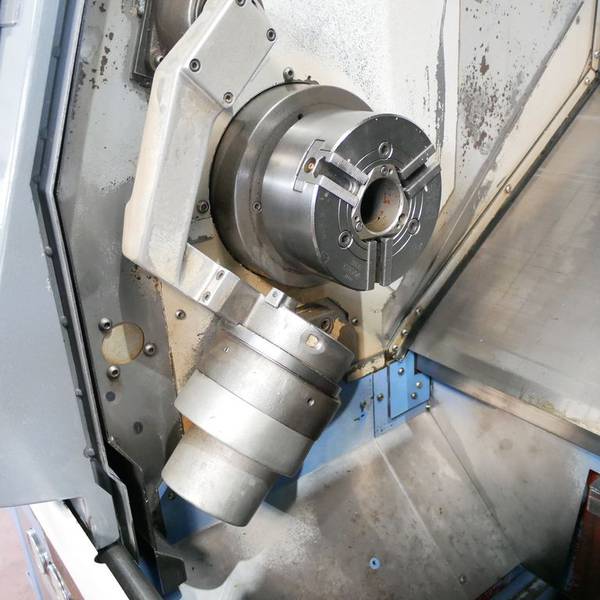

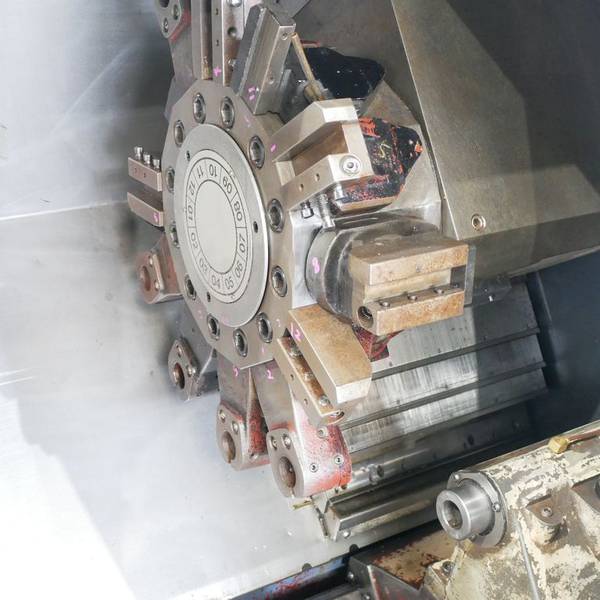

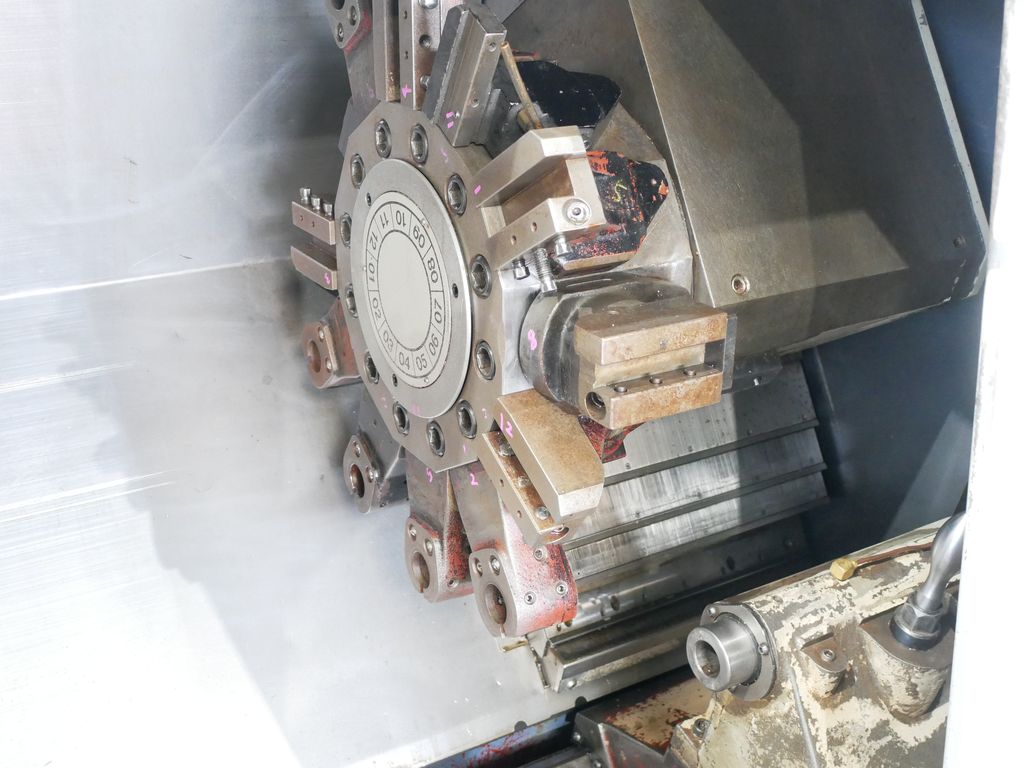

◆Tool post
◆Number of tools (pieces): 12 (Rotating tools can be mounted in all positions)
◆Tool size, external turning (mm): ☐20
◆Tool size, internal turning (mm): Φ32
◆Rotary Tool Drill (mm): MAX Φ16
◆Rotary Tool End Mill (mm): MAX Φ16
◆Rotary Tool Tap (mm): MAX M12
◆Indexing Time (one/full) (sec): 0.18/0.43
◆Mill Shaft Rotation Speed ​​(min-1): 25-4500 (OP: 35-6000)
◆Mill Shaft Motor Output (10-minute rating) (kW) (HP): 3.7 (5.0)
◆Mill Shaft Maximum Torque (N・m) (kgf・m): 35.6 (3.6) [6000 specification: 23.5 (2.4)]
◆Rapid Forward Speed ​​X/Z/Y ( m/min): 30/33/21
◆Fast traverse speed C (min-1): 400
◆Fast traverse time constant X/Z/Y (msec): 80/100/80
◆Travel distance X (mm): 185 (180+5)
◆Travel distance Z (mm): 360 (355+5)
◆Travel distance Y (mm): 80 (±40)
◆Center height (mm): 1020
◆Overall length (mm): 2285
◆Overall width (mm): 1590
◆Overall height (mm): 1850
◆Floor space (m²): 3.63

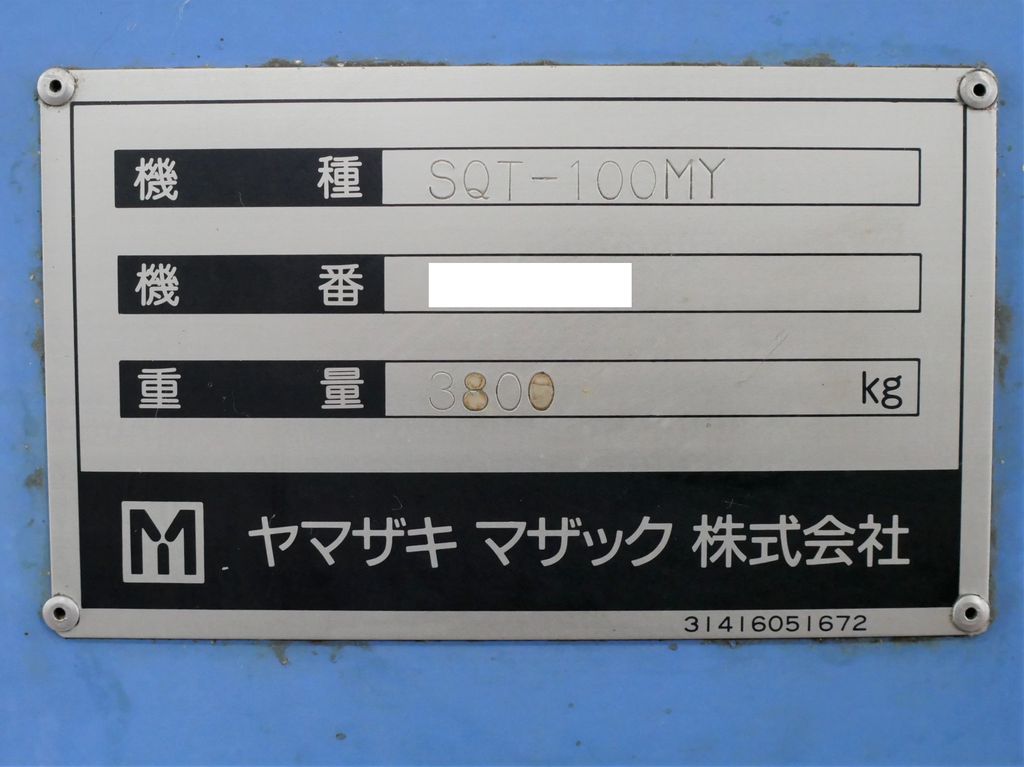

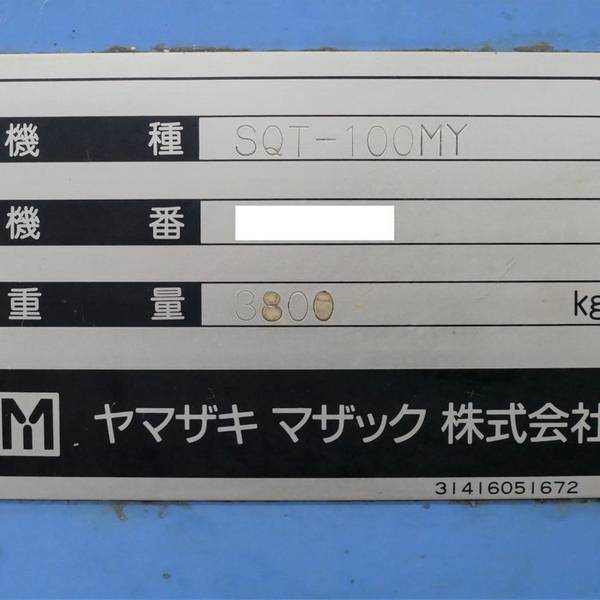

◆Machine weight (kg): 3800

✤In case of discrepancies between specifications and the actual product, the actual product will take precedence.
