ミツトヨ | 2016

CNC 3D measuring machine (CRYSTA-Apex S9106)

  • 分類: 測定器
    メーカー: ミツトヨ
  • 保管場所: 現場
    型式: CRYSTA-Apex S9106
  • 年式: 2016
    管理番号: 2020H007
Specification

◆ Measuring range: 900 × 1000 × 600mm
◆ Minimum display amount: 0.0001mm (0.1μm)
◆ Measurement accuracy (temperature environment 1)
 時 When using TP200: Length measurement error E0.MPE = 1.9 3L / 1000μm
 E150.MPE = 2.4 3L / 1000μm
 Repeatability R0.MPL = 1.9μm
 Single stylus shape error PFTU.MPE = 1.9μm
◆ Drive speed: 519mm / s, measurement speed: 8mm / s
◆ Drive acceleration: 2309mm / s ^ 2
◆ Real-time temperature compensation function as standard
◆ Joystick J / S-BOX M Type A
 (With front / left / right direction change function)

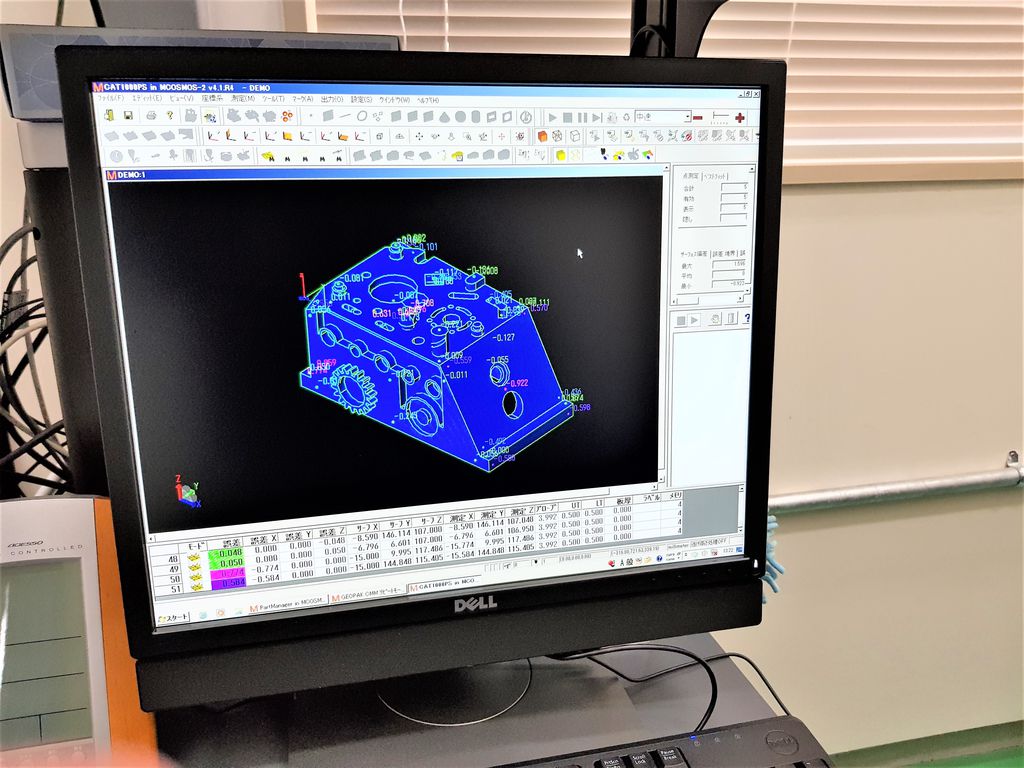

◆ Data processor ◆ MCOSMOS-2 V4.1
◆ PH10MQP R system (S) domestic
◆ TP200 set
 TP200 probe
 Stylus module (standard)
 Stylus φ4 L10mm
 Stylus φ6 L10mm
 Stylus φ4 L20mm
 Extension 40mm (carbon)
 Extension 50mm (carbon)
◆ Standard MBφ20 B (with Japanese documents)
◆ Air dryer set ◆ AC100V specification
◆ Micro mist separator set

Photo (14)
