Specification
◆ Swing on the bed: 1000mm
◆ Swing on the cut-off: 1400mm
◆ Swing on the carriage: 650mm
◆ Maximum distance between hearts: 4100mm
◆ Center height from the floor: 1160mm
◆ Bed width: 750mm
◆ Bed length: 6520mm
◆ Spindle speed: 6 ～ 590rpm
◆ Spindle through hole: 80mm
◆ MT No.6
◆ Body weight: 13000kg

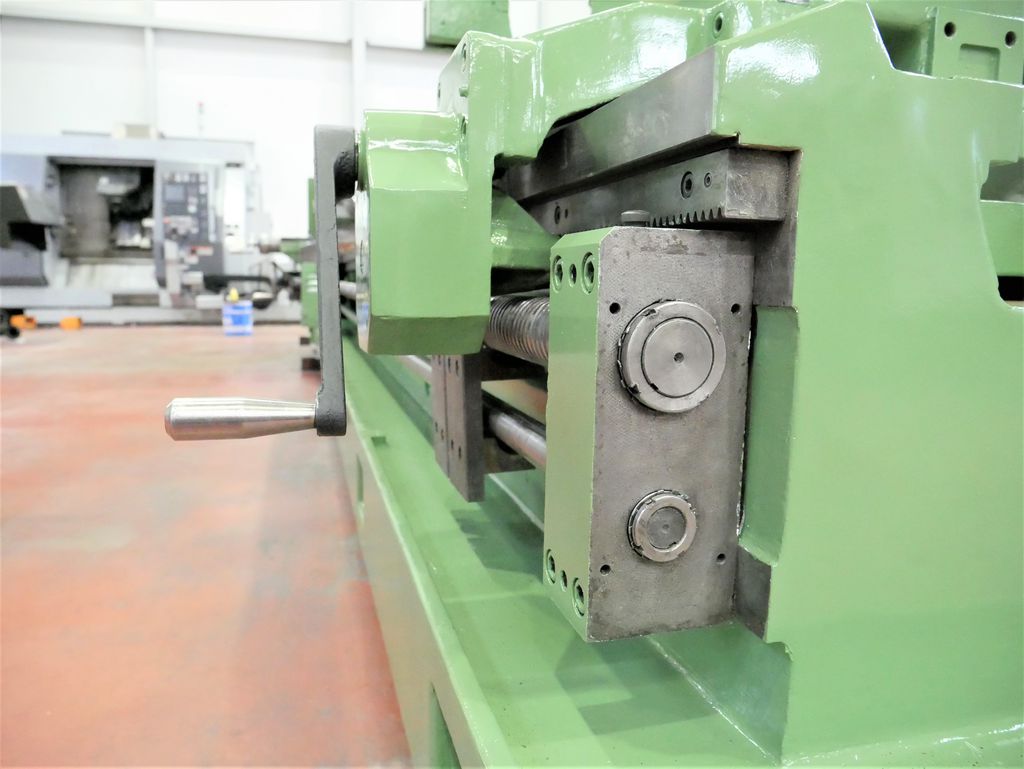

Photo (18)
