Horizontal machining center (NH5000DCG/40)
k-smk.co.jp/en/machines/20301109/
| 分類 | Horizontal Machining Center |
|---|---|
| メーカー | Mori seiki |
| 保管場所 | Chubu Machine Center |
| 型式 | NH5000DCG/40 |
| 年式 | 2011 |
| 管理番号 | 20301109 |
◆MSX-701IV
◆XYZ:730×730×850
◆2APC
◆Height from floor to pallet work surface:1200

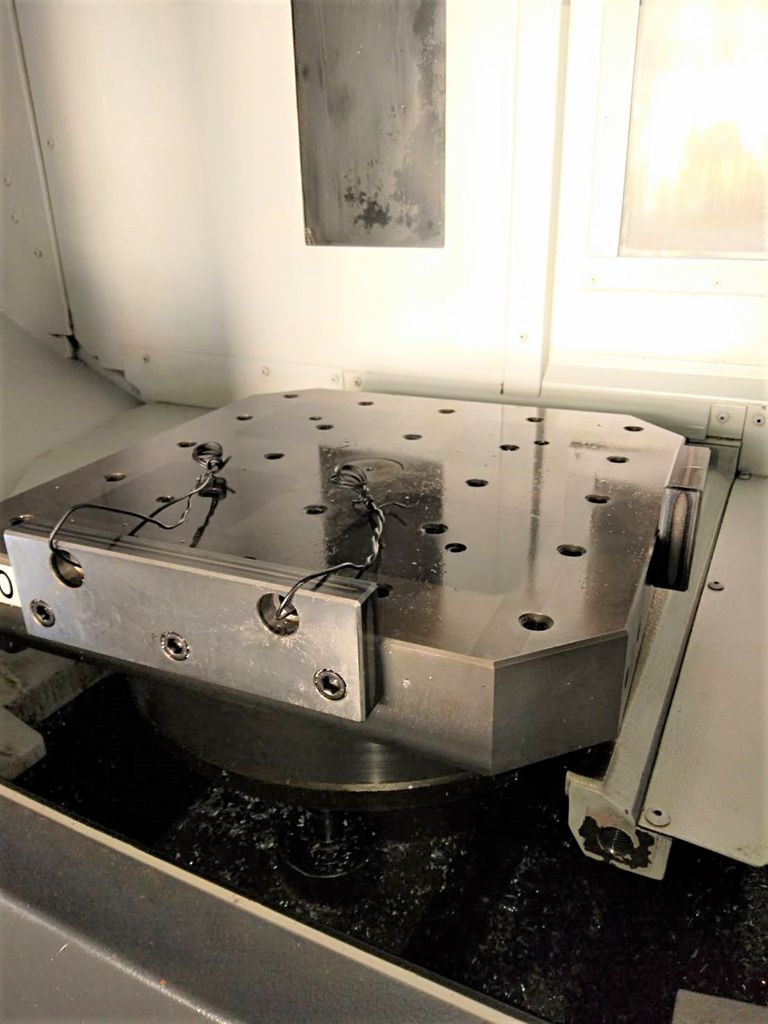

◆Pallet work surface:500 × 500
◆Maximum Spindle Speed:14000
◆Spindle bearing inner diameter:65
◆BT40
◆ATC:60
◆Required floor space:2725 × 4628
◆Machine height:3012
◆Mass:12900kg
✤If there is a discrepancy between the specifications and the actual product, the actual product will prevail.
※Optional table indexing type
※Chip conveyor (back exit)
※Center through 1.5MPa
※In-flight measuring device (table side)
※Scale feedback
※AI contour control II
✤If there is a discrepancy between the specifications and the actual product, priority will be given to the actual product.
