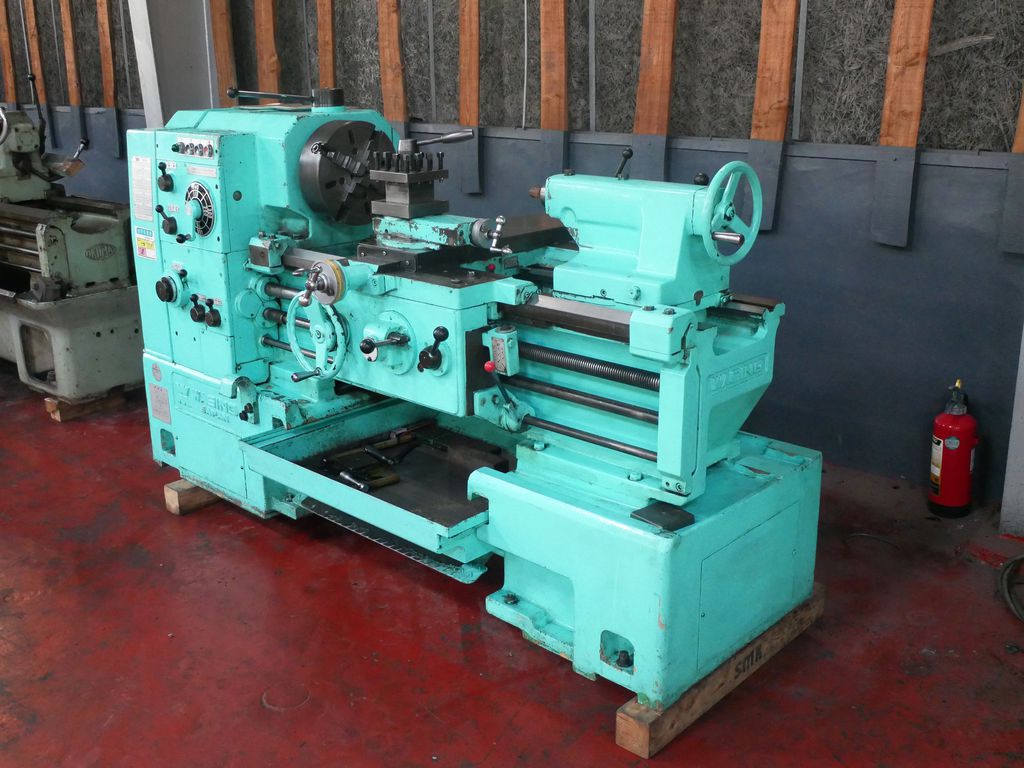

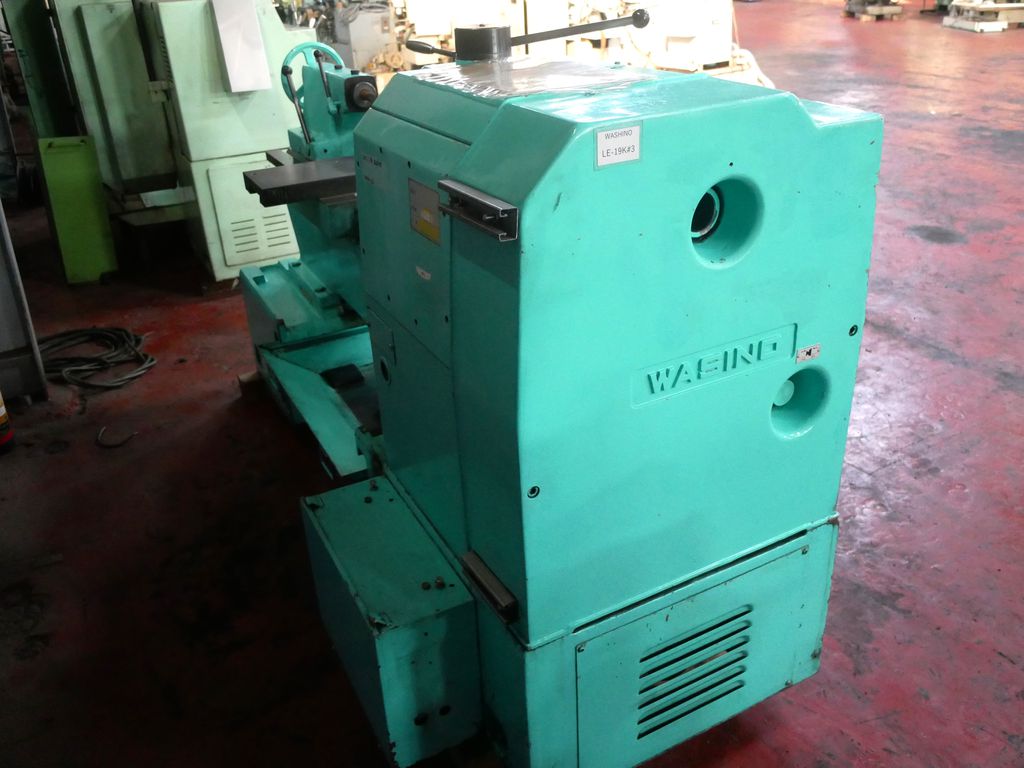

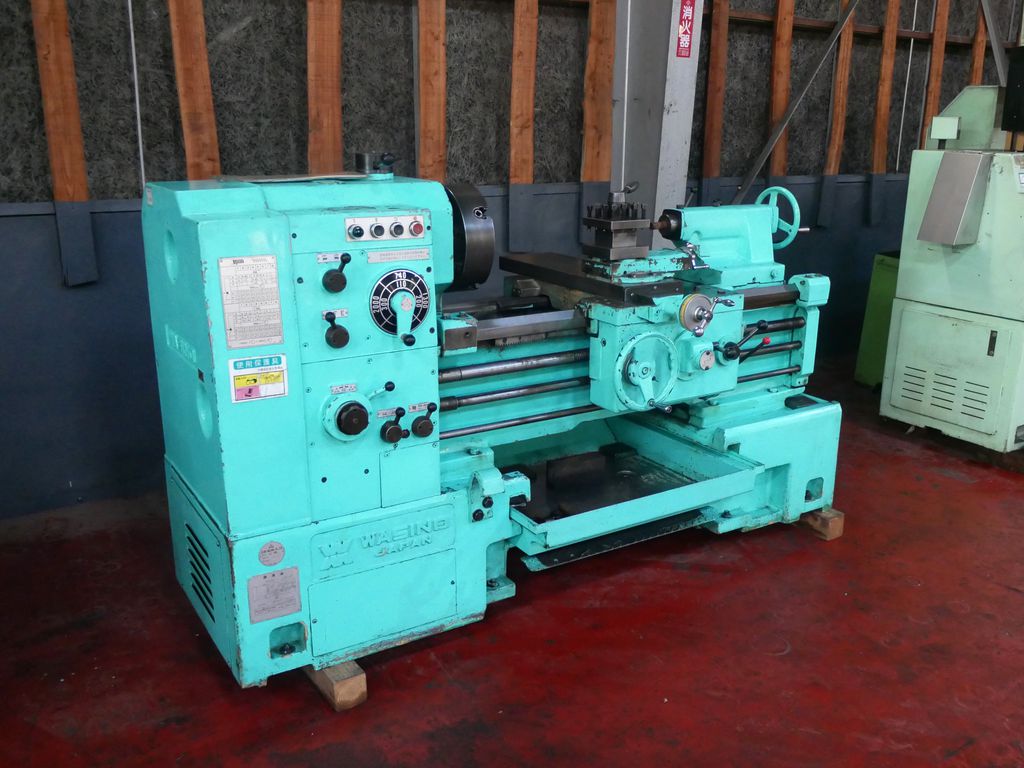

General purpose lathe (LE-19K)
k-smk.co.jp/en/machines/20201046/
この商品情報に写真は見つかりませんでした。
| 分類 | Lathe |
|---|---|
| メーカー | Washino |
| 保管場所 | Head office. Machine Plaza |

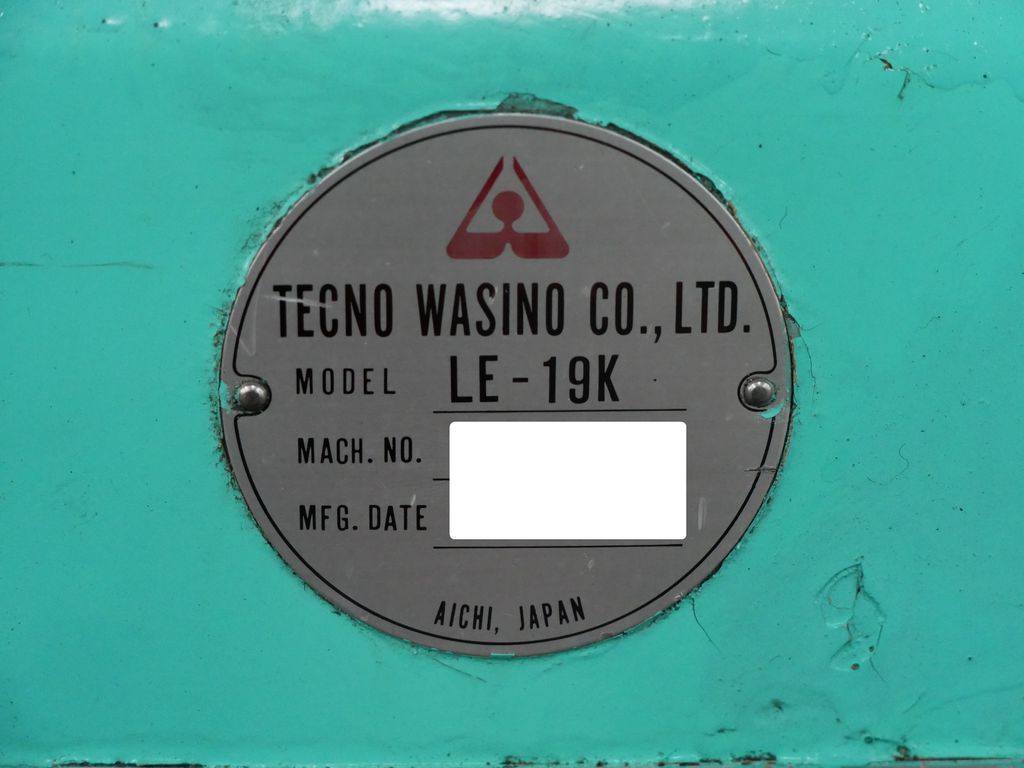

| 型式 | LE-19K |
| 年式 | 1996 |
| 管理番号 | 20201046 |
◆Swing above bed: 470
◆Swing above bed (between face plate and 180mm): 520
◆Swing above carriage: 240
◆Center distance: 800
◆Center height from floor: 1020
◆Spindle end: A₁ No.6
◆Tapered hole: No.6
◆Through hole diameter: 54
◆Center: No.4

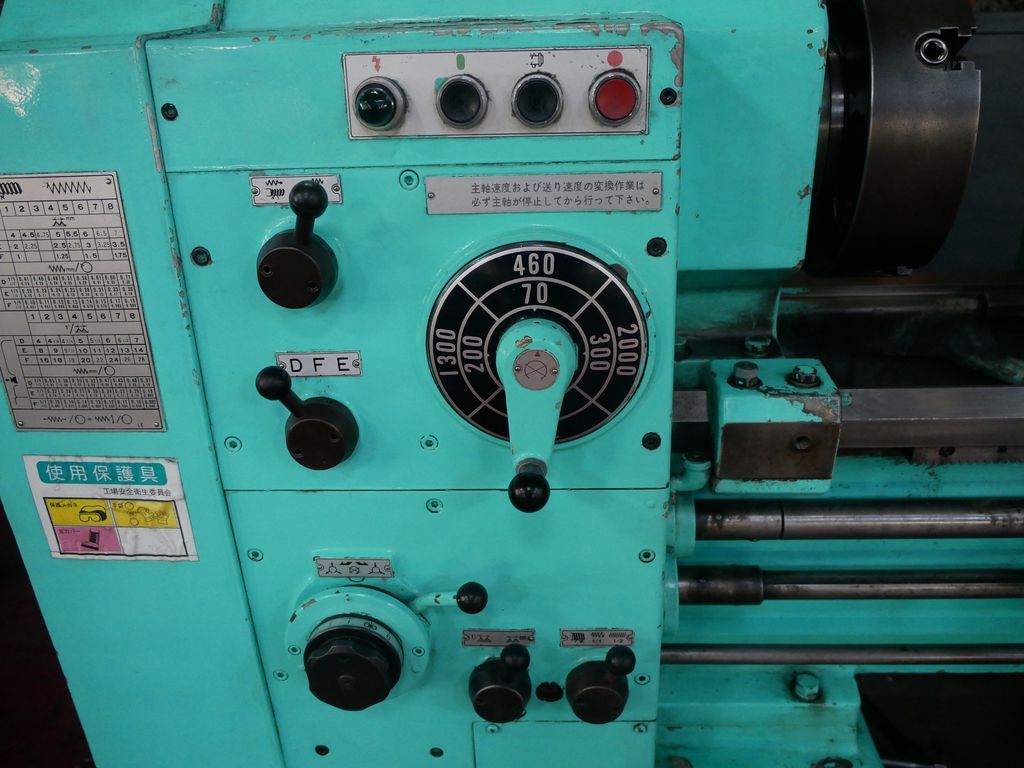

◆Number of rotation speed changes: 8 stages
◆Rotation speed: 50-1500rpm
◆Travel of carriage: 760
◆Travel of horizontal feed table: 310
◆Travel of blade feed table: 140
◆Number of vertical/horizontal feed changes: 32
◆Vertical/horizontal feed amount: 0.05-0.71
◆Vertical feed handle scale: 1 mark 0.20
◆Horizontal feed handle scale: 1 mark 0.02
◆Blade feed handle scale: 1 mark 0.02
◆Machine size: W2250×D1110×H1300
◆Net weight: 2000kg
✤If there is a difference between the specifications and the actual product, the actual product will take priority.
