| 分類 | NC Lathe |
|---|---|
| メーカー | DMG Mori Seiki |
| 保管場所 | Head office. Machine Plaza |

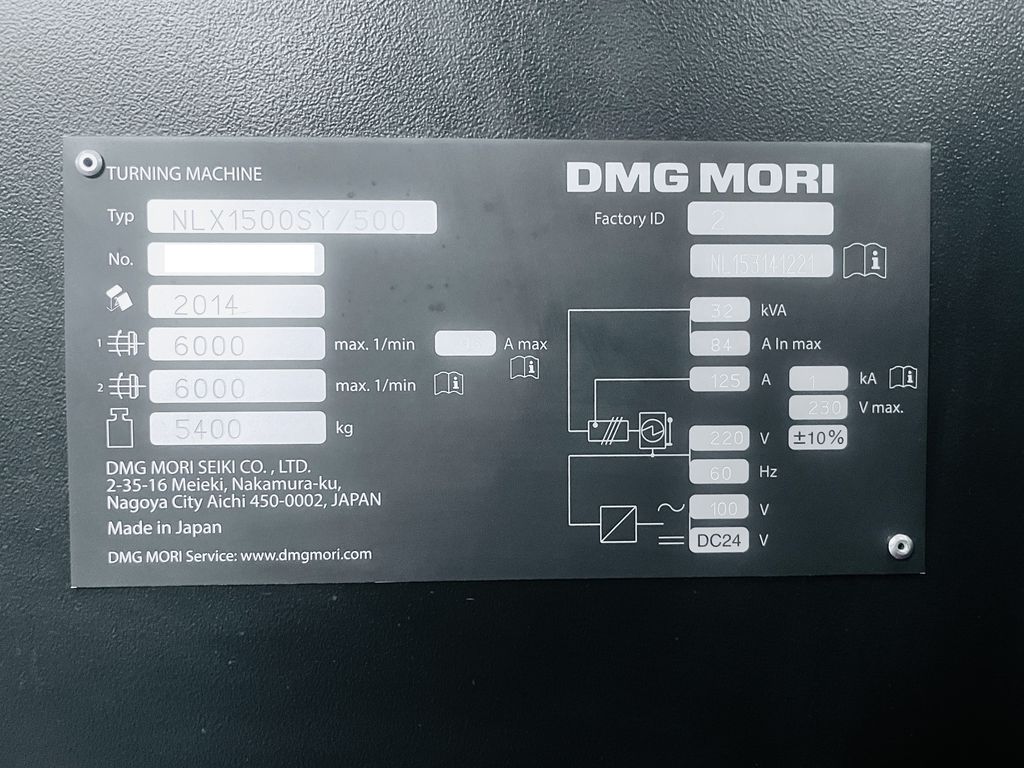

| 型式 | NLX1500SY/500 |
| 年式 | 2014 |
| 管理番号 | 20102099 |
◆Controller: Mitsubishi M-730UM

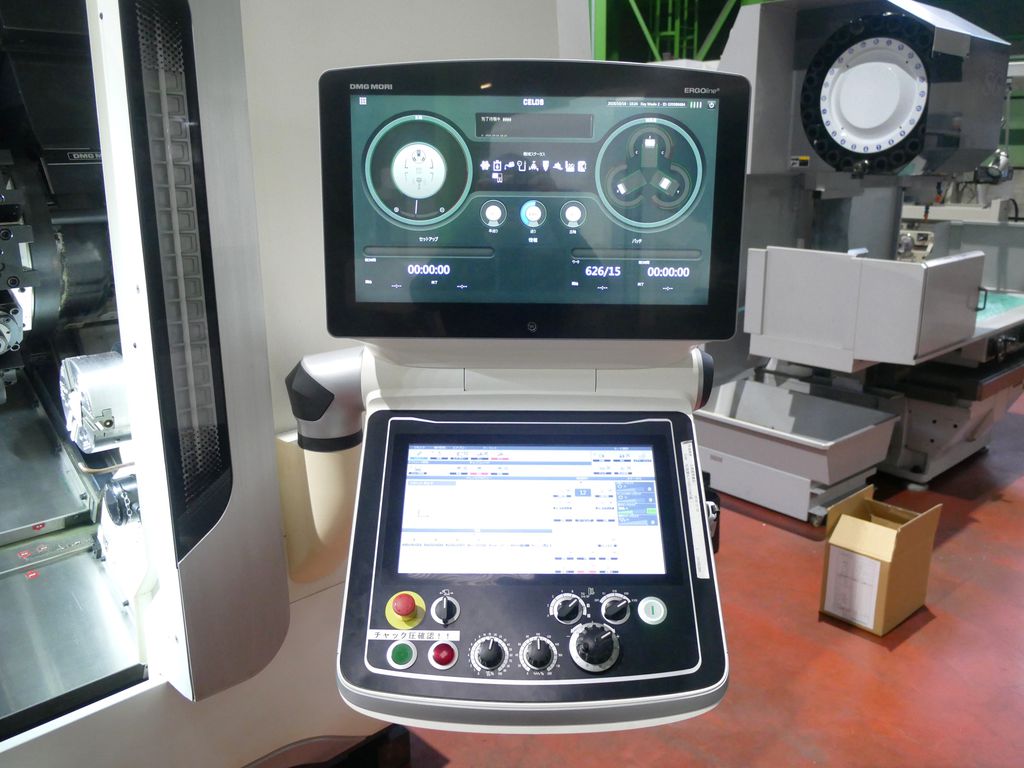

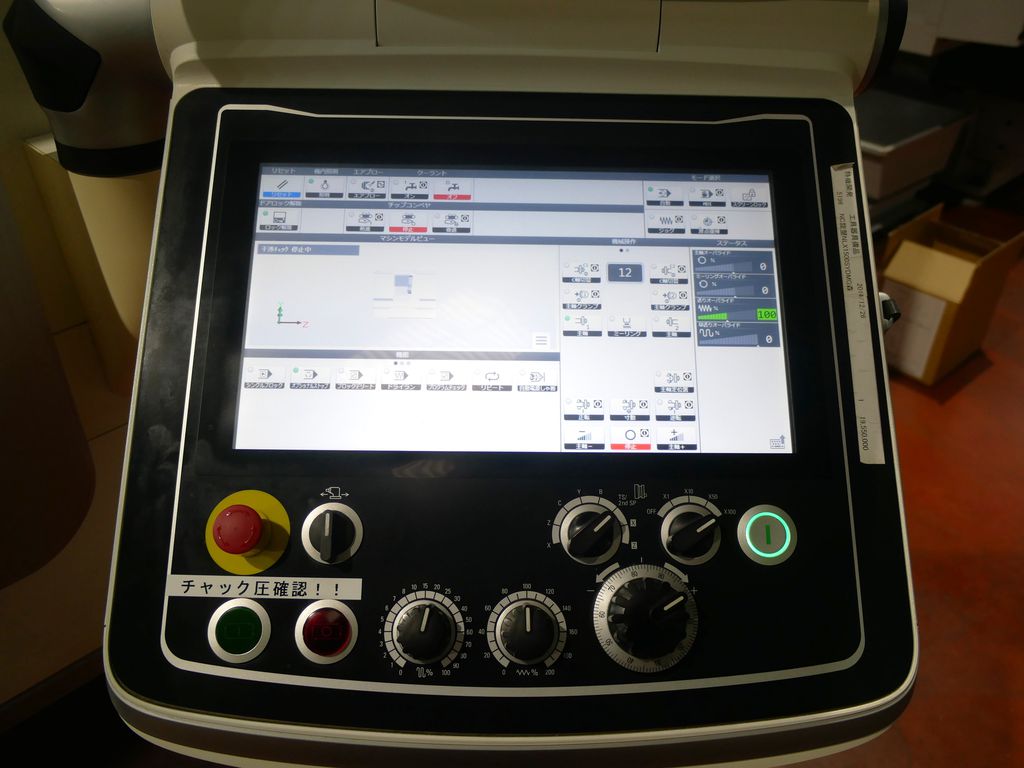

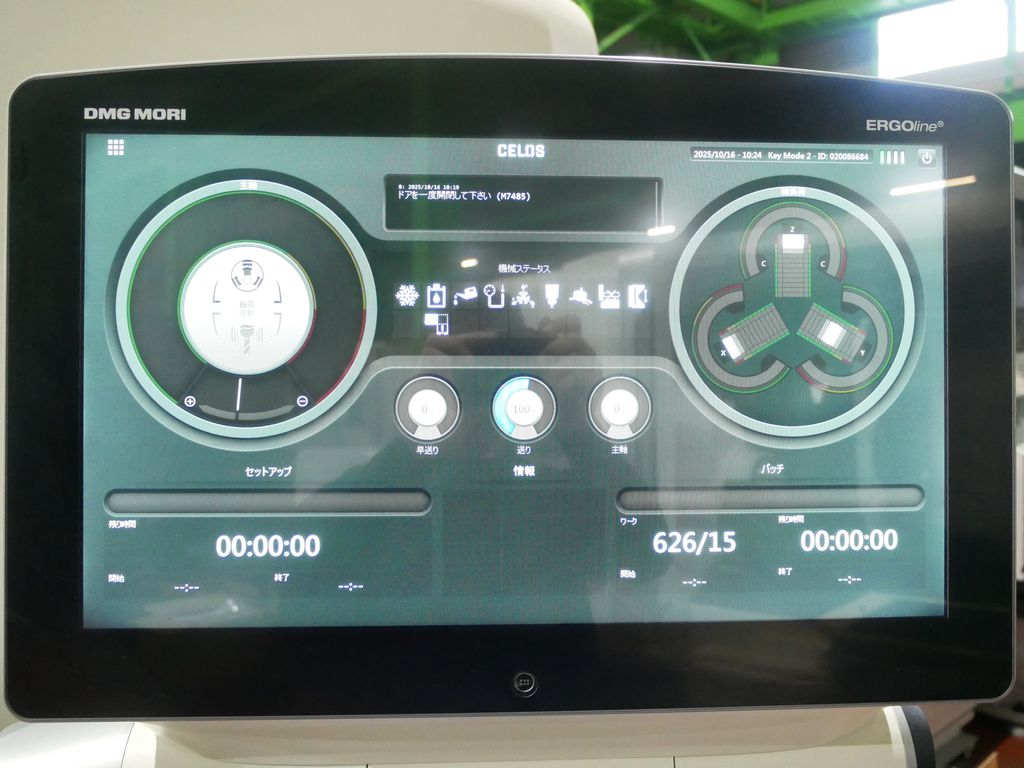

◆Operation Panel Type: ERGO line Touch (21.5 x 15.6)
◆Spindle Speed: 6000 min-1
◆Spindle Through-hole Diameter: Φ61 mm

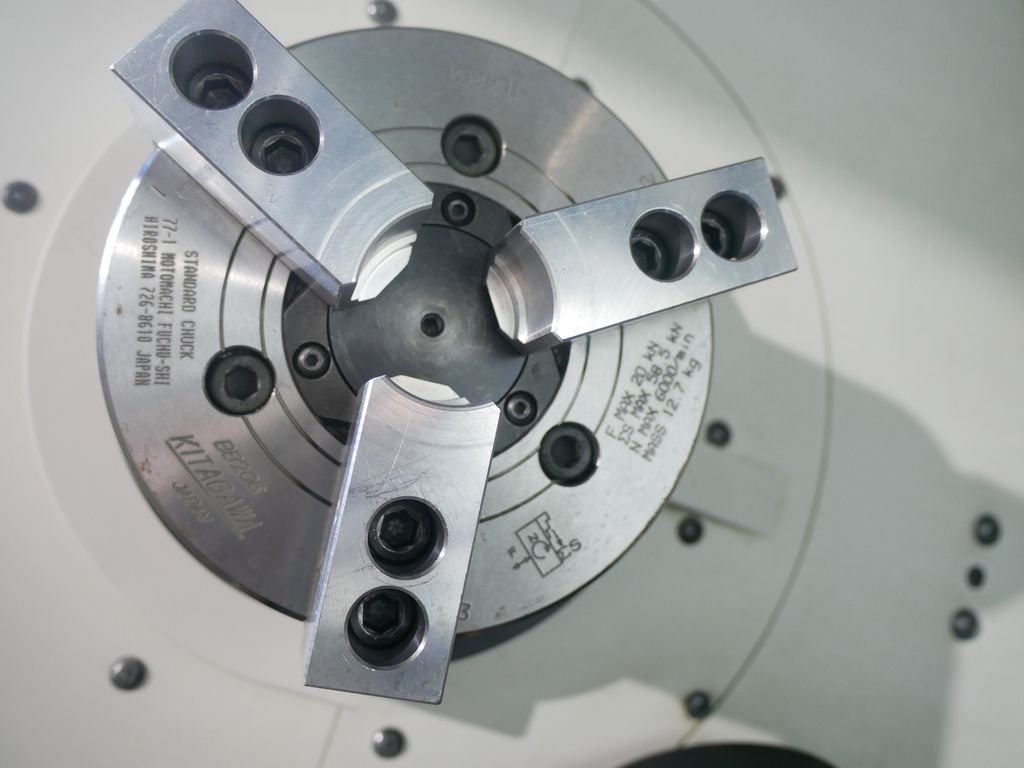

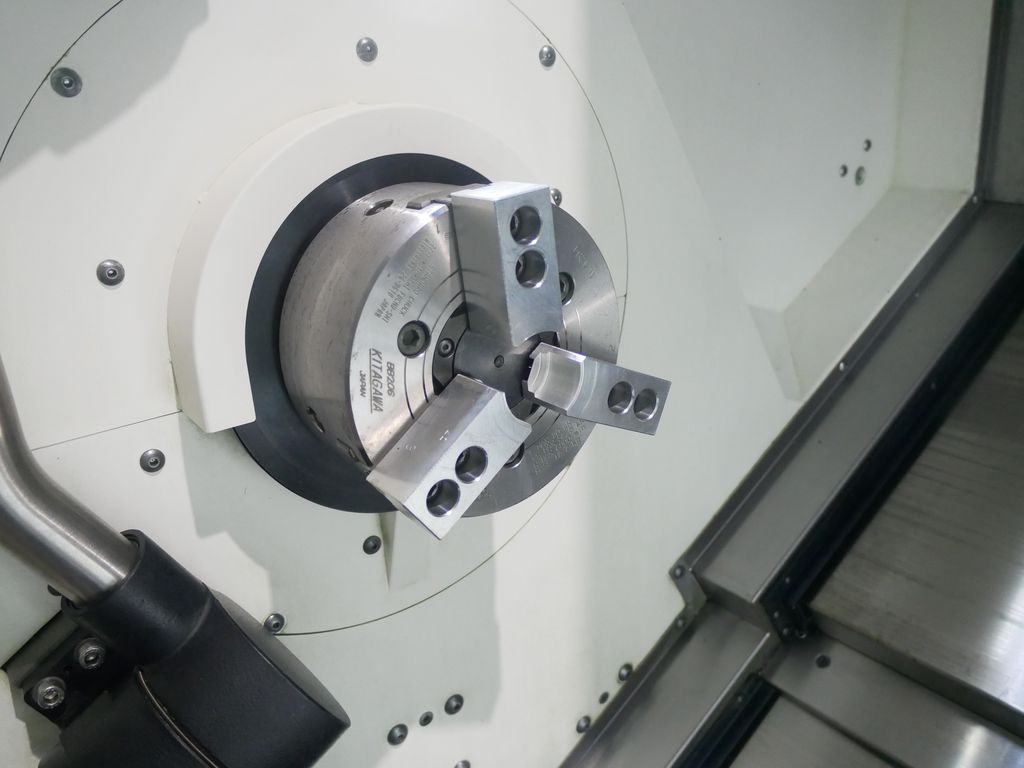

◆Spindle Chuck Type: Kitagawa Hollow 6-inch BB-206
◆Spindle Orientation: Yes (No Lock)
◆Spindle Rigid Type: Yes
◆Spindle Air Purge: Yes
◆Spindle Output: Standard (11/7.5 kW)
◆Spindle Speed: 6000 min-1
◆Spindle Through-hole Diameter: Φ43 mm

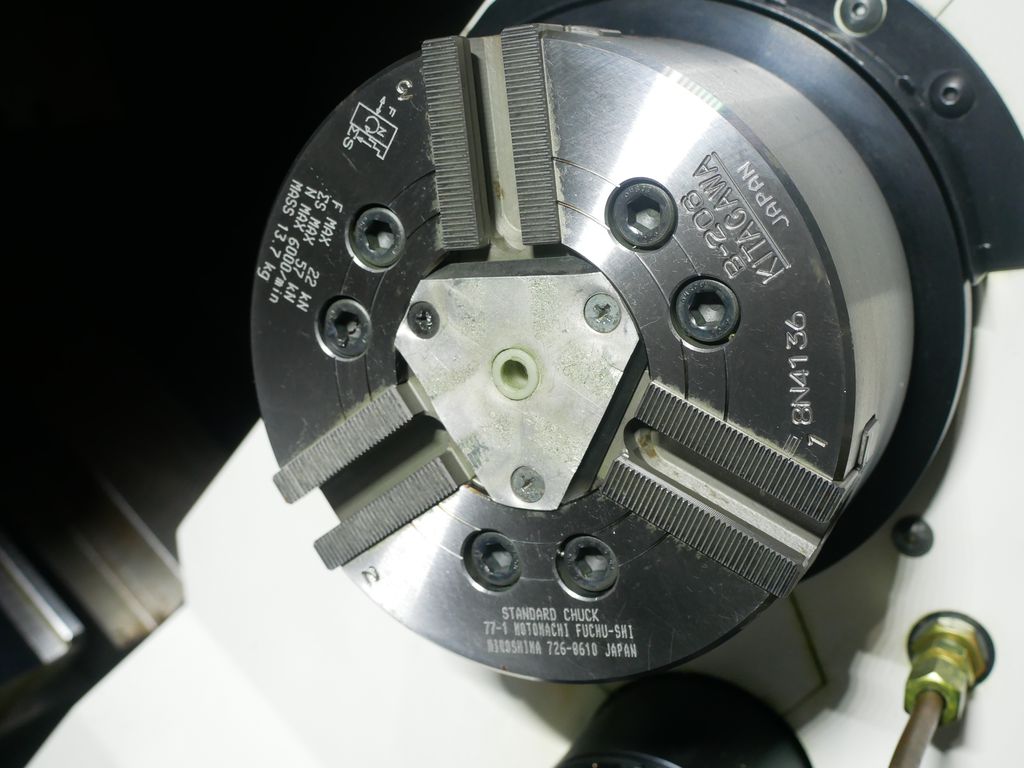

◆Spindle Chuck Type: Kitagawa Hollow 6-inch B-206
◆Spindle 2 Chuck Cylinder Type: Solid 6-inch
◆Spindle 2 Chuck Cylinder Manufacturer: Toyowa
◆Spindle 2 Chuck Cylinder Stroke Confirmation: Stroke End Detection

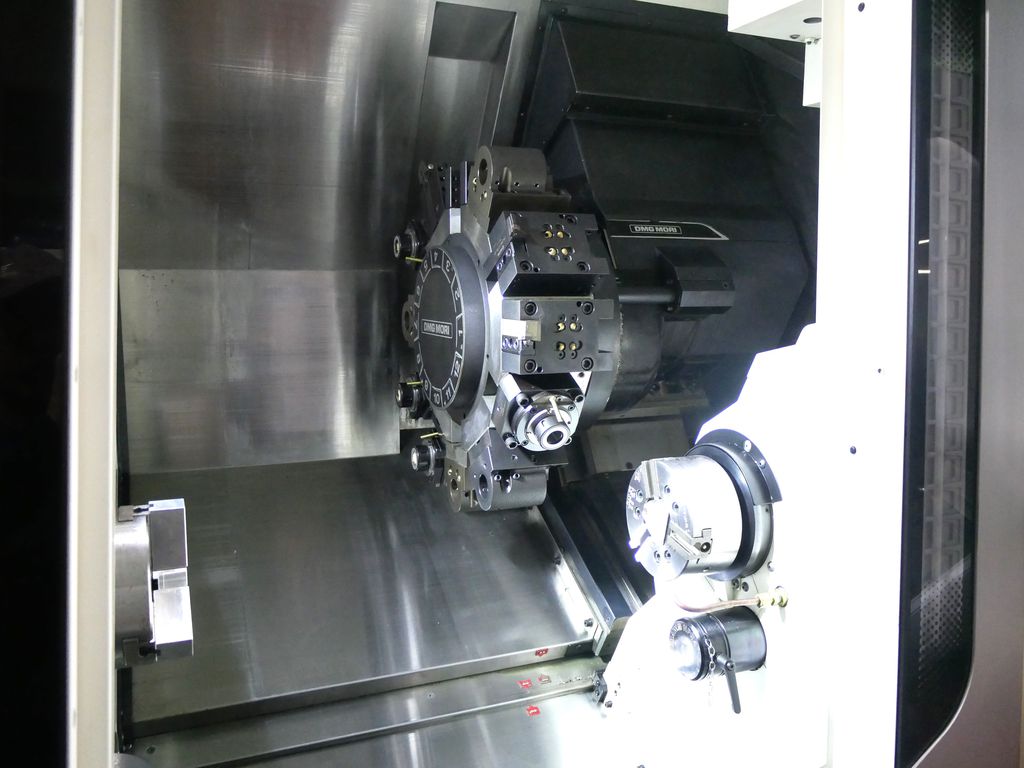

◆Turret Y-Axis: Yes

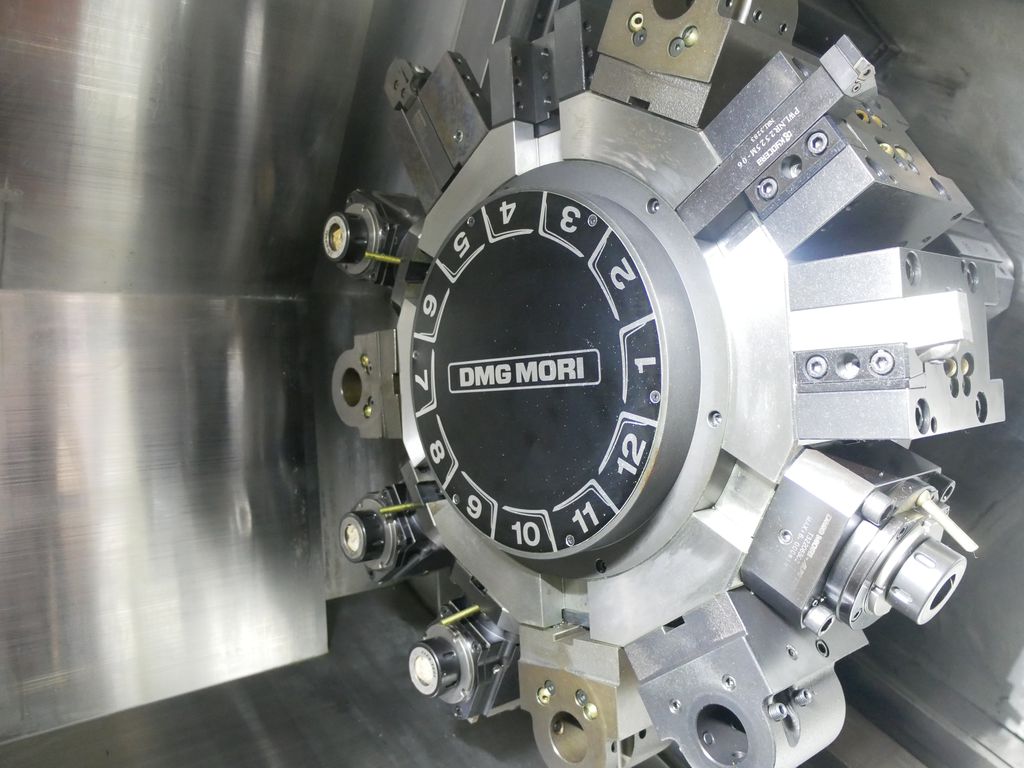

◆Turret Shape: 12-Point
◆Turret Measuring Function: Yes
◆Turret Rotary Tool Spindle Output: Standard
◆Turret Rotary Tool Spindle Speed: 10,000 min-1
◆Turret Rotary Tool Spindle Torque: Standard
◆Turret Tool Mounting Method: Bolt Tightening
◆Turret External Rotary Tool Overhang: 100 mm (Y-axis stroke limited)
◆Turret Manufacturer: In-house

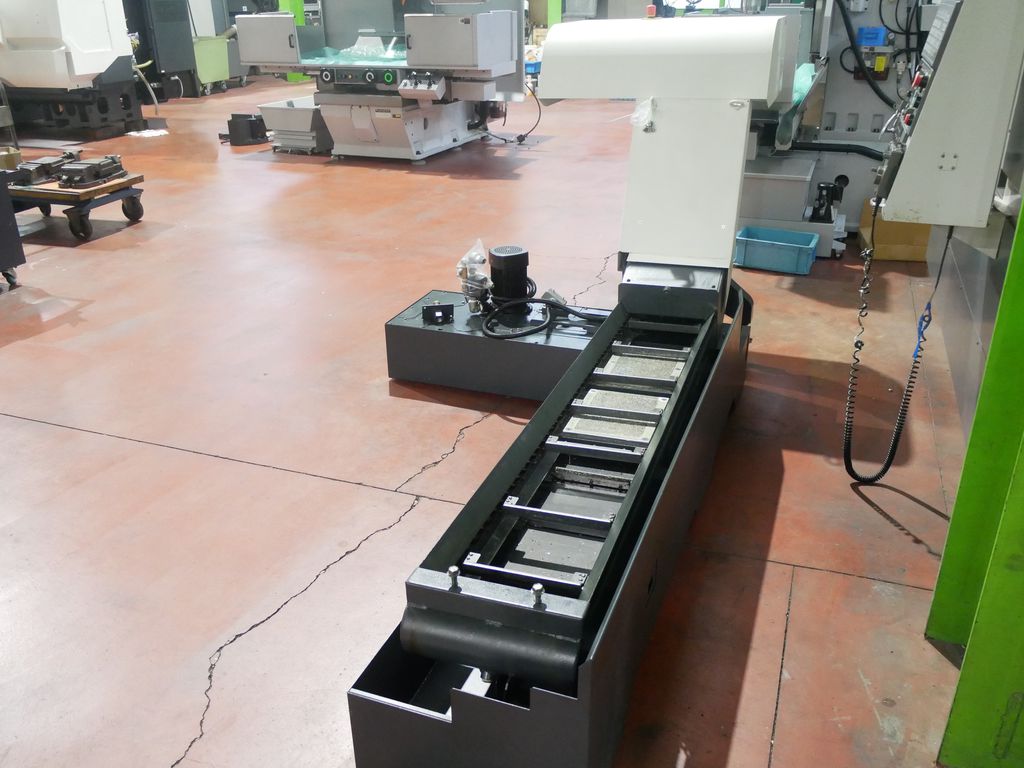

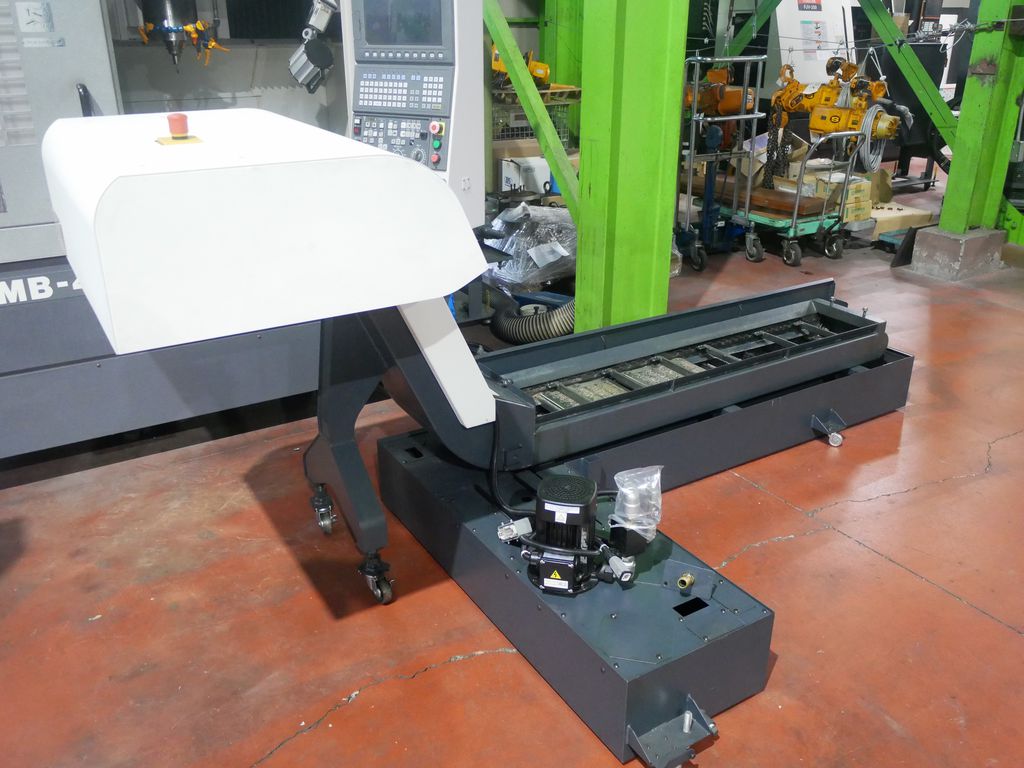

◆Chip Conveyor: Yes

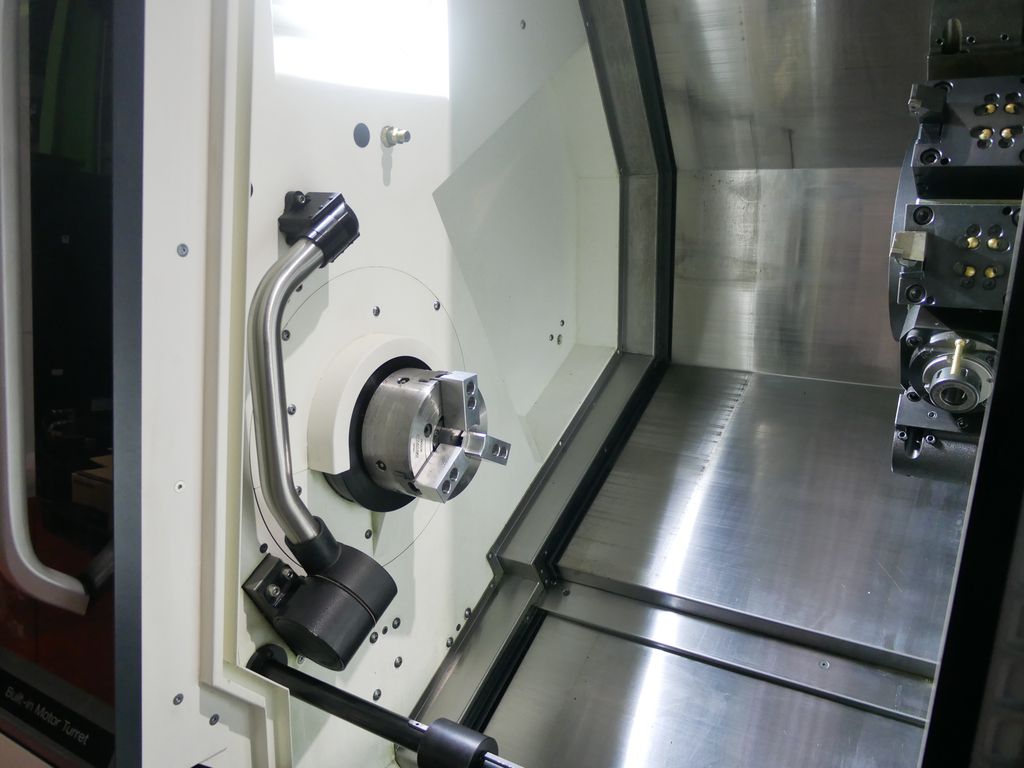

◆Spindle 1 In-Machine Tool Presetter: Manual (Lift Type)
◆Spindle 2 In-Machine Tool Presetter: Manual (Detachable Type)

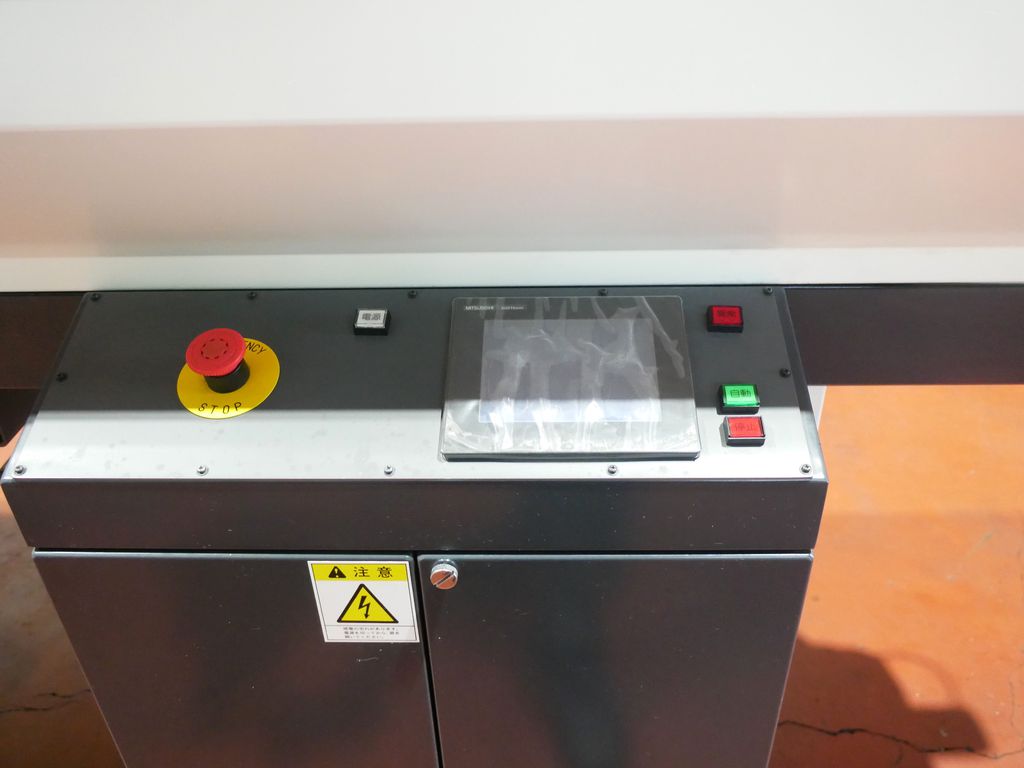

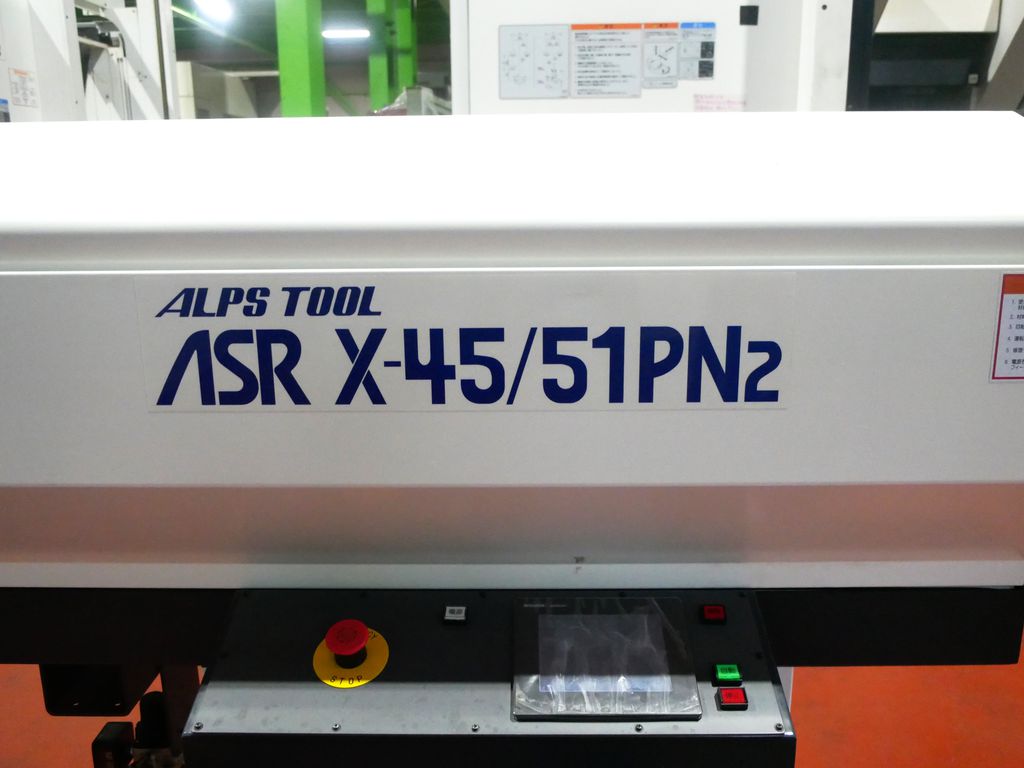

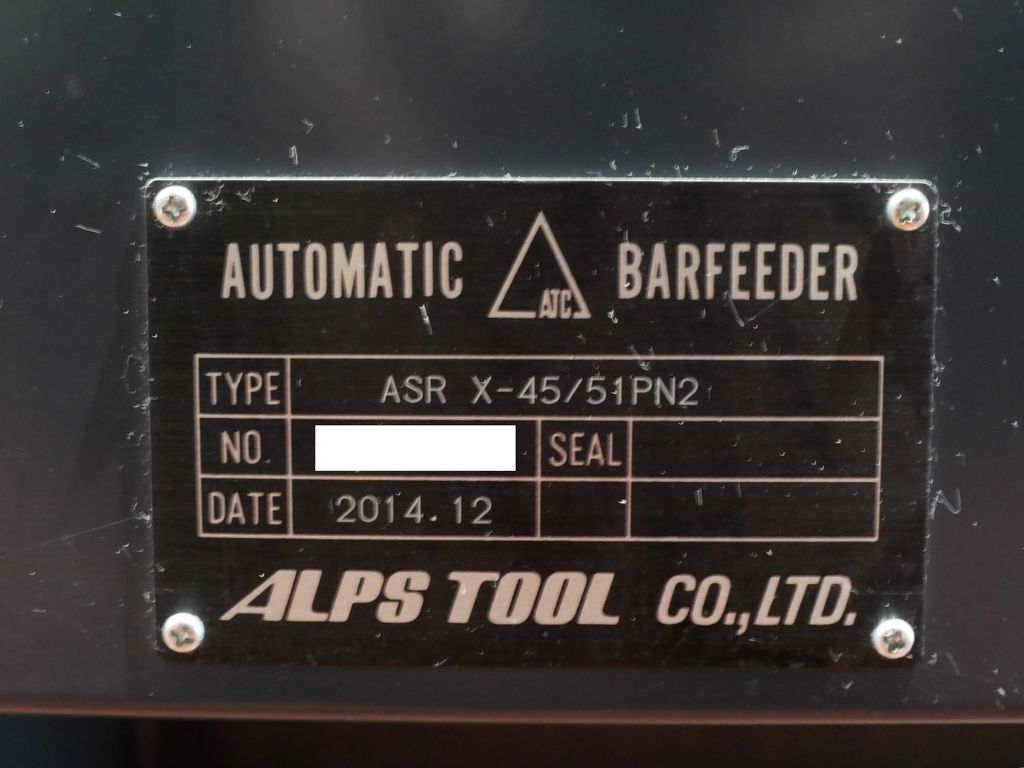

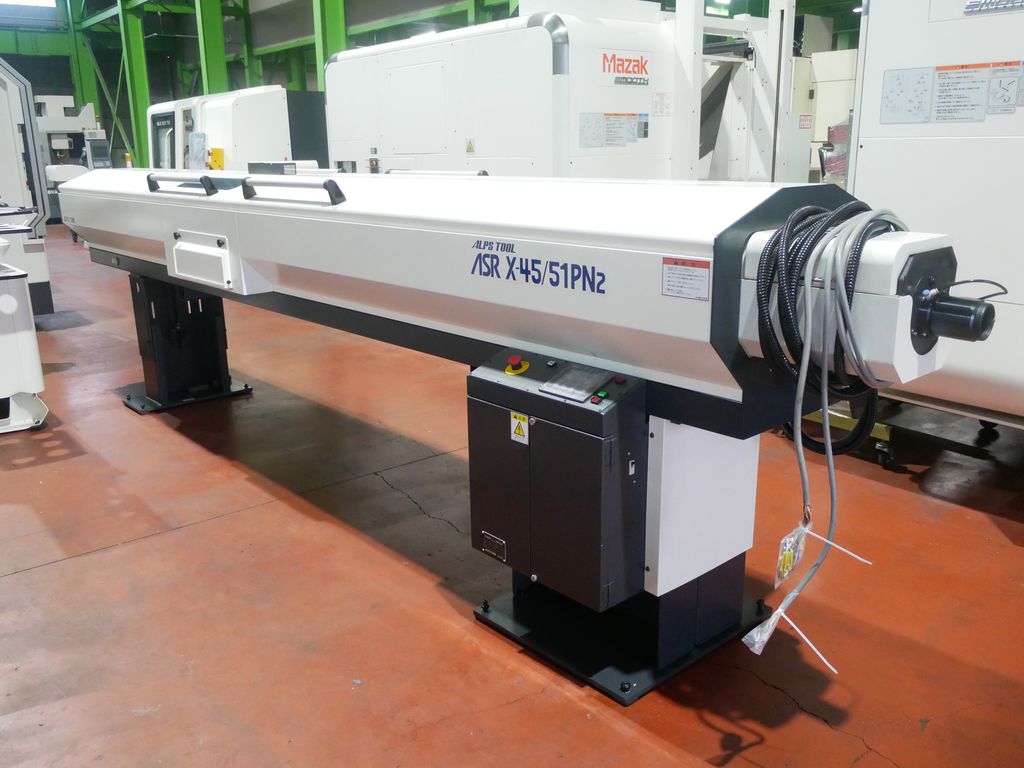

◆Bar Feeder: Alps ASR X-45/51PN2
✤If there are any discrepancies between the specifications and the actual product, the actual product will take precedence.
