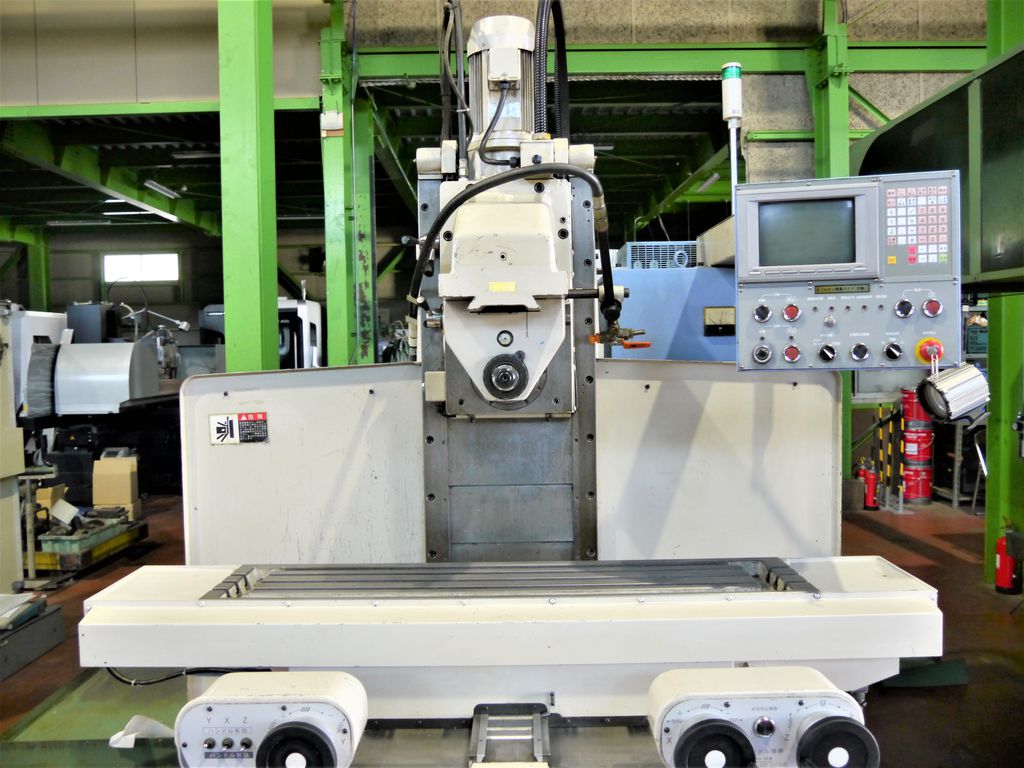

NC horizontal milling cutter (RRM-2P)
k-smk.co.jp/en/machines/20302009/
分類 | NC milling machine |
---|---|
メーカー | OKK |
保管場所 | Head office. Machine Plaza |
型式 | RRM-2P |
年式 | 1998 |
管理番号 | 20302009 |
◆ XYZ: 720 x 300 x 450
◆ Distance from the front of the column to the end of the spindle: 118
◆ Table work surface: 1310 x 300
◆ Allowable mass of workpiece: 500kg
◆ Spindle rotation speed: 60-1800min-1
◆ JIS B6101 No.50
◆ Bearing inner diameter: φ88.9
◆ Machine dimensions: W2520 × D1697 × H2410mm
◆ Weight: 3,000kg
