NC lathe (SL-603B/2000)
k-smk.co.jp/en/machines/20102002/
| 分類 | NC Lathe |
|---|---|
| メーカー | Mori seiki |
| 保管場所 | Head office. Machine Plaza |
| 型式 | SL-603B/2000 |
| 年式 | 2009 |
| 管理番号 | 20102002 |
[Video 📹 Yes! Please check from the following. ]
◆ MSX-500Ⅲ (FANUC21i-TB)
◆ 32 inch chuck (φ800) * 4 hand-tightened claws
◆ Swing on the bed: 994mm
◆ Swing on cross slide: 733mm
◆ Distance between centers: 2300mm
◆ Maximum processing diameter: 900mm
◆ Maximum processing length: 2000mm
◆ XZ: 485 x 2150
◆ Main shaft through hole diameter: 185mm
◆ Spindle bearing inner diameter: 260mm

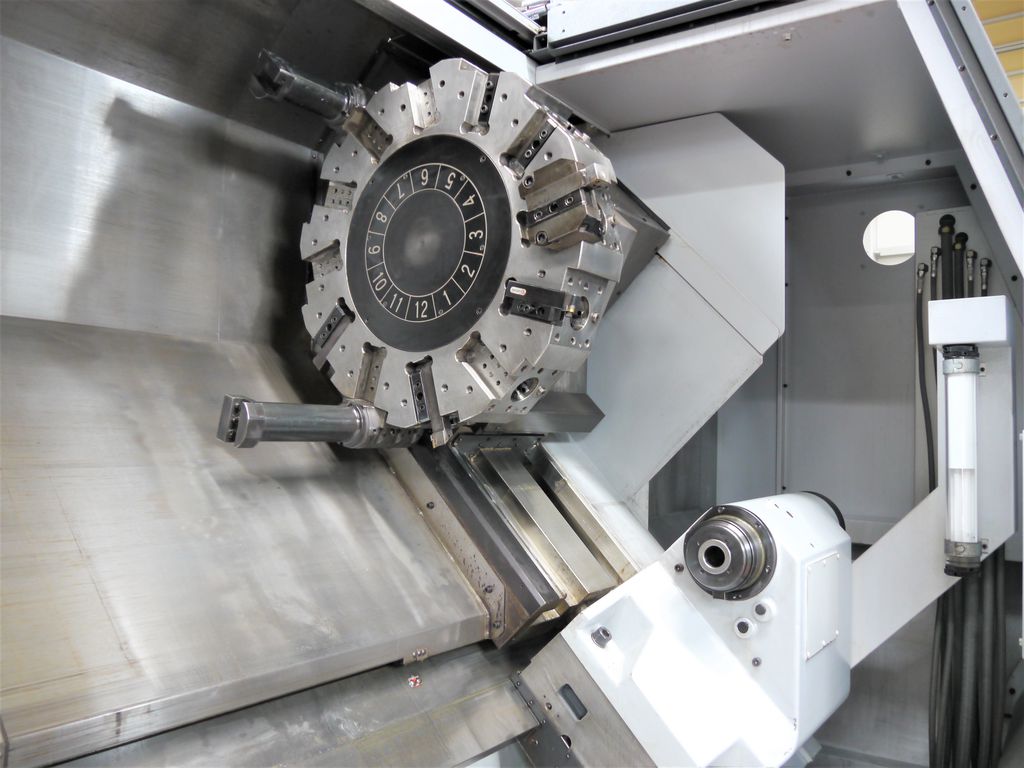

◆ Tool stand: V12
◆ Pushing platform movement amount: 2100mm
◆ Machine size: W6993 × D3471 × H2911mm
◆ Mass: 18,500 kg
※Chip conveyor
* With dialogue function
* No relocation detection
* No tool presetter
